Specifications

Part Number SE-84P

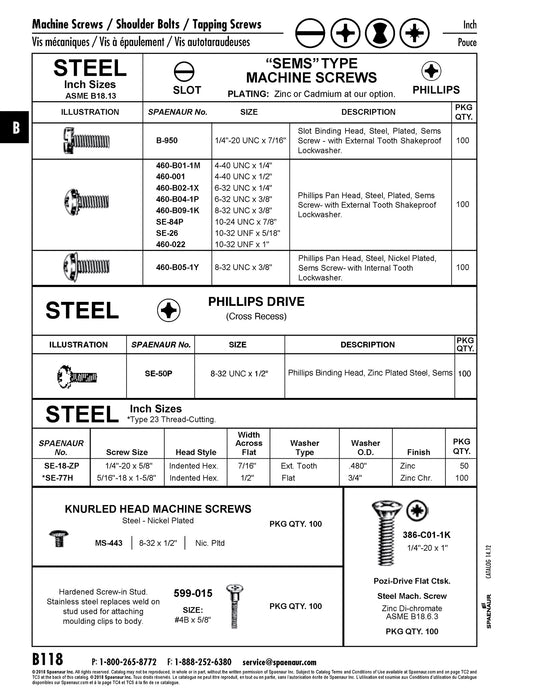

Catalog Page(s) B118
System of Measurement Imperial
Head Type Pan Head with External Tooth Shakeproof Lockwasher Head
Drive Type Phillips
Thread Size #10-24
Thread Standard UNC
Length 7/8"
Material Steel
Finish Electro Zinc Plated or Cadmium Plated
Standard ASME/ANSI B18.13
End Type Type 1 End
Head Diameter/Width Across Flats 0.357"-0.373"
Head Height 0.122"-0.133"
