"Sems" Machine Screw, Phillips Pan Head With Ext Tooth Lockwasher, #10-32 X 5/8" X 3/8" Washer Od, Low Carbon Steel Zinc Plated by Spaenaur Inc.

*Representative images - please refer to the product specifications for exact product information

Part Number: SE-26

"Sems" Machine Screw, Phillips Pan Head With Ext Tooth Lockwasher, #10-32 X 5/8" X 3/8" Washer Od, Low Carbon Steel Zinc Plated

Availability:
To view pricing and availability please either log in with a registered email address or register a free account.

Specifications

Part Number SE-26

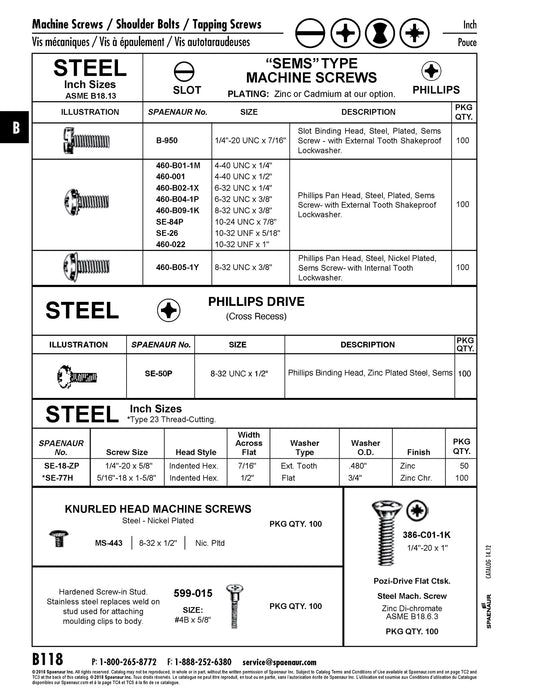

Catalog Page(s) B118
System of Measurement Imperial
Head Type SEMS Pan Head
Drive Type Phillips
Thread Size #10-32
Thread Standard UNF
Length 3/8"
Material Steel
Finish Electro Zinc Plated or Cadmium Plated
Standard ASME/ANSI B18.13
End Type Type 1 End
Head Diameter/Width Across Flats 0.357"-0.373"
Head Height 0.122"-0.133"
