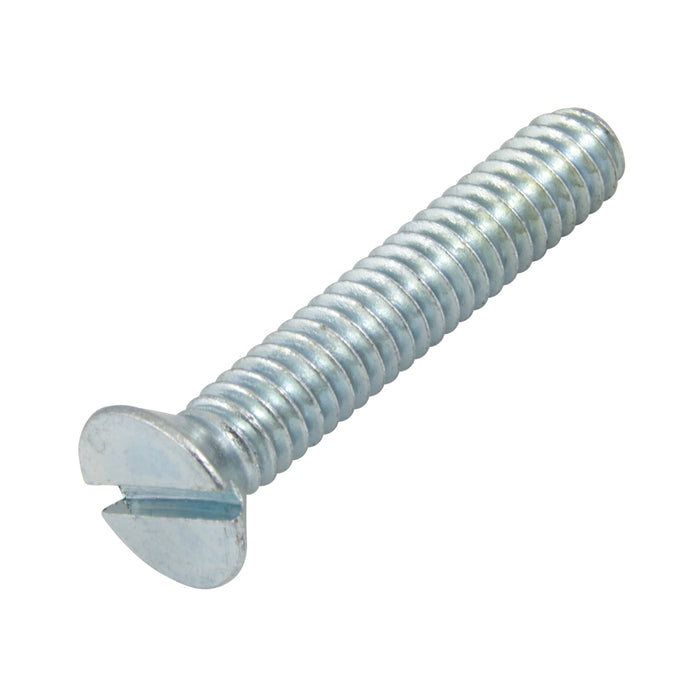

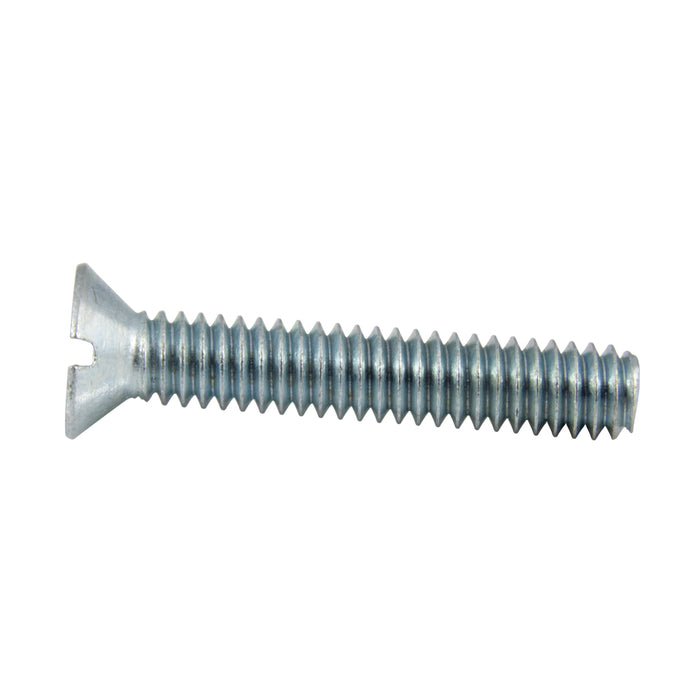

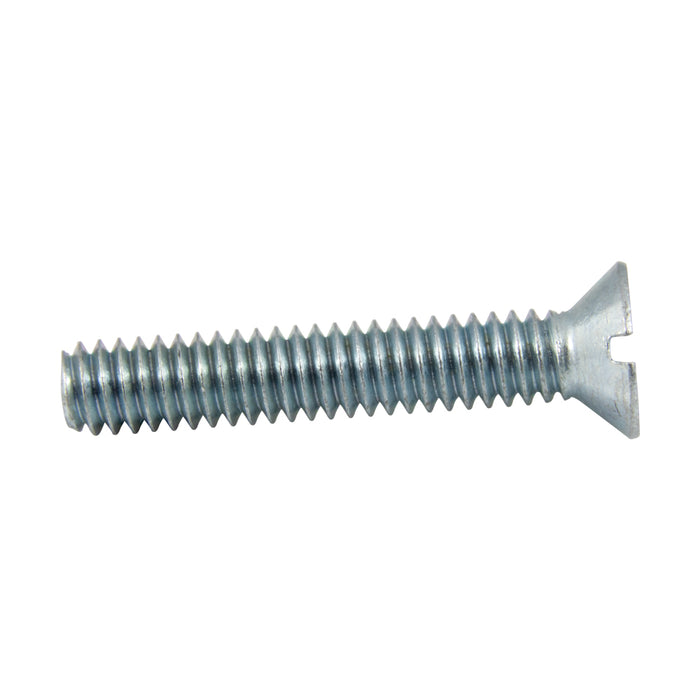

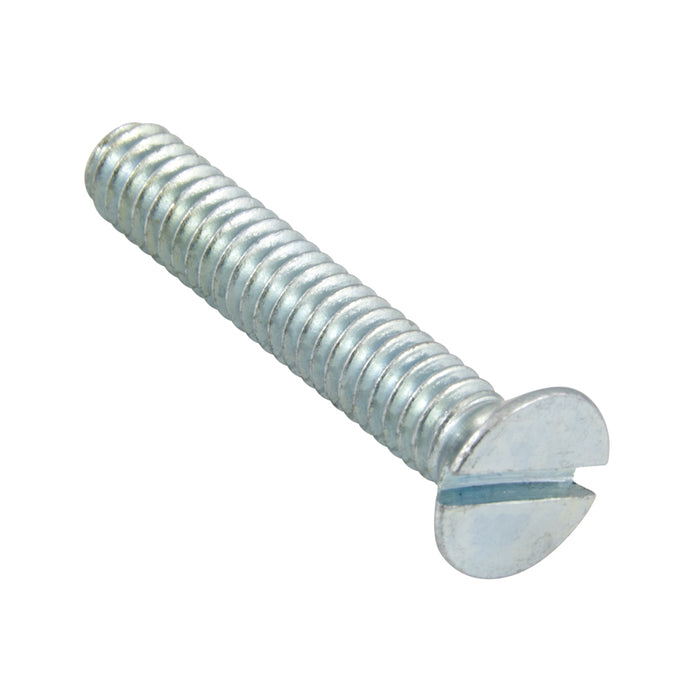

Machine Screw Slot Flat (Undercut) #10-32 UNF x 5/16" Low Carbon Steel Zinc Chromate PLTD ANSI B18.6.3-Latest

Part Number: MS-99

Machine Screw Slot Flat (Undercut) #10-32 UNF x 5/16" Low Carbon Steel Zinc Chromate PLTD ANSI B18.6.3-Latest

Availability:
To view pricing and availability please either log in with a registered email address or register a free account.

Specifications

Part Number MS-99

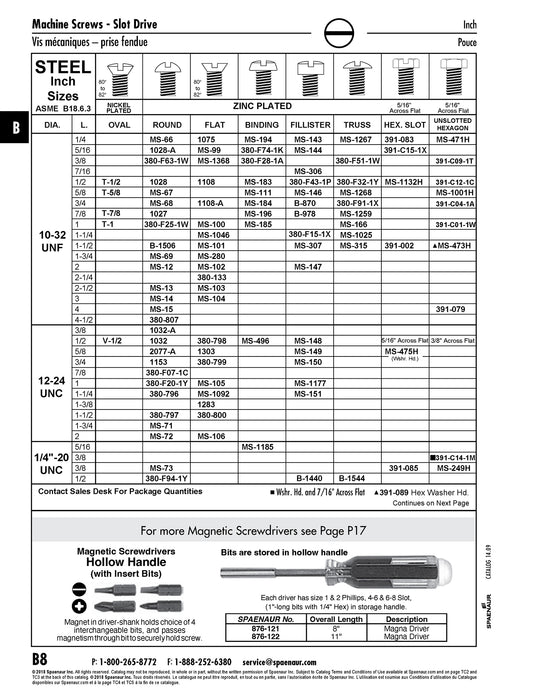

Catalog Page(s) B8
System of Measurement Imperial
ROHS Compliant [yes]
Certificate of Conformance Available [yes]
Head Type Flat Head
Drive Type Slotted
Thread Size #10-32
Thread Standard UNF
Length 5/16"
Material Steel
Finish Zinc Plated
Material Grade | Material Class C1006/C1022
Standard ASME/ANSI B18.6.3
Countersunk 80°-82°
Hardness B70-B100
Head Diameter/Width Across Flats 0.340"-0.385"
Head Height 0.116"
