Machine Screw Round Phillips Head #4-40 UNC x 1" LG Brass Plain Finish ANSI B18.6.3-1972

Part Number: MS-617P

Machine Screw Round Phillips Head #4-40 UNC x 1" LG Brass Plain Finish ANSI B18.6.3-1972

Availability:
To view pricing and availability please either log in with a registered email address or register a free account.

Specifications

Part Number MS-617P

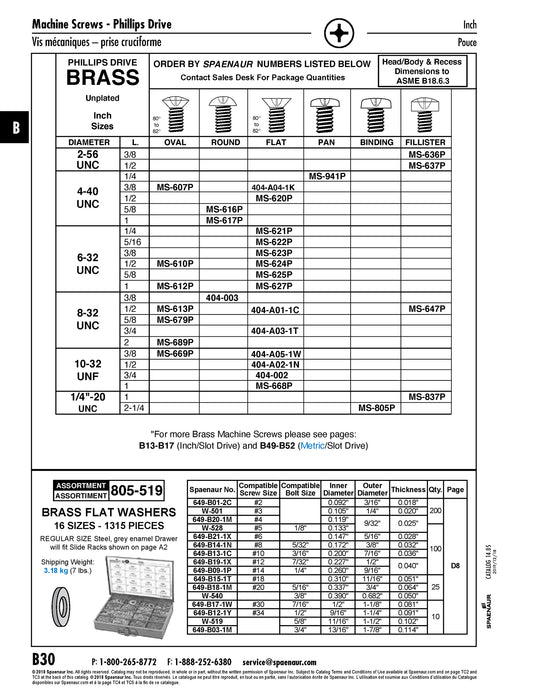

Catalog Page(s) B30
System of Measurement Imperial
ROHS Compliant [yes]
Certificate of Conformance Available [yes]
Head Type Round Head
Drive Type Phillips
Thread Size #4-40
Thread Standard UNC
Length 1"
Material Brass
Finish Plain
Standard ASME/ANSI B18.6.3
Head Diameter/Width Across Flats 0.193"-0.211"
Head Height 0.075"-0.086"
