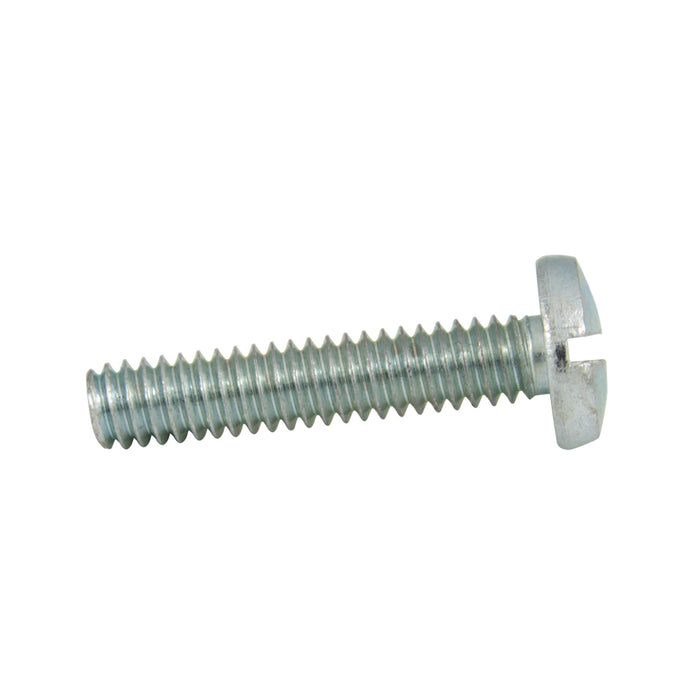

Machine Screw, Binding Slot Head 1/4"-20 UNC x 1 1/4" Low Carbon Steel Zinc Chromate PLTD ANSI B18.6.3-1972

Part Number: MS-216

Machine Screw, Binding Slot Head 1/4"-20 UNC x 1 1/4" Low Carbon Steel Zinc Chromate PLTD ANSI B18.6.3-1972

Availability:
To view pricing and availability please either log in with a registered email address or register a free account.

Specifications

Part Number MS-216

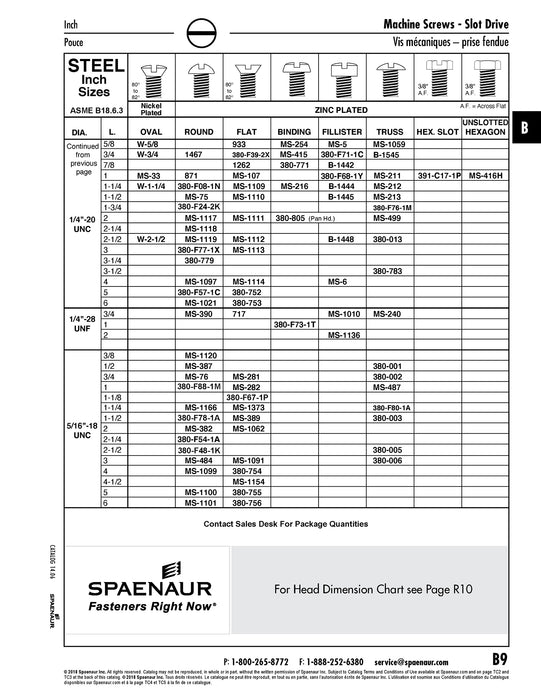

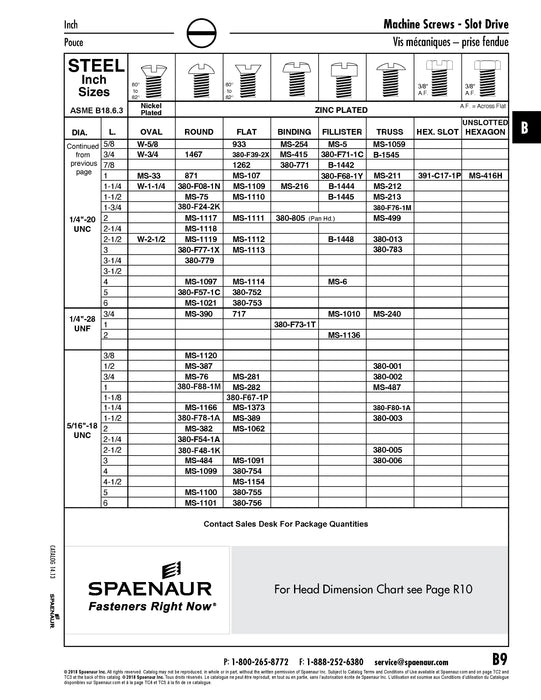

Catalog Page(s) B9
System of Measurement Imperial
ROHS Compliant [yes]
Certificate of Conformance Available [yes]
Head Type Binding Head
Drive Type Slotted
Thread Size 1/4"-20
Thread Standard UNC
Length 1-1/4"
Material Steel
Finish Zinc Plated
Material Grade | Material Class C1006/C1022
Standard ASME/ANSI B18.6.3
Hardness B70-B100
Head Diameter/Width Across Flats 0.498"-0.525"
Head Height 0.152"-.0165"
