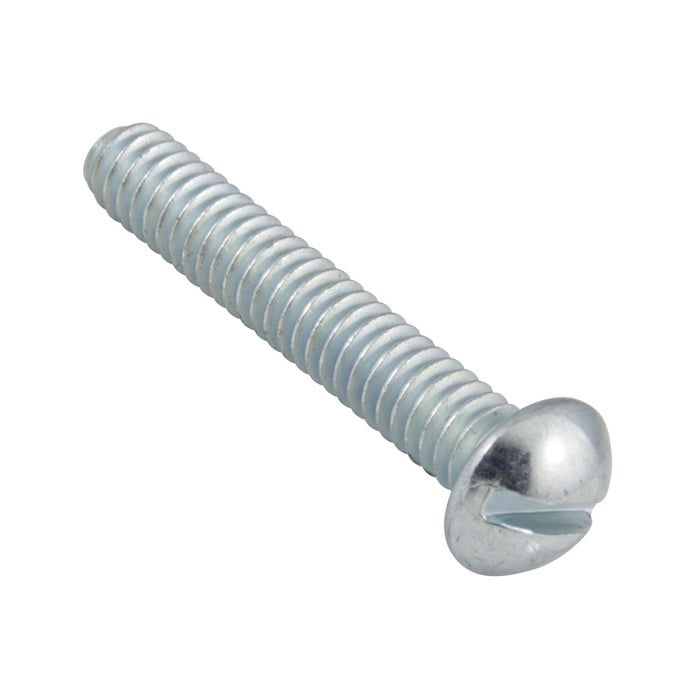

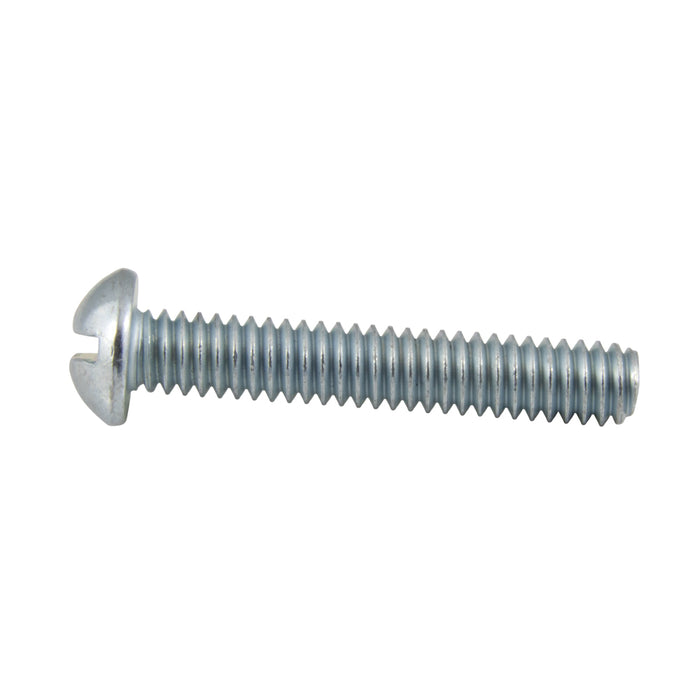

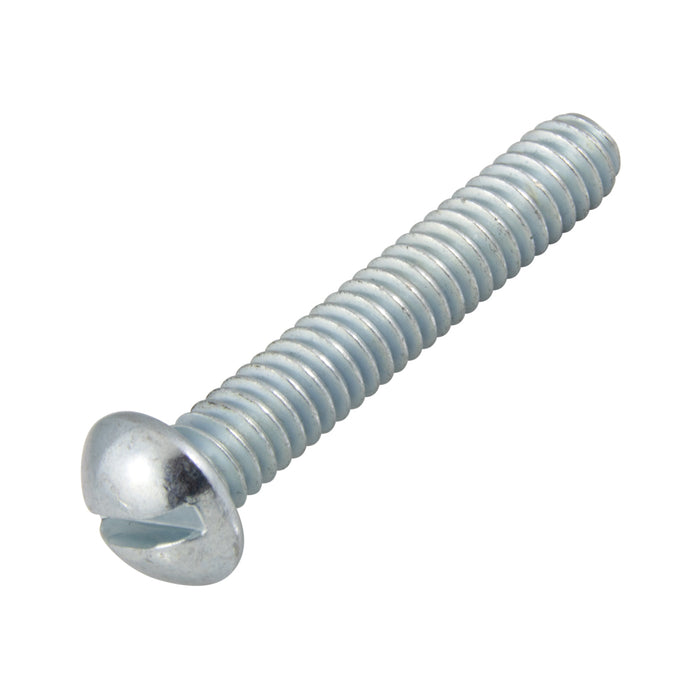

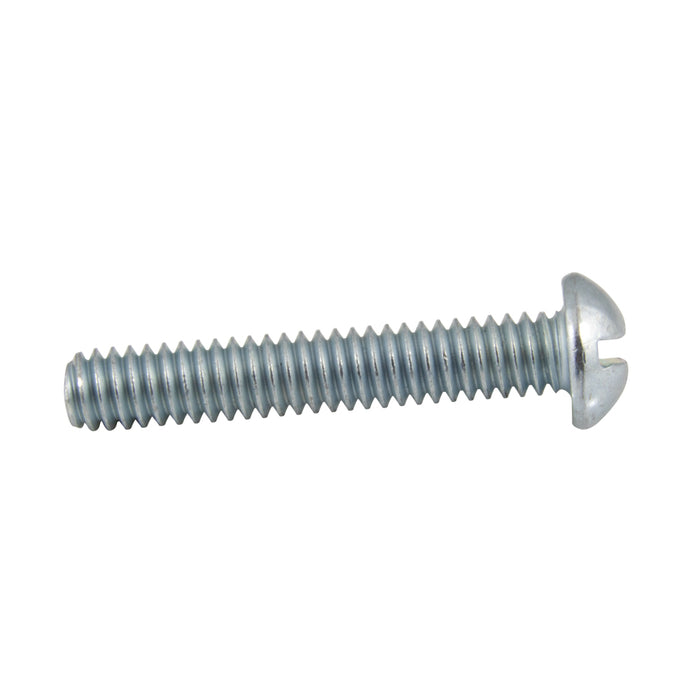

Machine Screw, Slot Round HD 1/4"-20 UNC x 2 1/2" Low Carbon Steel Zinc Plated ANSI B18.6.3-1972

Part Number: MS-1119

Machine Screw, Slot Round HD 1/4"-20 UNC x 2 1/2" Low Carbon Steel Zinc Plated ANSI B18.6.3-1972

Availability:
To view pricing and availability please either log in with a registered email address or register a free account.

Specifications

Part Number MS-1119

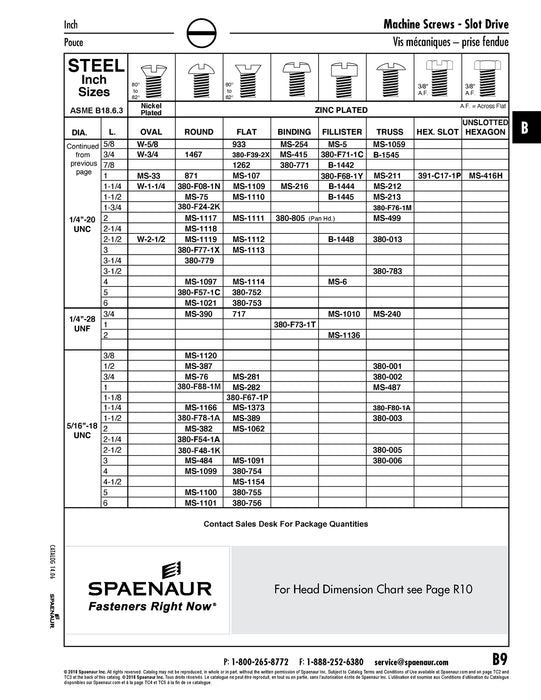

Catalog Page(s) B9
System of Measurement Imperial
ROHS Compliant [yes]
Certificate of Conformance Available [yes]
Head Type Round Head
Drive Type Slotted
Thread Size 1/4"-20
Thread Standard UNC
Length 2-1/2"
Material Steel
Finish Zinc Plated
Material Grade | Material Class C1006/C1022
Standard ASME/ANSI B18.6.3
Hardness B70-B100
Head Diameter/Width Across Flats 0.443"-0.472"
Head Height 0.160"-0.175"
