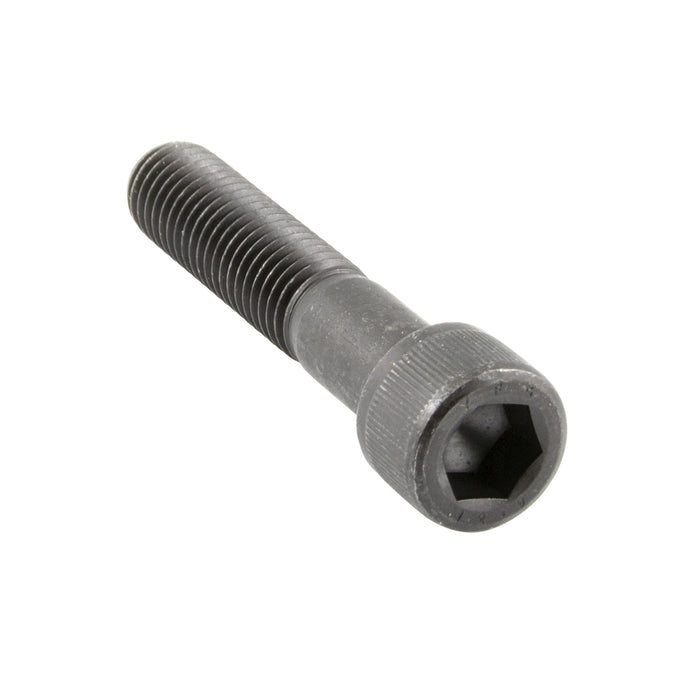

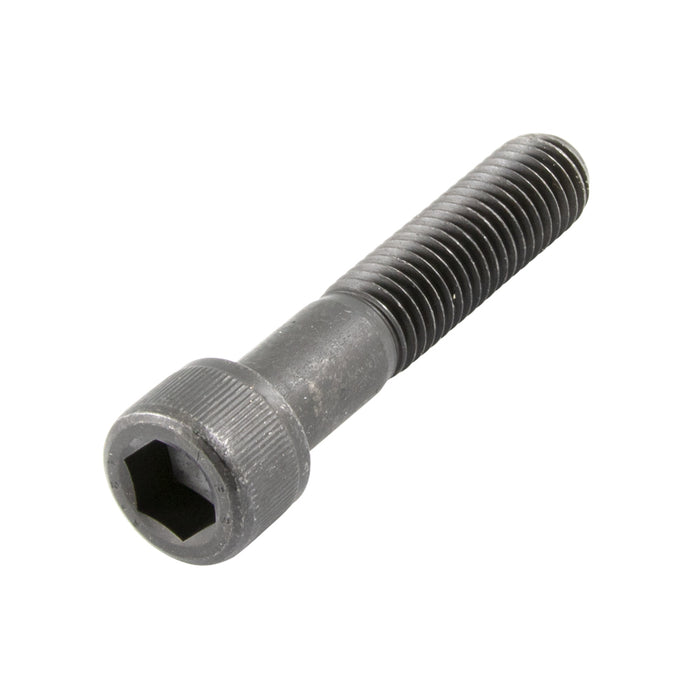

Hex Socket Cap Screw 1960 Series 3/4"-10 UNC x 5" Alloy Steel Quenched & Tempered Plain Finish ANSI B18.3-1986

Part Number: HX-167

Hex Socket Cap Screw 1960 Series 3/4"-10 UNC x 5" Alloy Steel Quenched & Tempered Plain Finish ANSI B18.3-1986

Availability:
To view pricing and availability please either log in with a registered email address or register a free account.

Specifications

Part Number HX-167

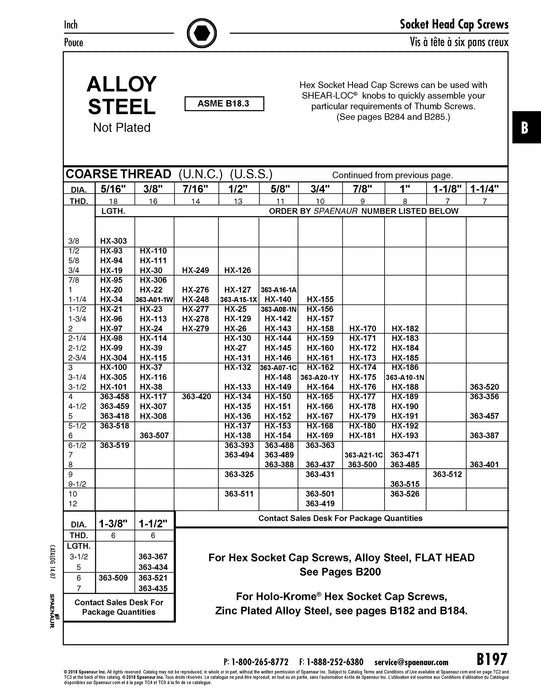

Catalog Page(s) B197
System of Measurement Imperial
ROHS Compliant [yes]
Certificate of Conformance Available [yes]
Head Type Socket Head
Drive Type Hex Socket
Length 5"
Material Alloy Steel
Finish Plain
Thread Class 3A
Thread Size 3/4"-10
Thread Standard UNC
Hardness Rockwell C37-C45
Standard ASME/ANSI B18.3
