Hex Socket Cap Screw 1960 Series 5/8"-11 UNC x 2" Alloy Steel Quenched & Tempered Plain Finish ANSI B18.3 by Spaenaur Inc.

*Representative images - please refer to the product specifications for exact product information

Part Number: HX-143

Hex Socket Cap Screw 1960 Series 5/8"-11 UNC x 2" Alloy Steel Quenched & Tempered Plain Finish ANSI B18.3

Availability:
To view pricing and availability please either log in with a registered email address or register a free account.

Specifications

Part Number HX-143

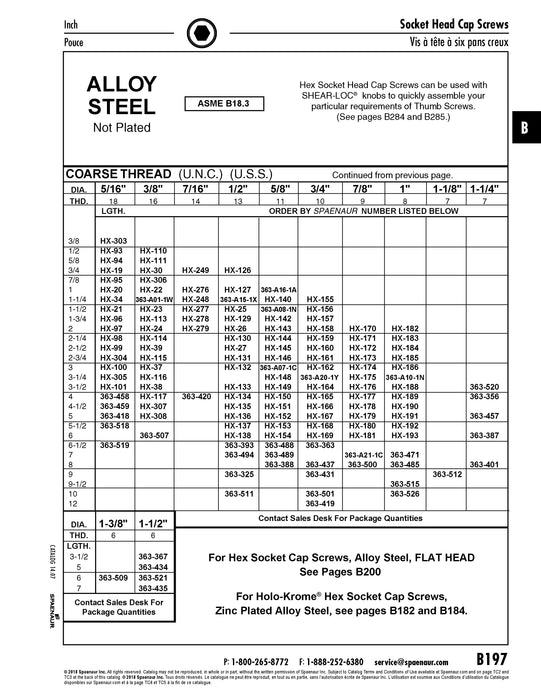

Catalog Page(s) B197
System of Measurement Imperial
ROHS Compliant [yes]
Certificate of Conformance Available [yes]
Head Type Socket Head
Drive Type Hex Socket
Length 2"
Material Alloy Steel
Finish Plain
Thread Class 3A
Thread Size 5/8"-11
Thread Standard UNC
Hardness Rockwell C37-C45
Standard ASME/ANSI B18.3
