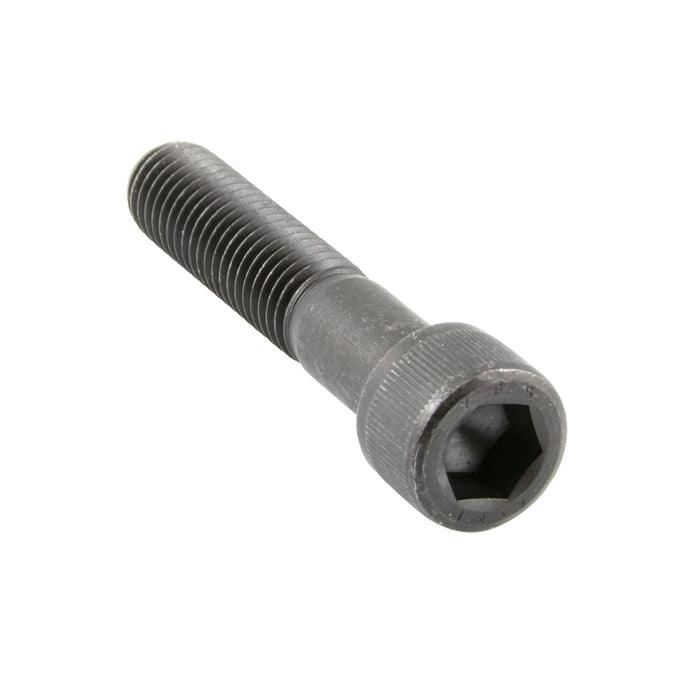

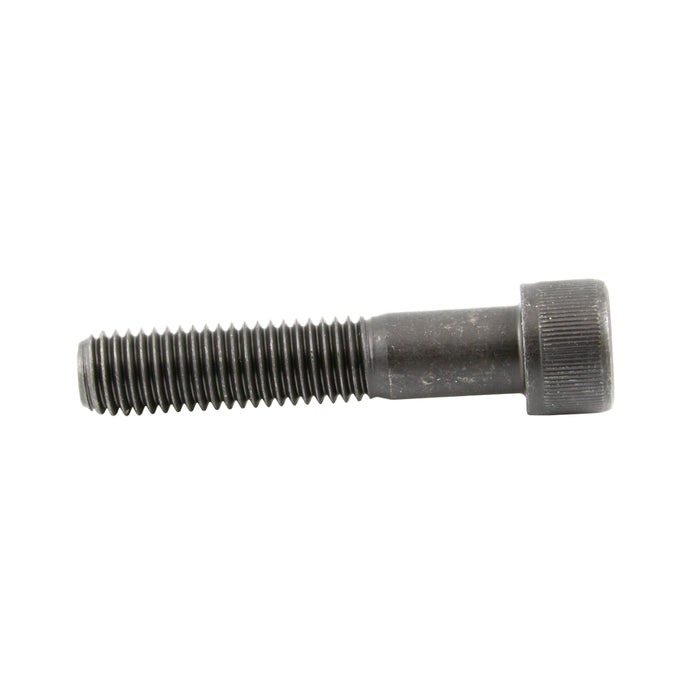

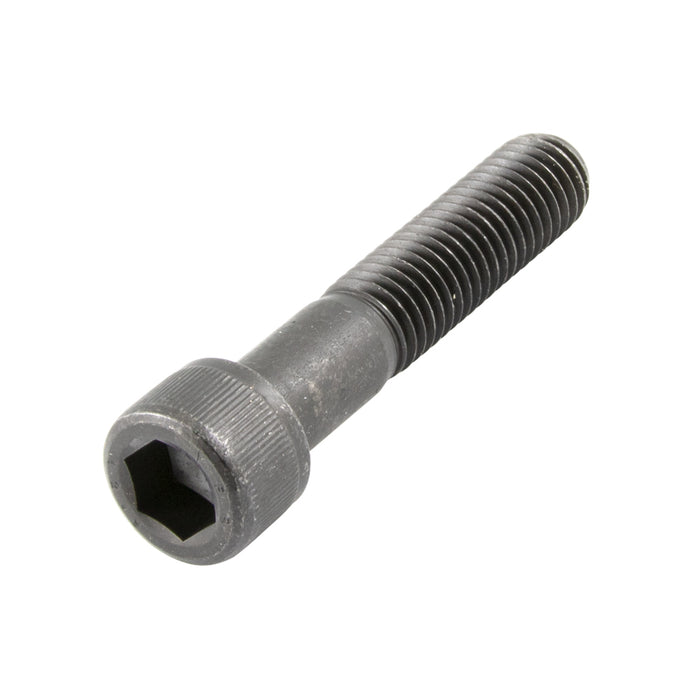

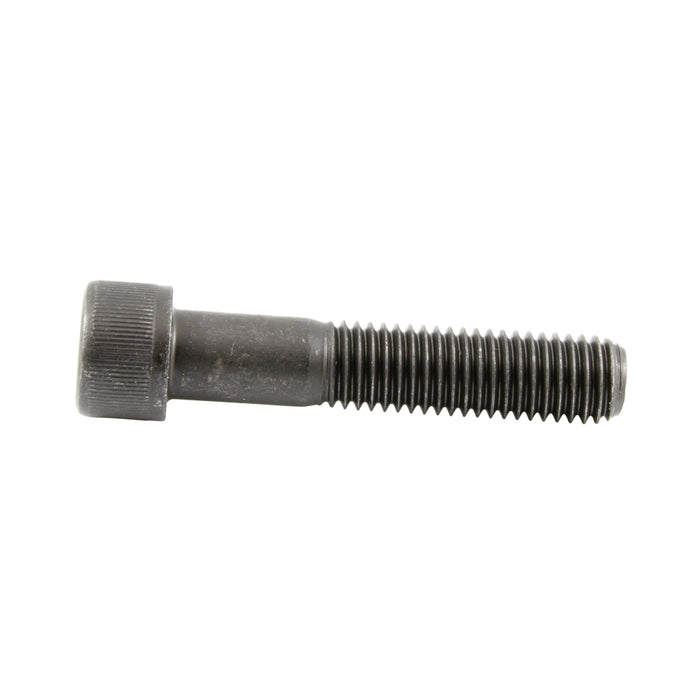

Hex Socket Cap Screw 1960 Series 5/8"-11 UNC x 1-3/4" Alloy Steel Quenched & Tempered Plain Finish ANSI B18.3-1986

Part Number: HX-142

Hex Socket Cap Screw 1960 Series 5/8"-11 UNC x 1-3/4" Alloy Steel Quenched & Tempered Plain Finish ANSI B18.3-1986

Availability:
To view pricing and availability please either log in with a registered email address or register a free account.

Specifications

Part Number HX-142

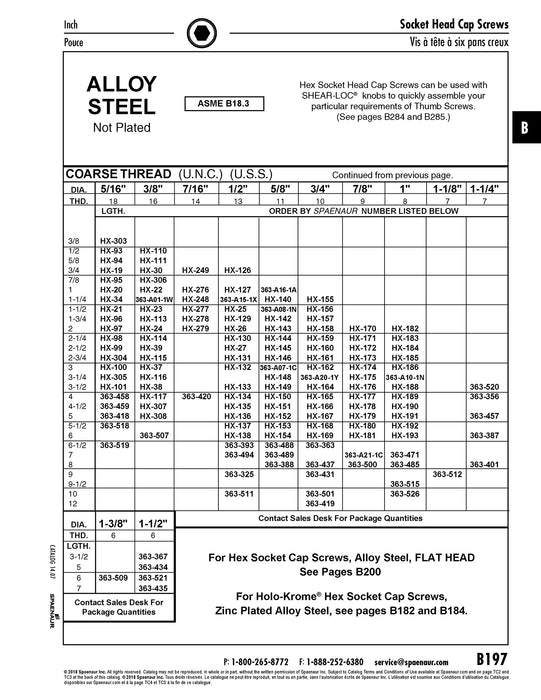

Catalog Page(s) B197
System of Measurement Imperial
Head Type Socket Head
Drive Type Hex Socket
Length 1-3/4"
Material Alloy Steel
Finish Plain
Head Diameter Max 0.938"
Head Height Max 0.625"
Thread Size 5/8"-11
Thread Standard UNC
Hardness Rockwell C37-C45
Key Size 1/2";0.500"
Standard ASME/ANSI B18.3
Tensile Strength Min 170000 psi
