Part Number: DS-210

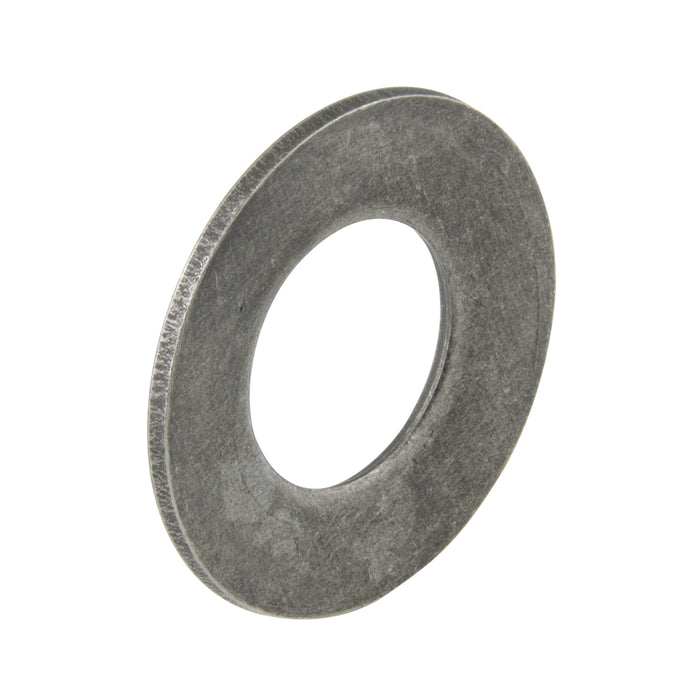

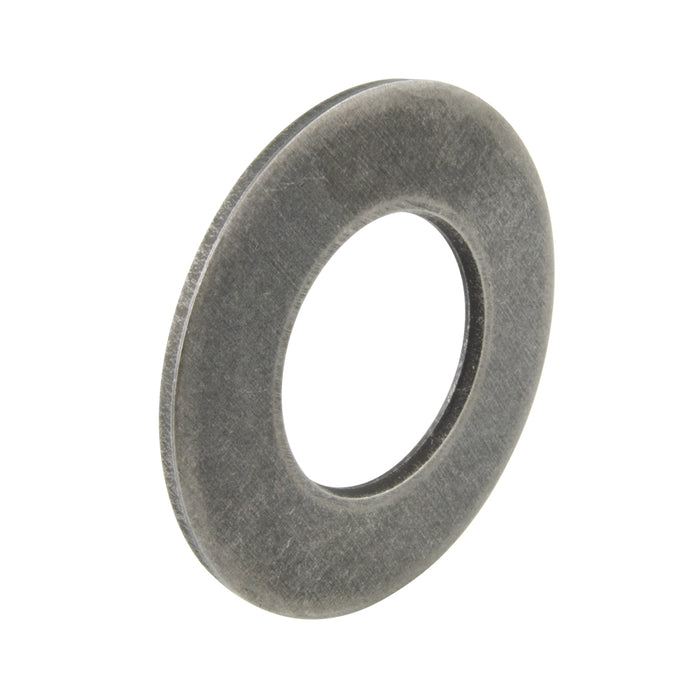

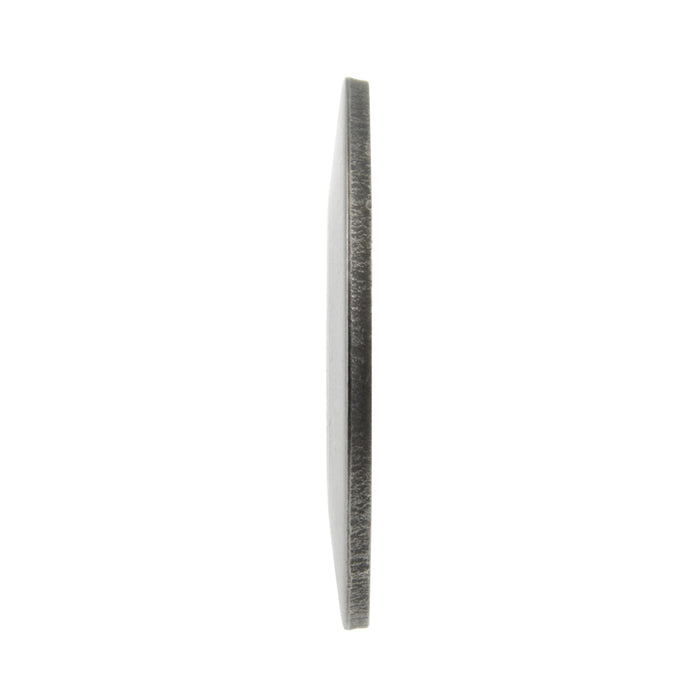

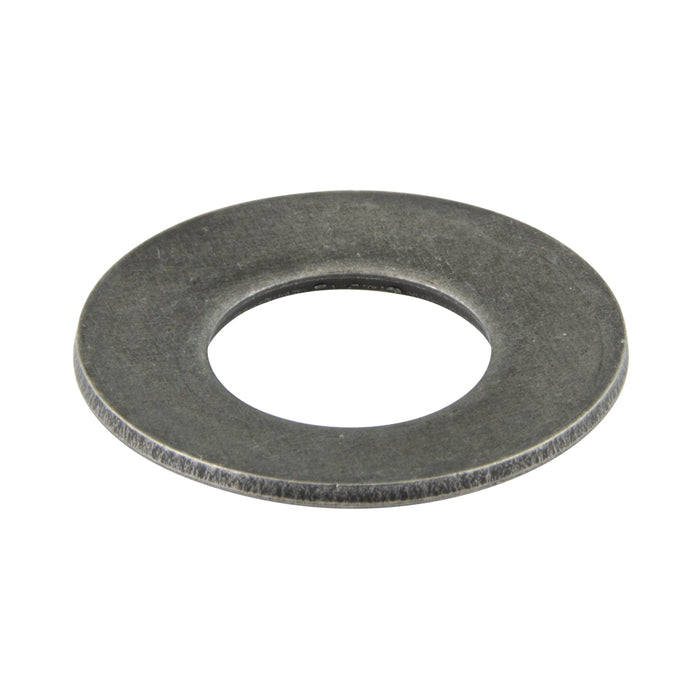

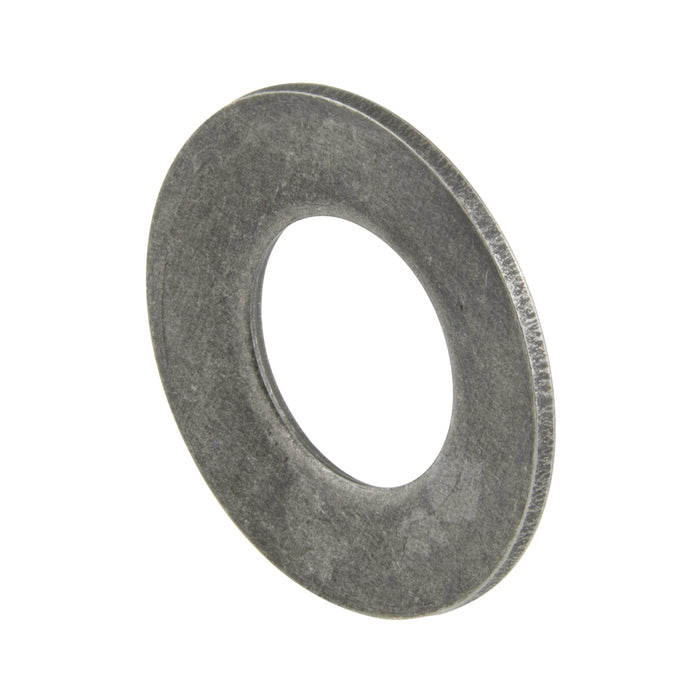

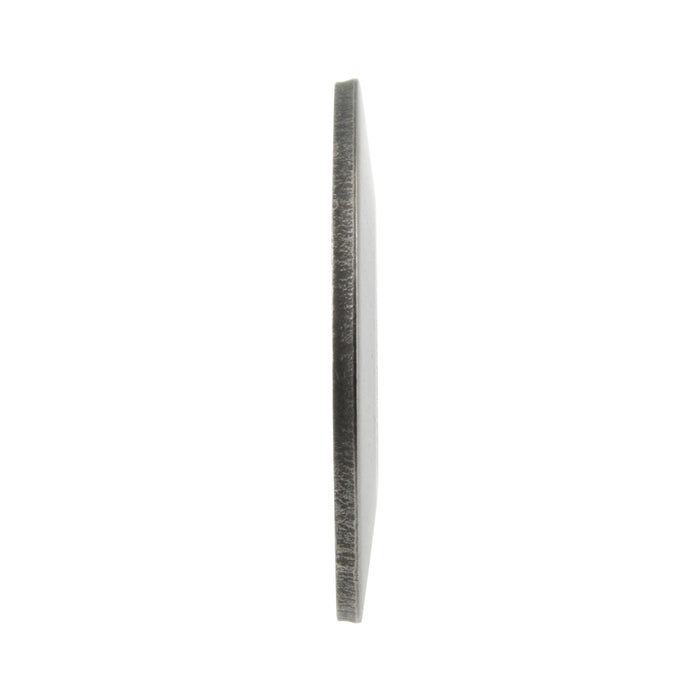

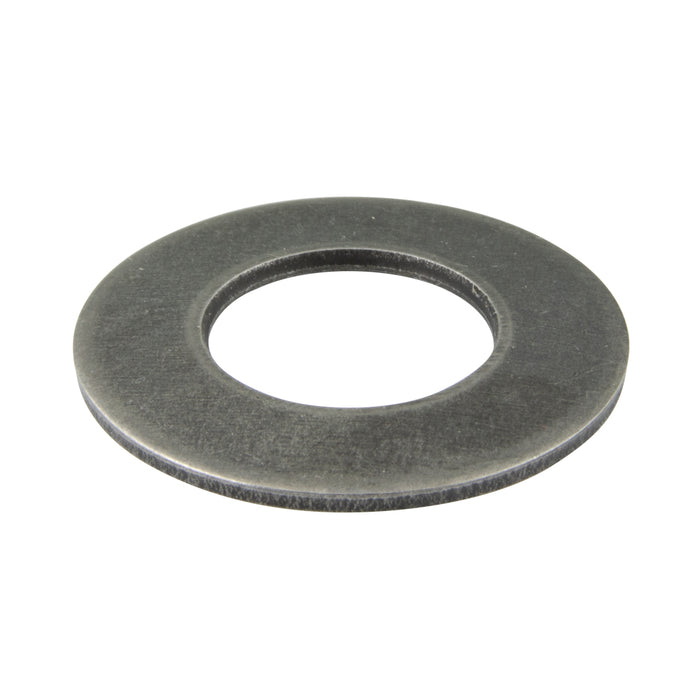

Disc Spring, AI-157698, Bolt Size 3/4" (1-1/2"OD x .761"ID x .098"TH) C1075 High Carbon Spring Steel

Availability:
To view pricing and availability please either log in with a registered email address or register a free account.

Specifications

Part Number DS-210

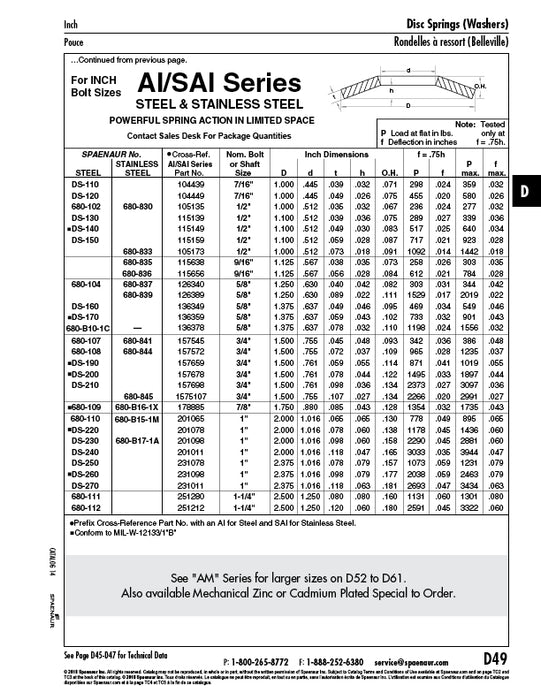

Catalog Page(s) D49
System of Measurement Imperial
Vendor Series AI/SAI Series
Washer Type Curved Non-Serrated
Material Spring Steel
Finish Phosphate
Compatible Hole Size 3/4"
Inside Diameter 0.761";+0.010"
Outside Diameter 1-1/2";-0.012"
Thickness 0.098";±0.0035"
Overall Height 0.134";+0.012";-0.006"
Height 0.0633"
