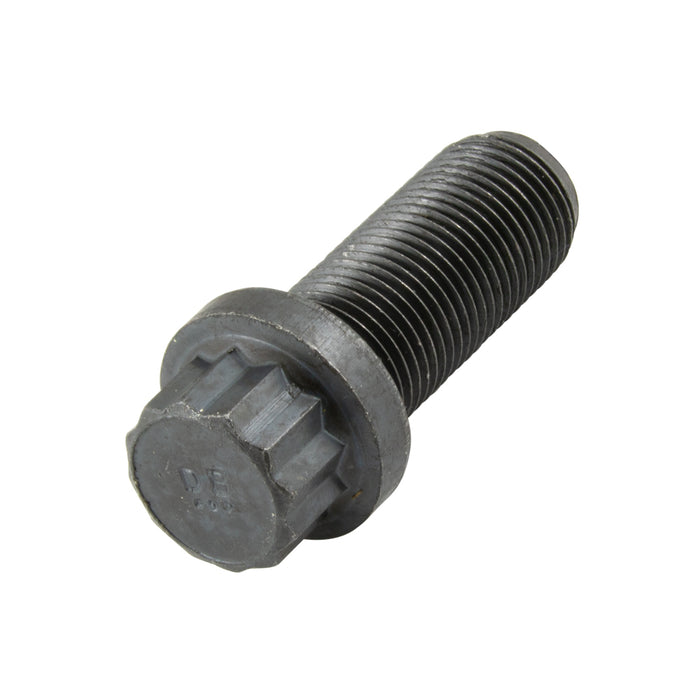

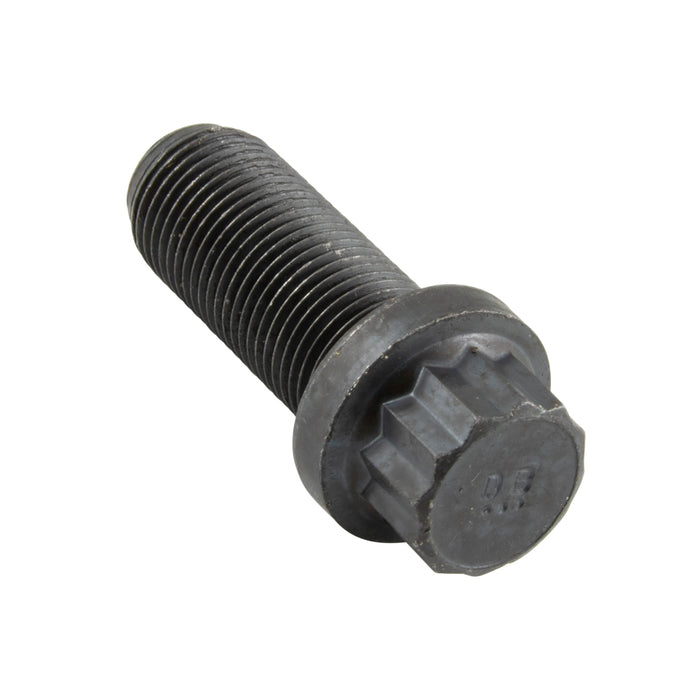

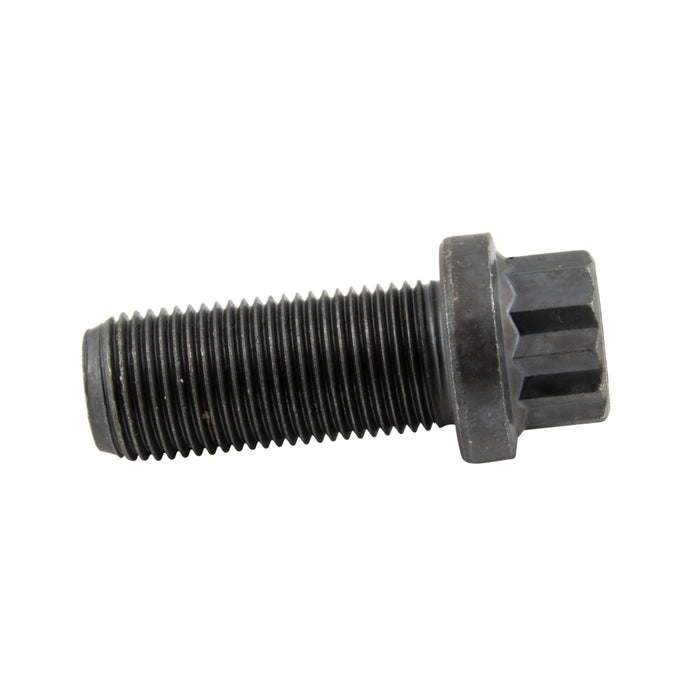

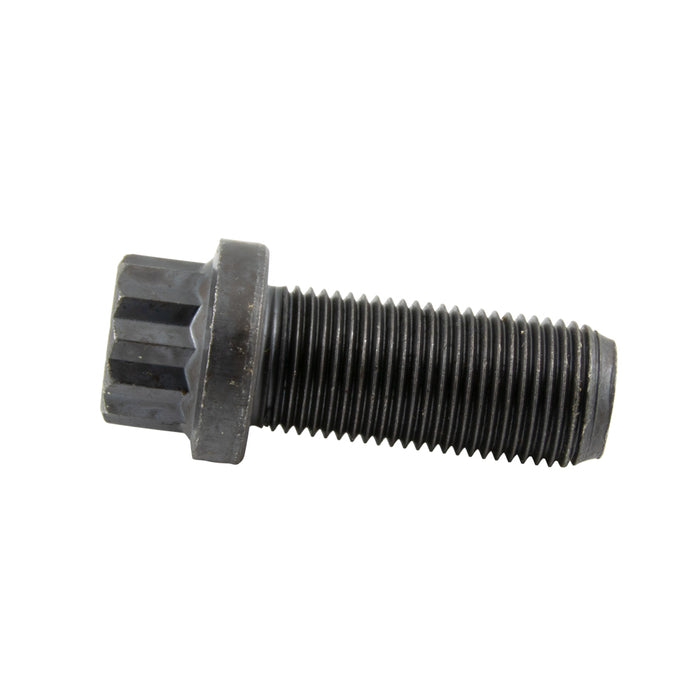

12 Point Flanged Countr-Bor Screw 1/4"-28 UNF-3A x 1 3/4" LG Medium Carbon Alloy Steel Quenched & Tempered, Plain

Part Number: CS-303

12 Point Flanged Countr-Bor Screw 1/4"-28 UNF-3A x 1 3/4" LG Medium Carbon Alloy Steel Quenched & Tempered, Plain

Availability:
To view pricing and availability please either log in with a registered email address or register a free account.

Specifications

Part Number CS-303

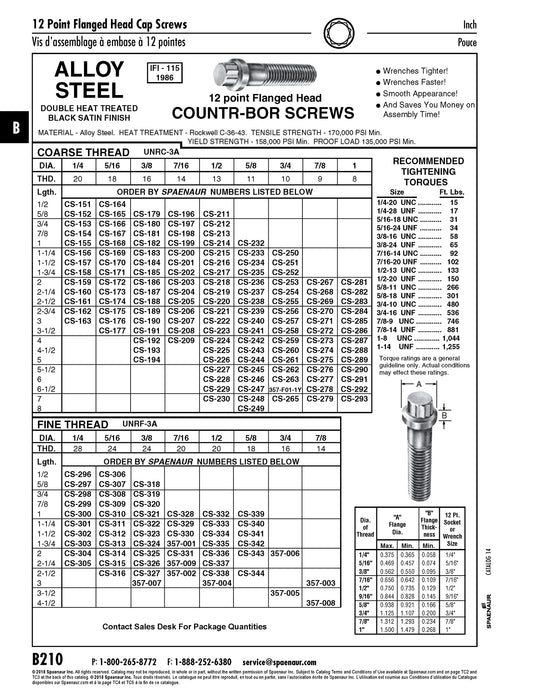

Catalog Page(s) B210
System of Measurement Imperial
ROHS Compliant [yes]
Certificate of Conformance Available [yes]
Head Type 12-Point Flange Counter Bore Head
Material Steel
Finish Plain
Material Grade | Material Class Grade 8
Thread Type Partially-Threaded
Thread Size 1/4"-28
Thread Class 3A
Length 1-3/4"
Standard IFI 115
