12 Point Flanged Countr-Bor Screw 1/4"-28 UNF-3A x 1/2" LG Medium Carbon Alloy Steel Quenched & Tempered Not Plated

*Representative images - please refer to the product specifications for exact product information

Part Number: CS-296

12 Point Flanged Countr-Bor Screw 1/4"-28 UNF-3A x 1/2" LG Medium Carbon Alloy Steel Quenched & Tempered Not Plated

Availability:
To view pricing and availability please either log in with a registered email address or register a free account.

Specifications

Part Number CS-296

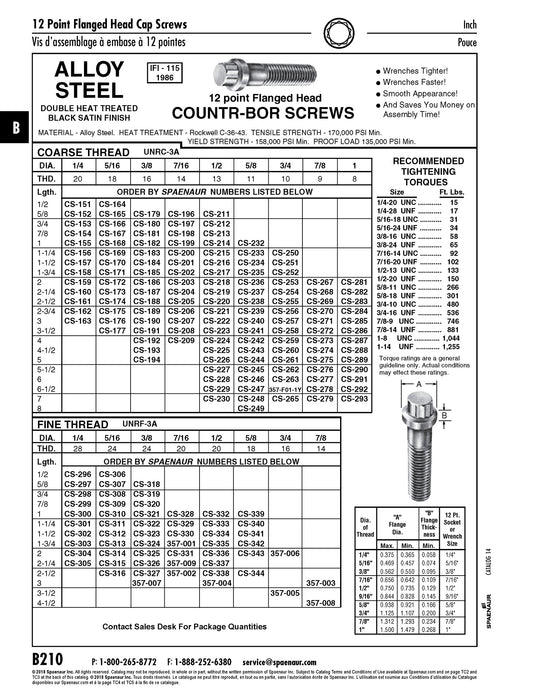

Catalog Page(s) B210
System of Measurement Imperial
ROHS Compliant [yes]
Certificate of Conformance Available [yes]
Head Type 12-Point Flange Counter Bore Head
Material Steel
Finish Plain
Material Grade | Material Class Grade 8
Thread Type Partially-Threaded
Thread Size 1/4"-28
Thread Class 3A
Length 1/2"
Standard IFI 115
