12 Point Flanged Countr-Bor Screw 3/4"-10 UNC-3A x 5" LG Medium Carbon Alloy Steel Quenched & Tempered Not Plated, IFI 115-1986

*Representative images - please refer to the product specifications for exact product information

Part Number: CS-261

12 Point Flanged Countr-Bor Screw 3/4"-10 UNC-3A x 5" LG Medium Carbon Alloy Steel Quenched & Tempered Not Plated, IFI 115-1986

Availability:
To view pricing and availability please either log in with a registered email address or register a free account.

Specifications

Part Number CS-261

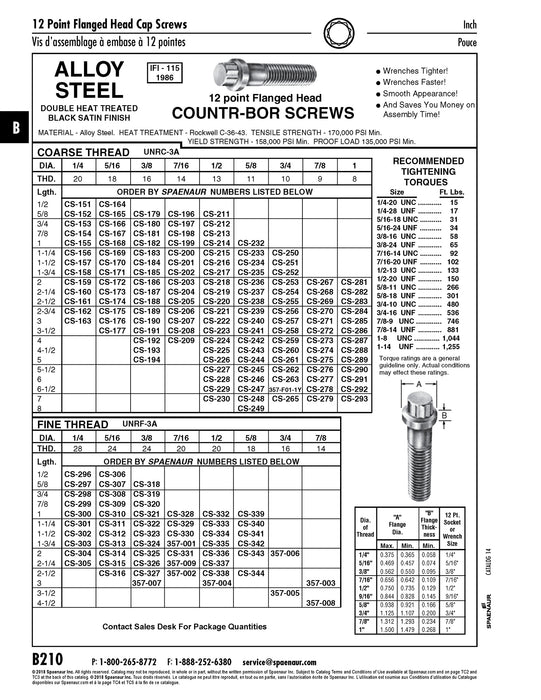

Catalog Page(s) B210
System of Measurement Imperial
ROHS Compliant [yes]
Certificate of Conformance Available [yes]
Head Type 12-Point Flange Counter Bore Head
Material Steel
Finish Plain
Material Grade | Material Class Grade 8
Thread Type Partially-Threaded
Thread Size 3/4"-10
Thread Class 3A
Length 5"
Head Diameter 1.107" to 1.125"
Head Height Min 0.200 (Flange)"
Hardness C36-C43
Standard IFI 115
Tensile Strength 170,000 Min. PSI
