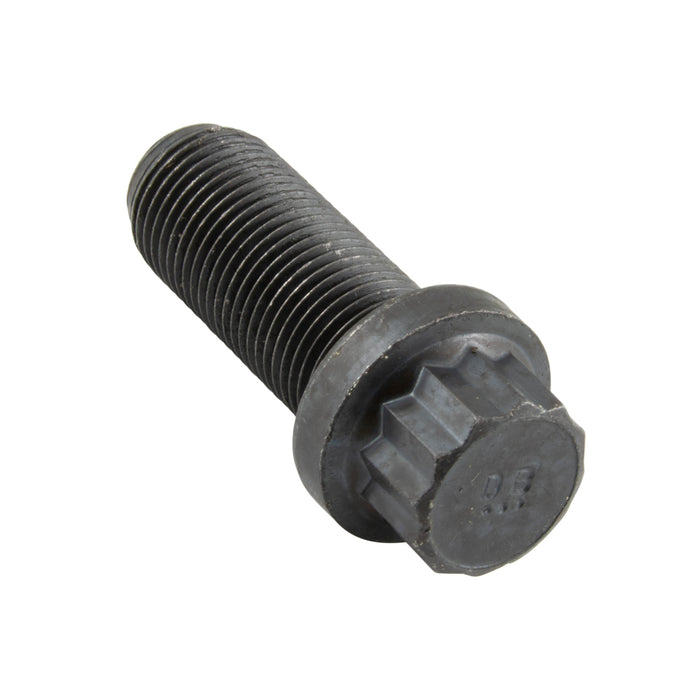

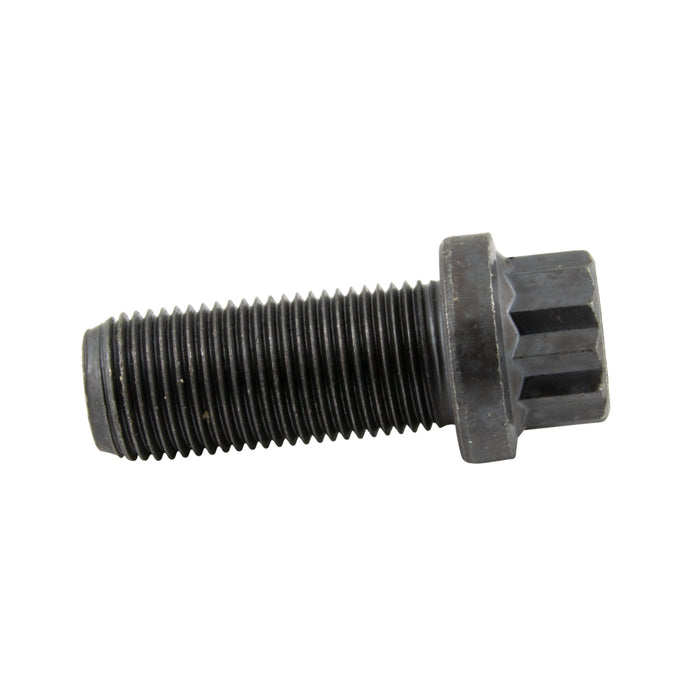

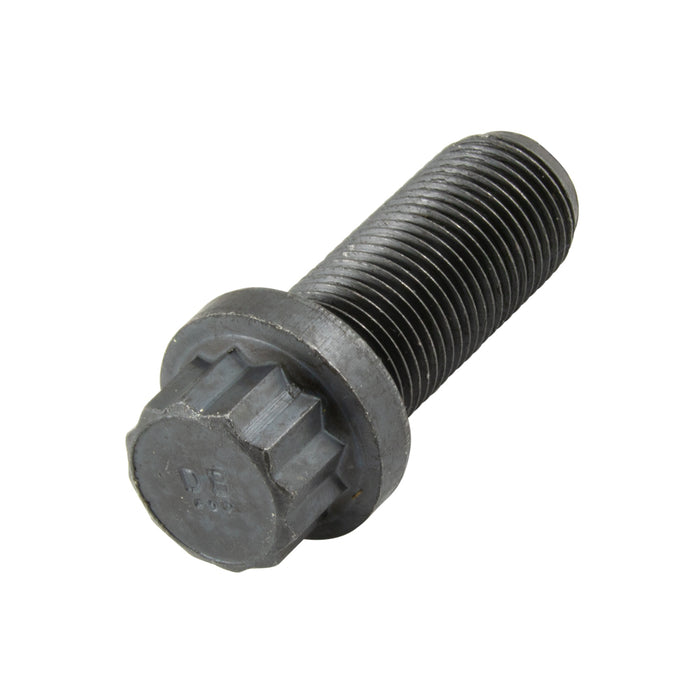

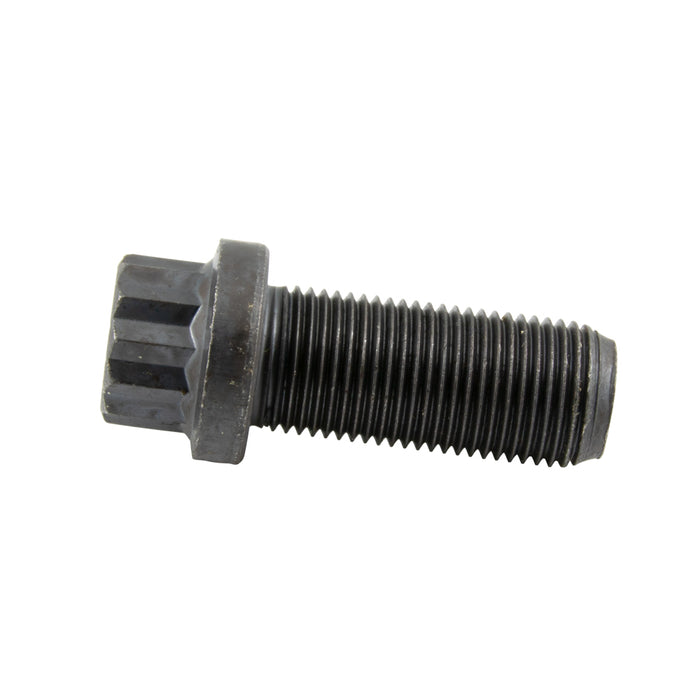

12 Point Flanged Countr-Bor Screw 1/4"-20 UNC-3A x 2 3/4" LG Medium Carbon Alloy Steel Quenched & Tempered Not Plated

Part Number: CS-162

12 Point Flanged Countr-Bor Screw 1/4"-20 UNC-3A x 2 3/4" LG Medium Carbon Alloy Steel Quenched & Tempered Not Plated

Availability:
To view pricing and availability please either log in with a registered email address or register a free account.

Specifications

Part Number CS-162

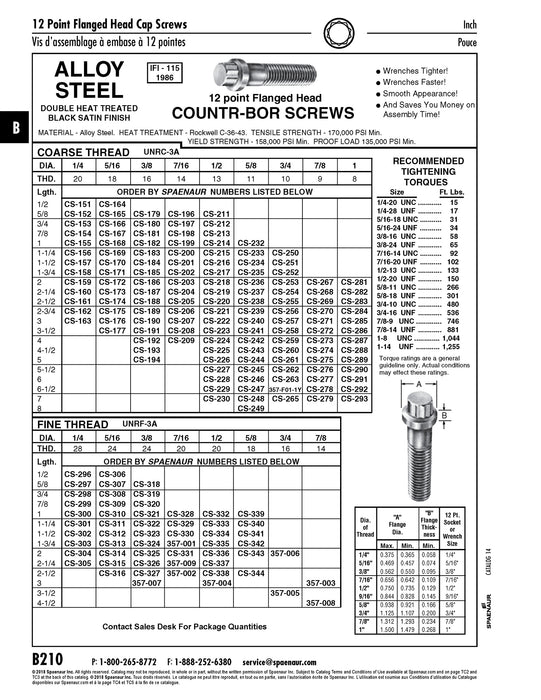

Catalog Page(s) B210
System of Measurement Imperial
ROHS Compliant [yes]
Certificate of Conformance Available [yes]
Head Type 12-Point Flange Counter Bore Head
Material Steel
Finish Plain
Material Grade | Material Class Grade 8
Thread Type Partially-Threaded
Thread Size 1/4"-20
Thread Class 3A
Length 2-3/4"
Head Diameter 0.365" to 0.375"
Head Height Min 0.058 (Flange)"
Hardness C36-C43
Standard IFI 115
Tensile Strength 170,000 Min. PSI
