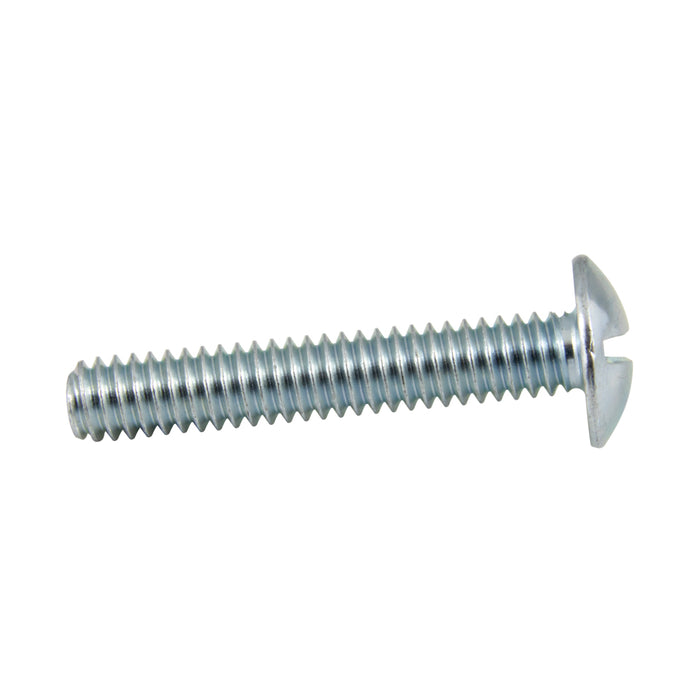

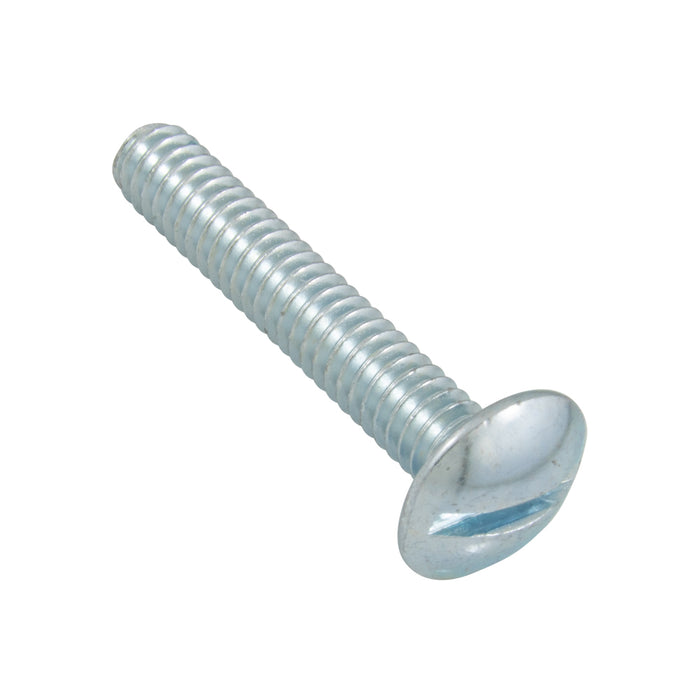

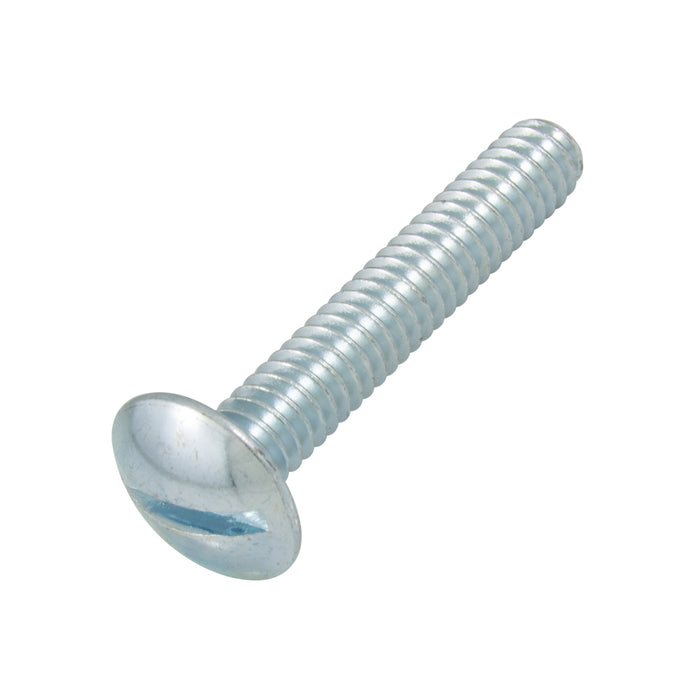

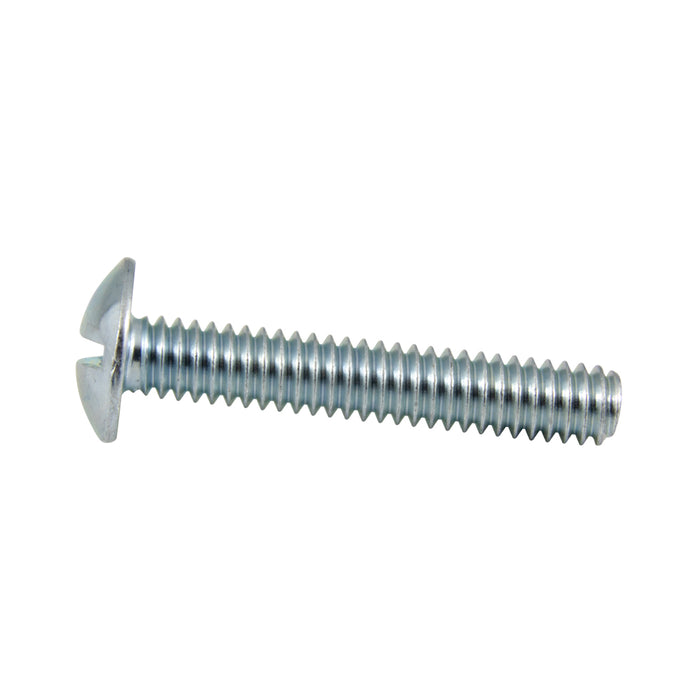

Machine Screw, Truss Slot Head 1/4"-20 UNC x 1/2" LONG Low Carbon Steel Zinc Plated ANSI B18.6.3-1972

Part Number: B-1544

Machine Screw, Truss Slot Head 1/4"-20 UNC x 1/2" LONG Low Carbon Steel Zinc Plated ANSI B18.6.3-1972

Availability:
To view pricing and availability please either log in with a registered email address or register a free account.

Specifications

Part Number B-1544

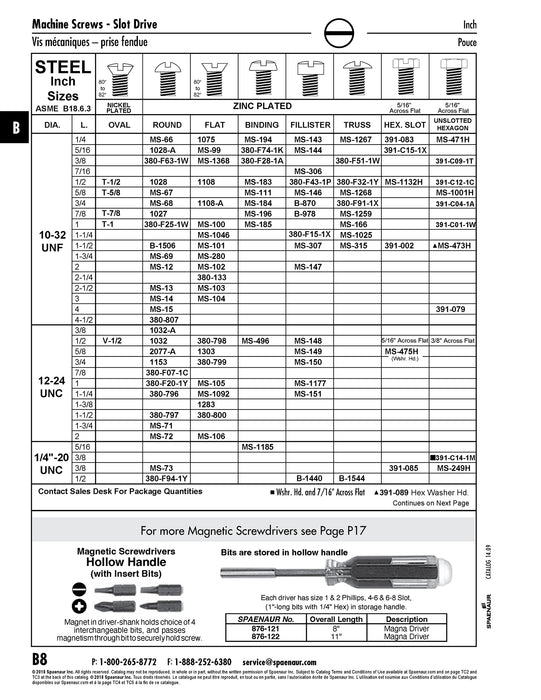

Catalog Page(s) B8,H34
System of Measurement Imperial
ROHS Compliant [yes]
Certificate of Conformance Available [yes]
Head Type Truss Head
Drive Type Slotted
Thread Size 1/4"-20
Thread Standard UNC
Length 1/2"
Material Steel
Finish Zinc Plated
Material Grade | Material Class C1006/C1022
Standard ASME/ANSI B18.6.3
Hardness B70-B100
Head Diameter/Width Across Flats 0.546"-0.573"
Head Height 0.133"-0.150"
