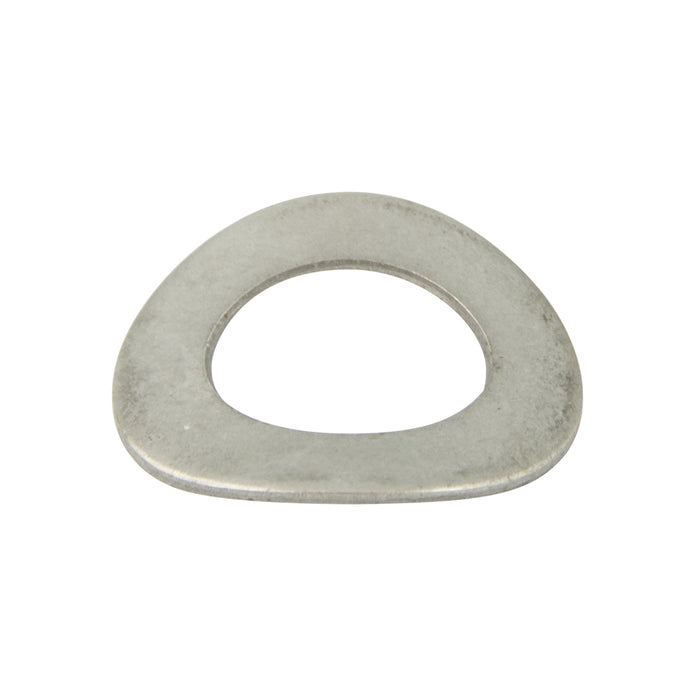

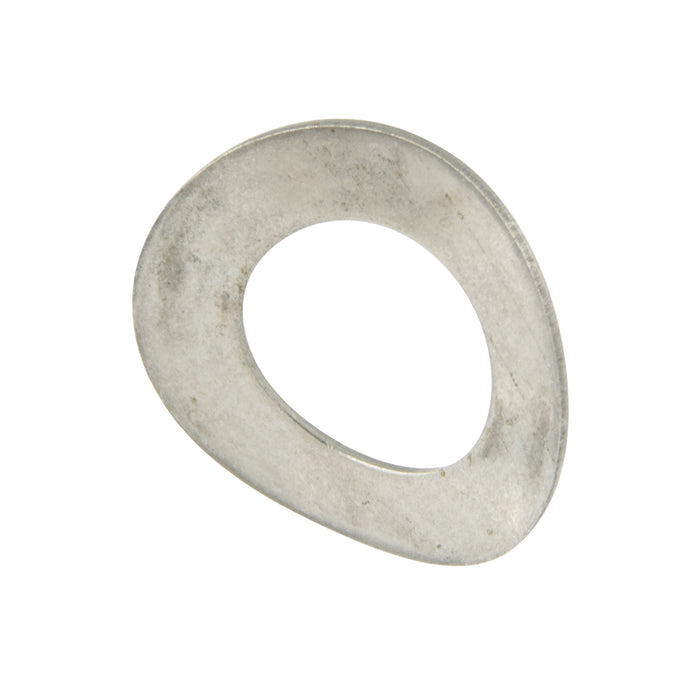

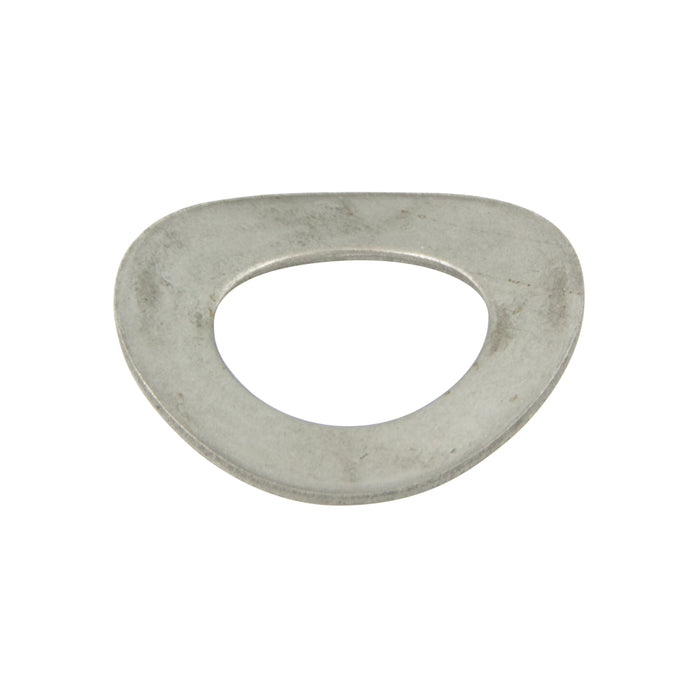

Bowed Spring Washer, DIN 137A M3.5 A2 Stainless Steel DIN 137A/A2 M3.5 by Spaenaur Inc.

Part Number: 681-D27-1W

Legacy Part Number(s): 681-819

Bowed Spring Washer, DIN 137A M3.5 A2 Stainless Steel DIN 137A/A2 M3.5

Availability:
To view pricing and availability please either log in with a registered email address or register a free account.

Specifications

Part Number 681-D27-1W

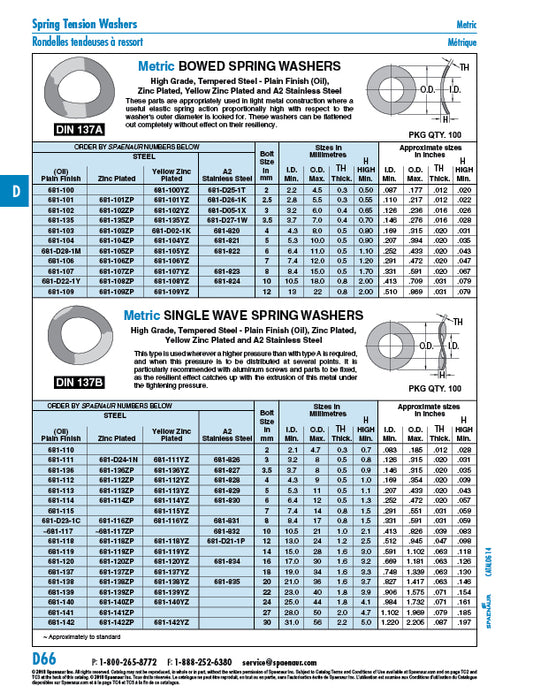

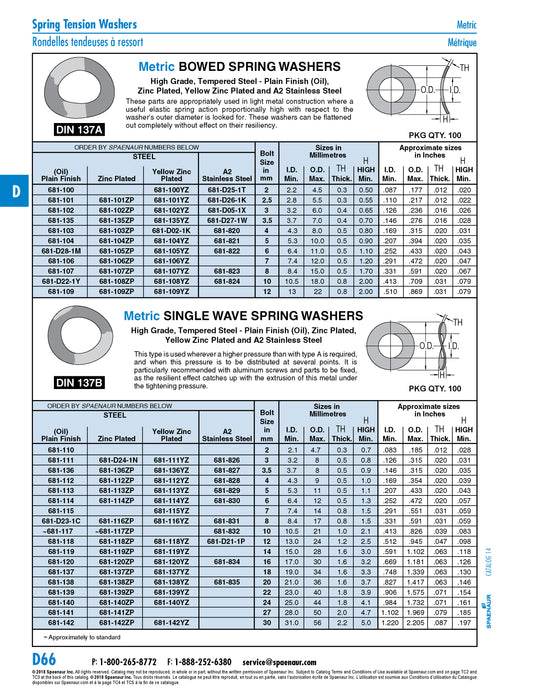

Catalog Page(s) D66
System of Measurement Metric
ROHS Compliant [yes]
Certificate of Conformance Available [yes]
Legacy Part Number 681-819
Washer Type Bowed
Compatible Bolt Size 3.5 mm
Inside Diameter 3.7 mm Min.; .146" Min. Approximate
Outside Diameter 7.0 mm Max.; .276" Max. Approximate
Overall Height 0.70 mm Min.; .028" Min. Approximate
Thickness 0.4 mm; .016" Approximate
Material Stainless Steel
Material Grade | Material Class A2
Standard DIN 137A
