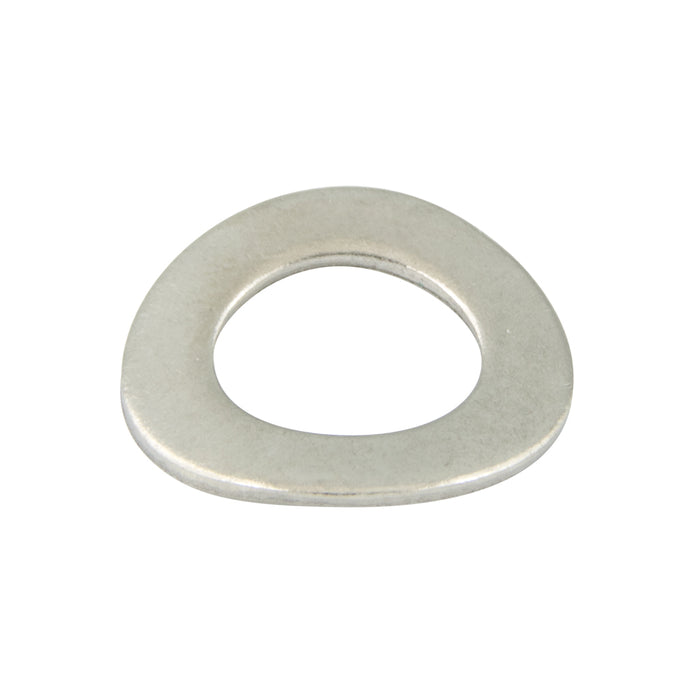

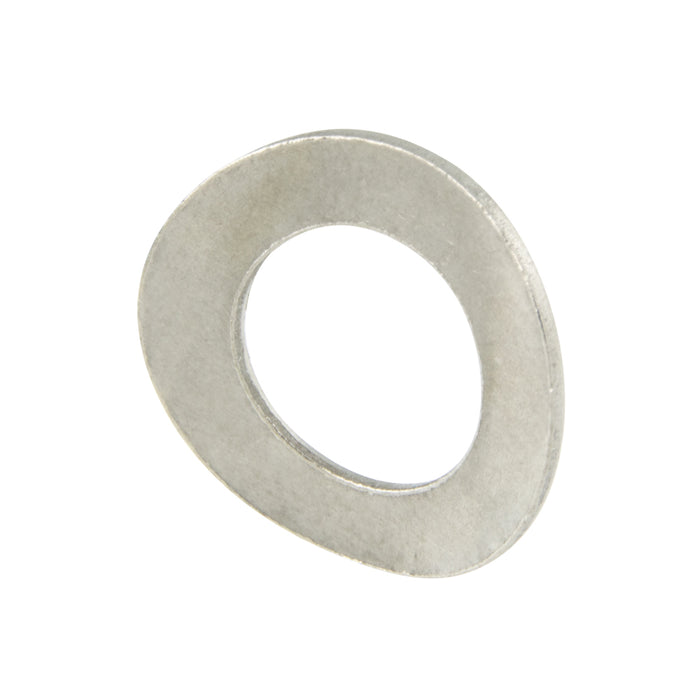

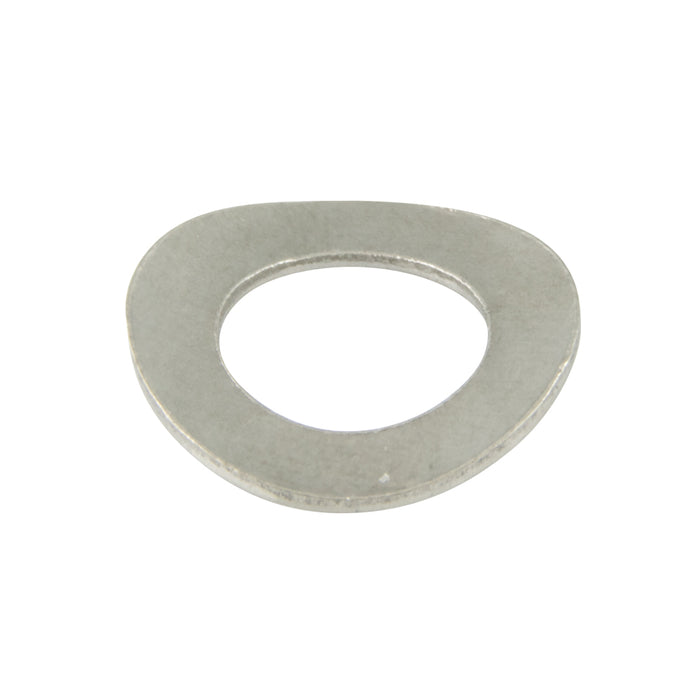

Single Wave Spring Washer, DIN 137B M12 A2 Stainless Steel DIN 137B/A2 M12 by Spaenaur Inc.

Part Number: 681-D21-1P

Legacy Part Number(s): 681-833

Single Wave Spring Washer, DIN 137B M12 A2 Stainless Steel DIN 137B/A2 M12

Availability:
To view pricing and availability please either log in with a registered email address or register a free account.

Specifications

Part Number 681-D21-1P
Catalog Page(s) D66
System of Measurement Metric
ROHS Compliant [yes]
Certificate of Conformance Available [yes]
Legacy Part Number 681-833
Washer Type Single Wave
Compatible Bolt Size 12 mm
Inside Diameter 13.0 mm Min.; .512" Min. Approximate
Outside Diameter 24 mm Max.; .945" Max. Approximate
Overall Height 2.5 mm Min.; .098" Min. Approximate
Thickness 1.2 mm; .047" Approxiamte
Material Stainless Steel
Material Grade | Material Class A2
Standard DIN 137B
