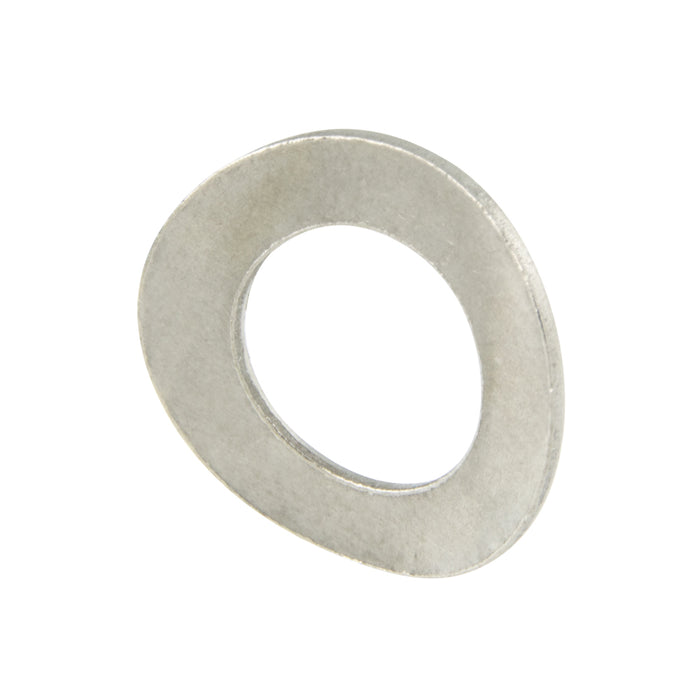

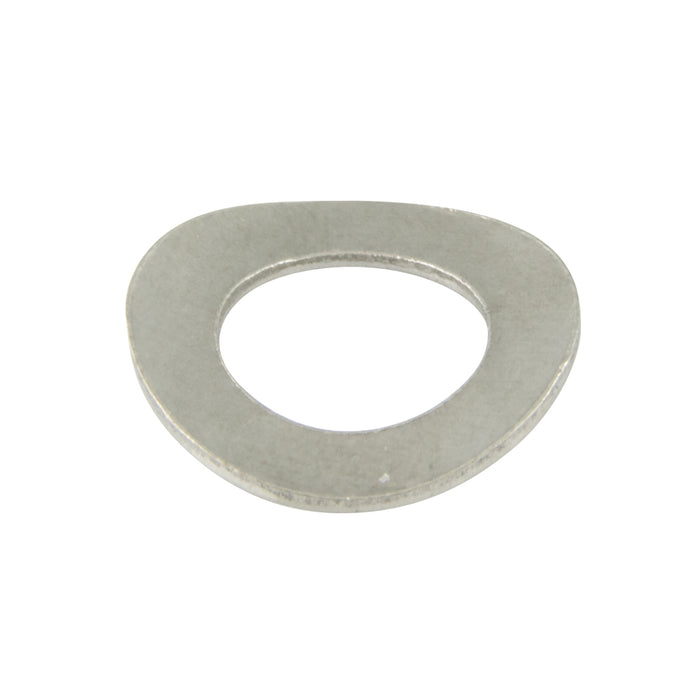

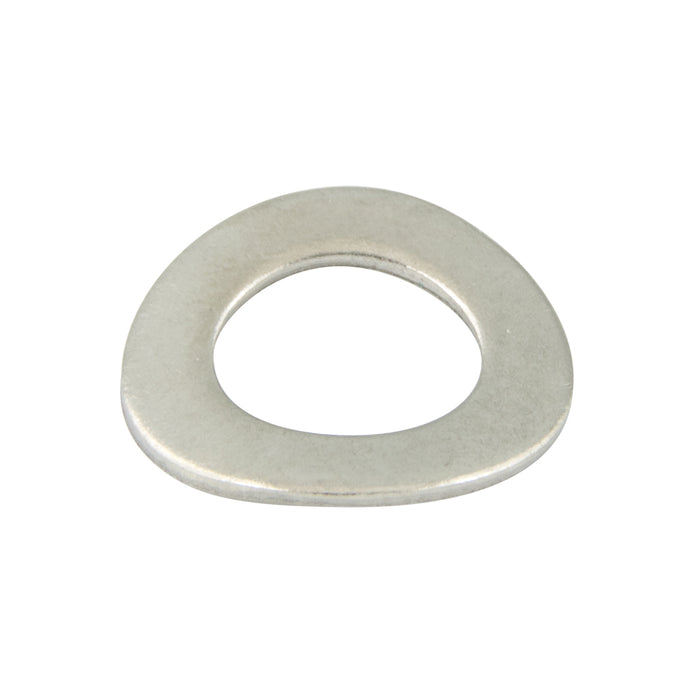

Single Wave Spring Washer, DIN 137B M6 A2 Stainless Steel Plain DIN 137B/A2 M6 by Spaenaur Inc.

Part Number: 681-830

Single Wave Spring Washer, DIN 137B M6 A2 Stainless Steel Plain DIN 137B/A2 M6

Availability:
To view pricing and availability please either log in with a registered email address or register a free account.

Specifications

Part Number 681-830
Catalog Page(s) D66
System of Measurement Metric
ROHS Compliant [yes]
Certificate of Conformance Available [yes]
Washer Type Single Wave
Compatible Bolt Size 6 mm
Inside Diameter 6.4 mm Min.; .252" Min. Approximate
Outside Diameter 12 mm Max.; .472" Max. Approximate
Overall Height 1.3 mm Min.; .057" Min. Approximate
Thickness 0.5 mm; .020" Approximate
Material Stainless Steel
Material Grade | Material Class A2
Standard DIN 137B
