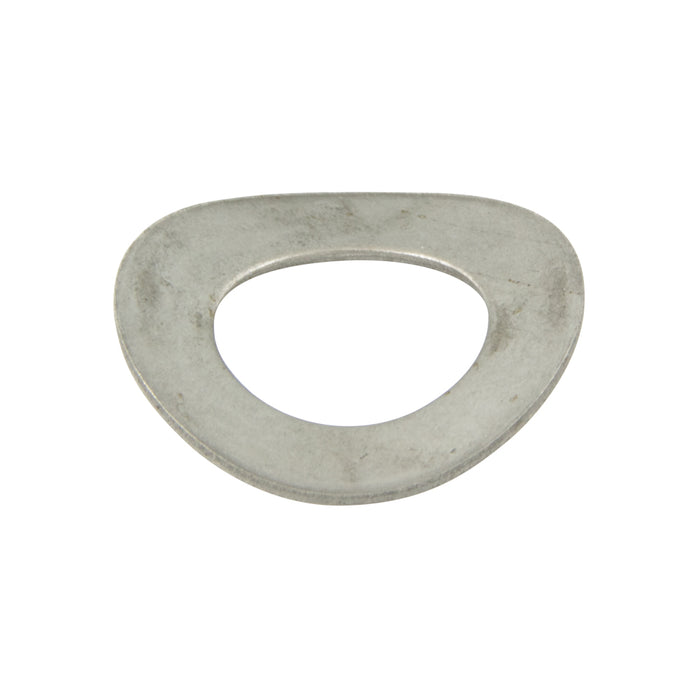

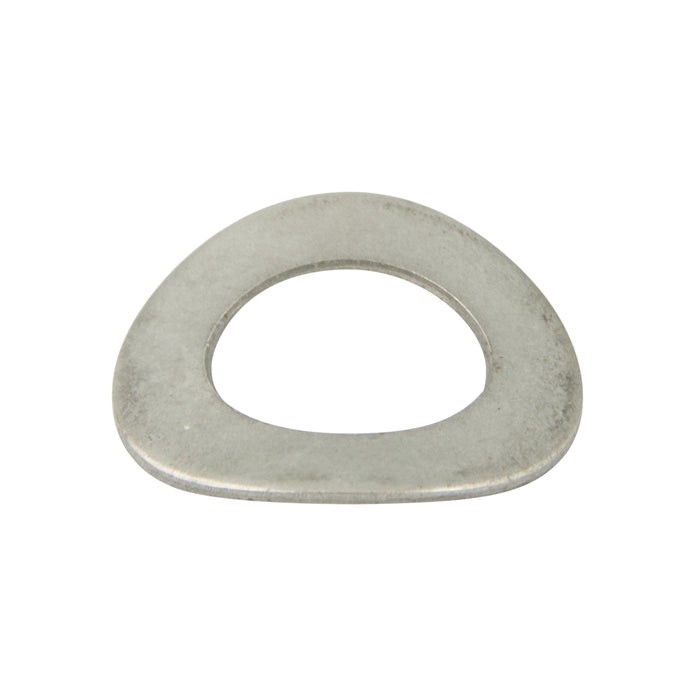

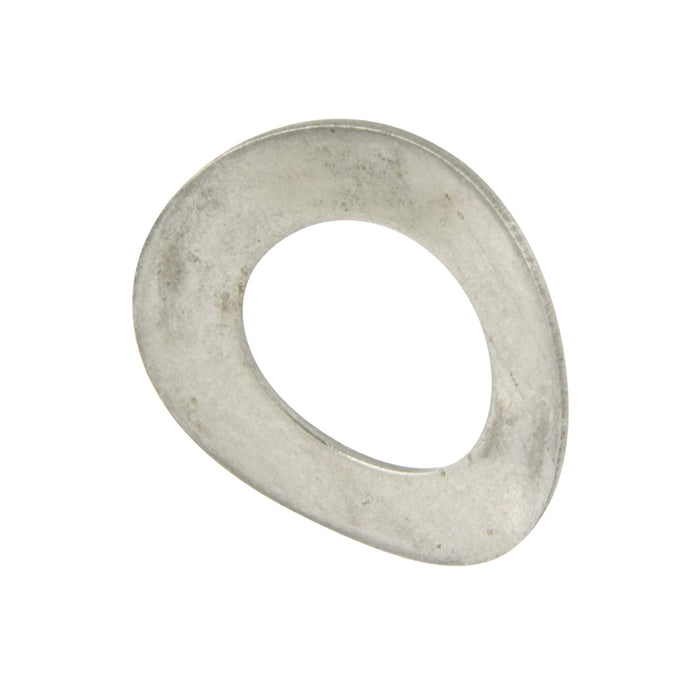

Bowed Spring Washer, DIN 137A M10 (10.5) A2 Stainless Steel Plain DIN 137A/A2 M10 by Spaenaur Inc.

Part Number: 681-824

Bowed Spring Washer, DIN 137A M10 (10.5) A2 Stainless Steel Plain DIN 137A/A2 M10

Availability:
To view pricing and availability please either log in with a registered email address or register a free account.

Specifications

Part Number 681-824

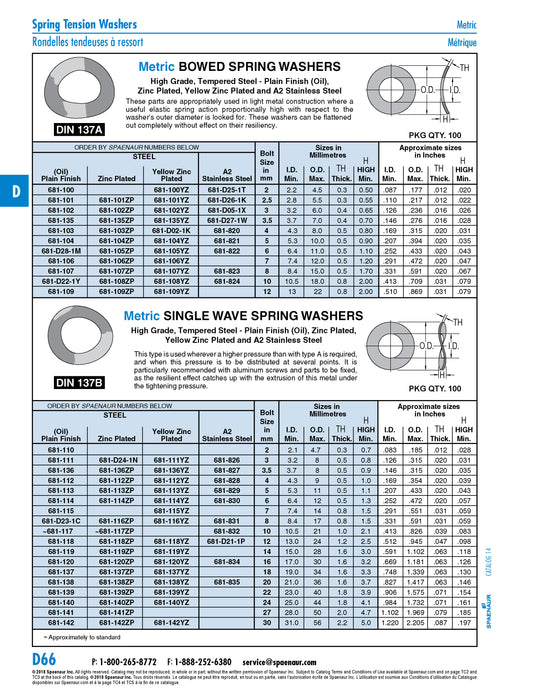

Catalog Page(s) D66
System of Measurement Metric
ROHS Compliant [yes]
Certificate of Conformance Available [yes]
Washer Type Bowed
Compatible Bolt Size 24 mm
Inside Diameter 10.5 mm Min.; .413" Min. Approximate
Outside Diameter 18.0 mm Max.; .709" Max. Approximate
Overall Height 2.00 mm Min.; .079" Min. Approximate
Thickness 0.8 mm; .031" Approximate
Material Stainless Steel
Material Grade | Material Class A2
Standard DIN 137A
