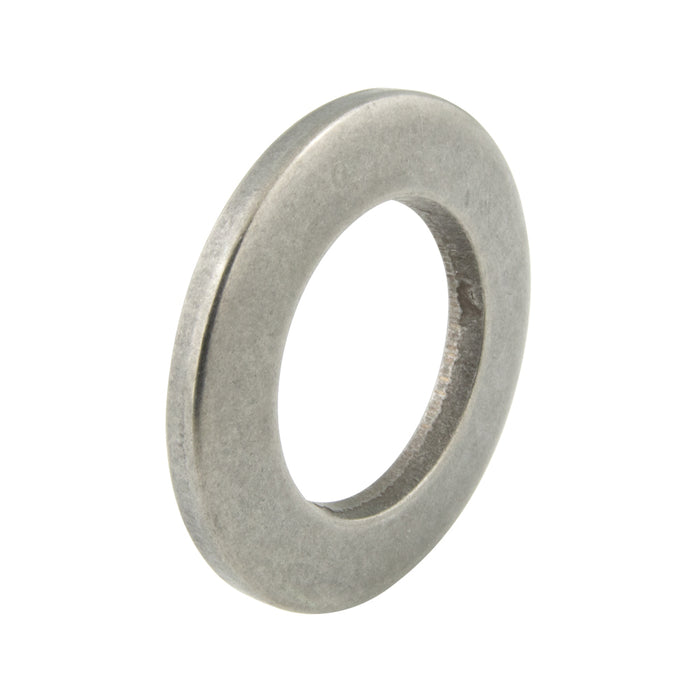

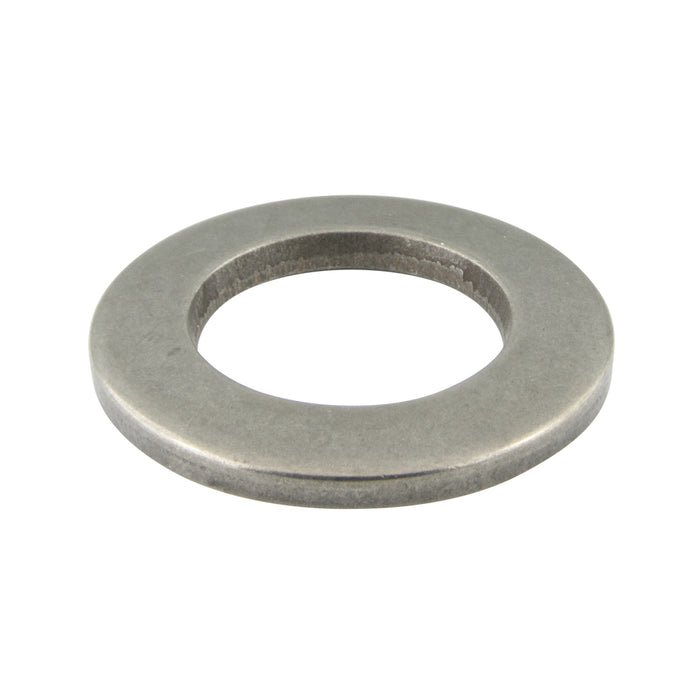

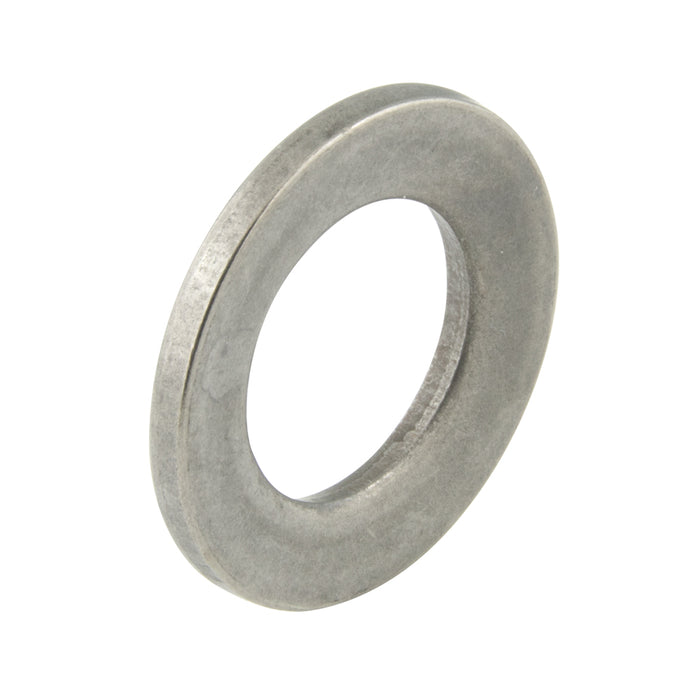

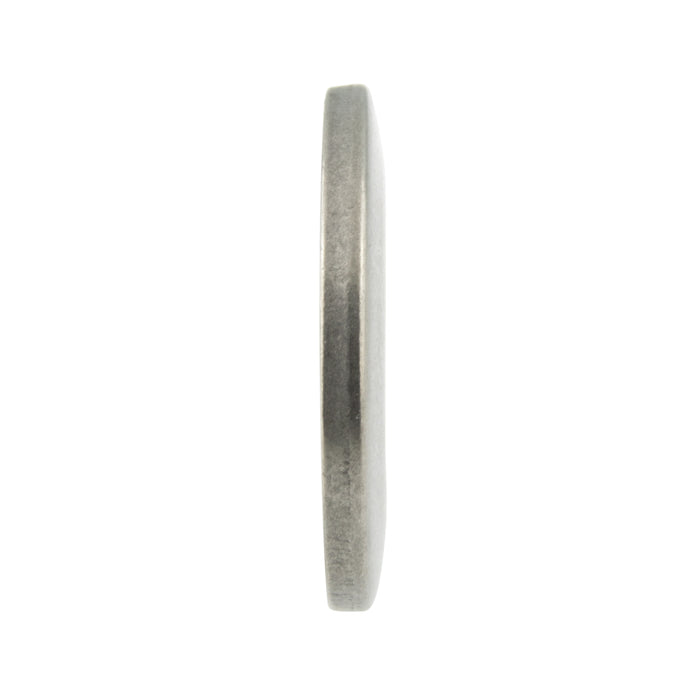

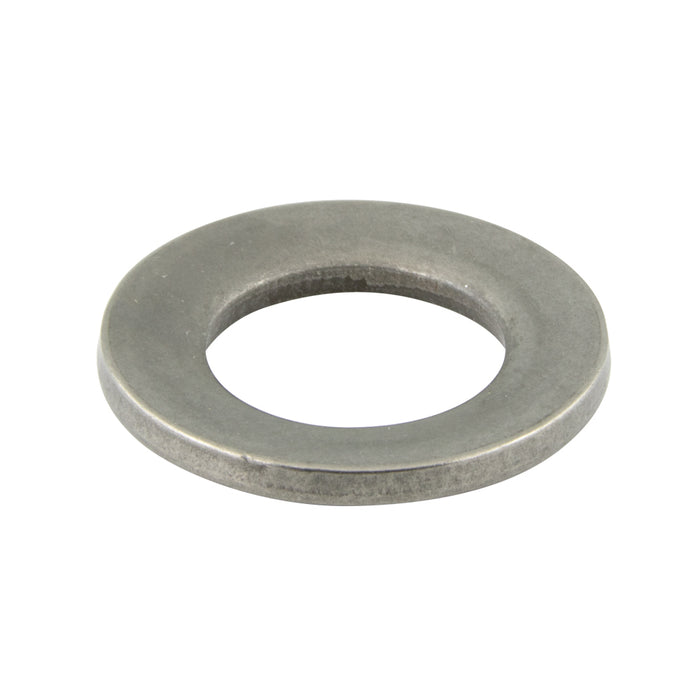

Disc Spring for Flange Application Bolt Size 1-7/8" 3.38" OD x 1.937" ID x 0.300" THK Stainless Steel 17/7 PH Plain

Part Number: 681-811

Disc Spring for Flange Application Bolt Size 1-7/8" 3.38" OD x 1.937" ID x 0.300" THK Stainless Steel 17/7 PH Plain

Availability:
To view pricing and availability please either log in with a registered email address or register a free account.

Specifications

Part Number 681-811

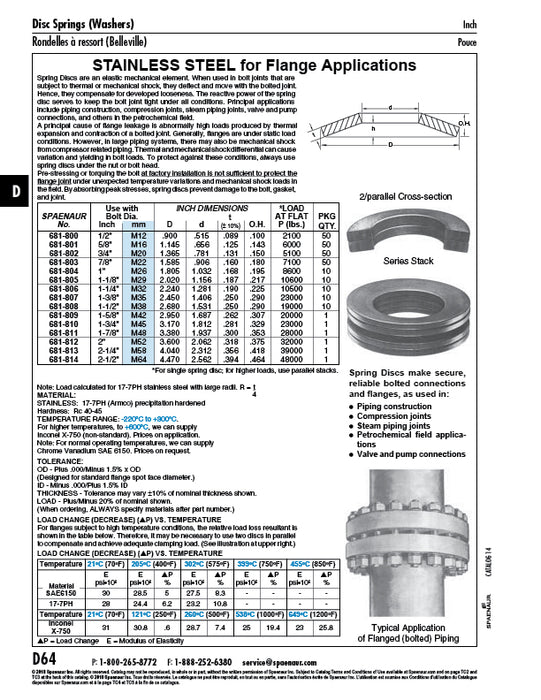

Catalog Page(s) D64
System of Measurement Imperial
Washer Type For Flanges
Material Stainless Steel
Compatible Hole Size 1-7/8"M48
Inside Diameter 1.937"
Outside Diameter 3.380"
Thickness 0.300"
Overall Height 0.353 (Ref.)"
Hardness RC40-RC45
