Disc Spring DIN 2093 AM-2009210 200mm OD x 92mm ID x 9.40mm TH Spring Steel Heat Treated Plain DIN 2093 200X92X9.4

Part Number: 681-403

Disc Spring DIN 2093 AM-2009210 200mm OD x 92mm ID x 9.40mm TH Spring Steel Heat Treated Plain DIN 2093 200X92X9.4

Availability:
To view pricing and availability please either log in with a registered email address or register a free account.

Specifications

Part Number 681-403

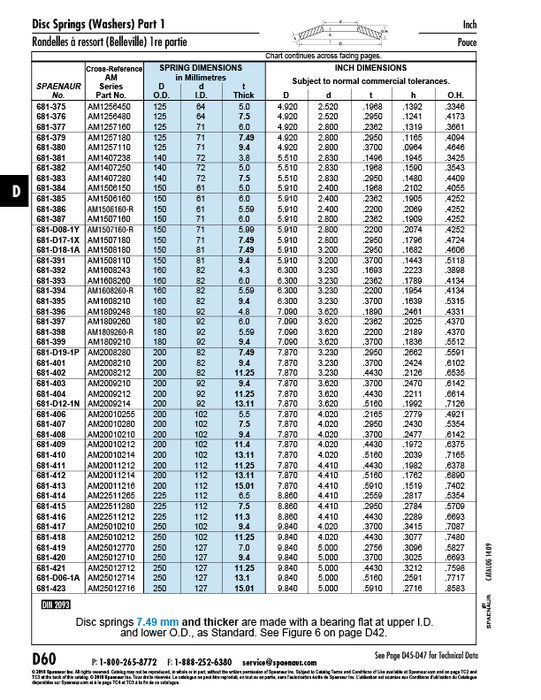

Catalog Page(s) D60,D61
System of Measurement Metric
ROHS Compliant [yes]
Certificate of Conformance Available [yes]
Vendor Series A-M™ Series
Washer Type Curved Non-Serrated
Material Spring Steel
Finish Plain
Compatible Hole Size 90 mm
Inside Diameter 92 mm
Outside Diameter 200 mm
Thickness 9.40 mm
Standard SAE 6150
