Disc Spring DIN 2093 AM-1255160 125mm OD x 51mm ID x 6.0mm TH Spring Steel Heat Treated Plain DIN 2093 125X51X6.0 by Spaenaur Inc.

Part Number: 681-368

Disc Spring DIN 2093 AM-1255160 125mm OD x 51mm ID x 6.0mm TH Spring Steel Heat Treated Plain DIN 2093 125X51X6.0

Availability:
To view pricing and availability please either log in with a registered email address or register a free account.

Specifications

Part Number 681-368

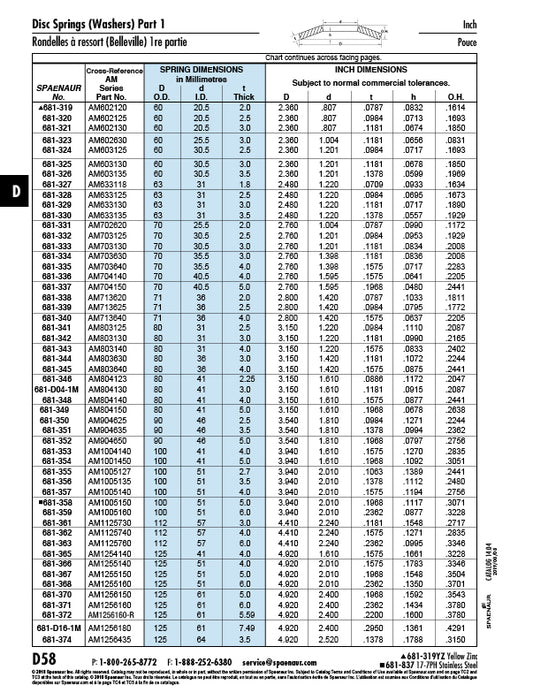

Catalog Page(s) D58,D59
System of Measurement Metric
ROHS Compliant [yes]
Certificate of Conformance Available [yes]
Vendor Series A-M™ Series
Washer Type Curved Non-Serrated
Material Spring Steel
Finish Plain
Compatible Hole Size 50 mm
Inside Diameter 51 mm
Outside Diameter 125 mm
Thickness 6.0 mm
Overall Height 9.4 mm
Standard SAE 6150
