Disc Spring DIN 2093 AM-1255140 125mm OD x 51mm ID x 4.0mm TH Spring Steel Heat Treated Plain DIN 2093 125X51X4.0

Part Number: 681-366

Disc Spring DIN 2093 AM-1255140 125mm OD x 51mm ID x 4.0mm TH Spring Steel Heat Treated Plain DIN 2093 125X51X4.0

Availability:
To view pricing and availability please either log in with a registered email address or register a free account.

Specifications

Part Number 681-366

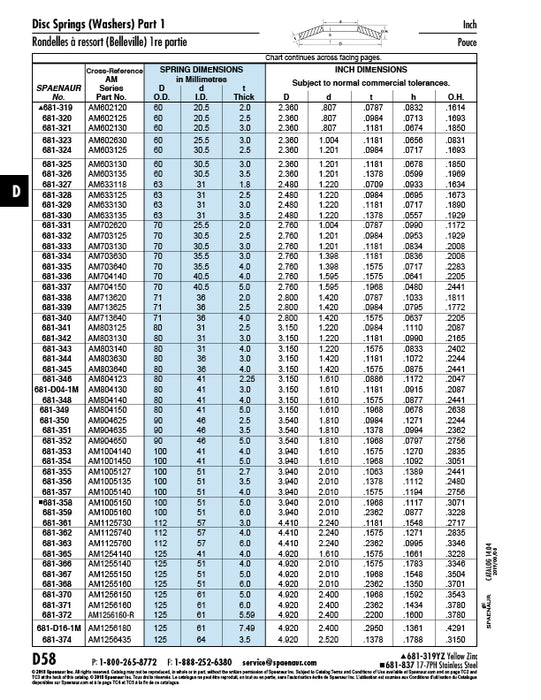

Catalog Page(s) D58,D59
System of Measurement Metric
Vendor Series A-M™ Series
Washer Type Curved Non-Serrated
Material Spring Steel
Finish Plain
Compatible Hole Size 50 mm
Inside Diameter 2.010";+0.012";51.054 mm;+0.305 mm
Outside Diameter 124.968 mm;-0.406 mm;4.920";-0.016"
Thickness 0.158";0.005";4.001 mm;0.127 mm
Overall Height 0.335";+0.012";-0.012";8.499 mm;+0.30 mm;-0.30 mm
Standard SAE 6150
