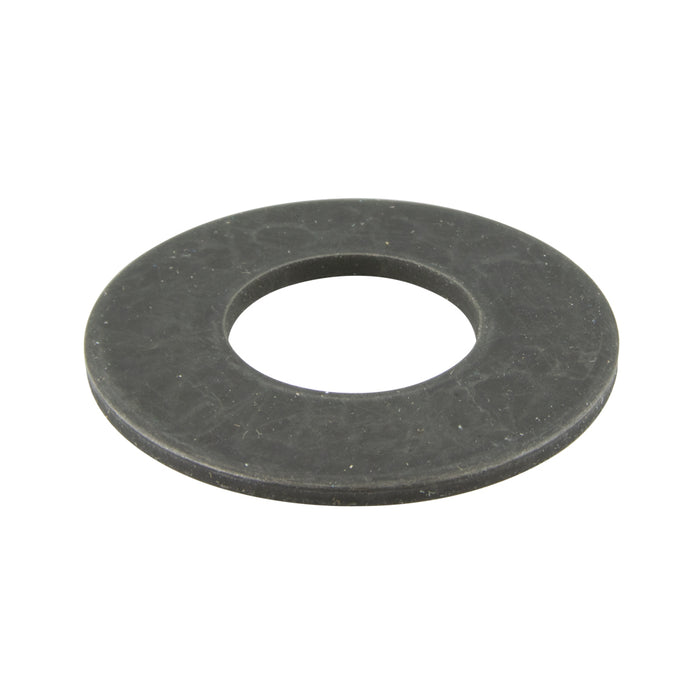

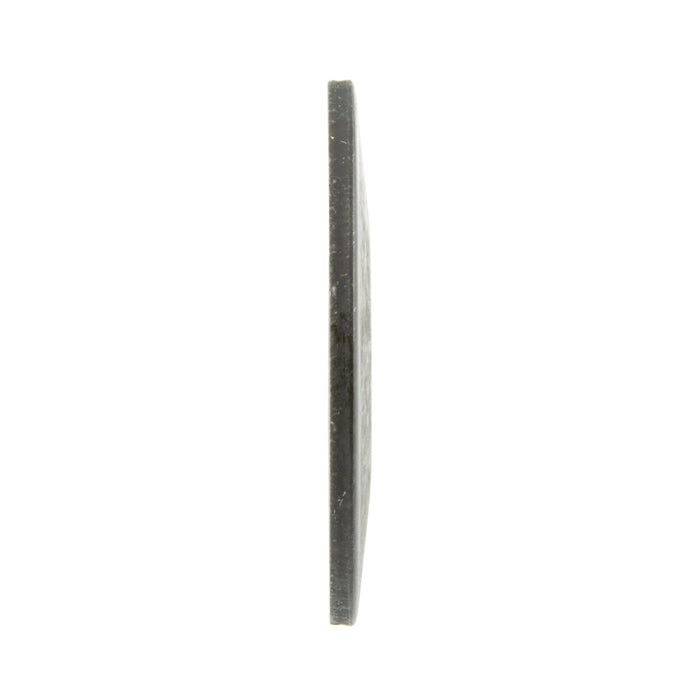

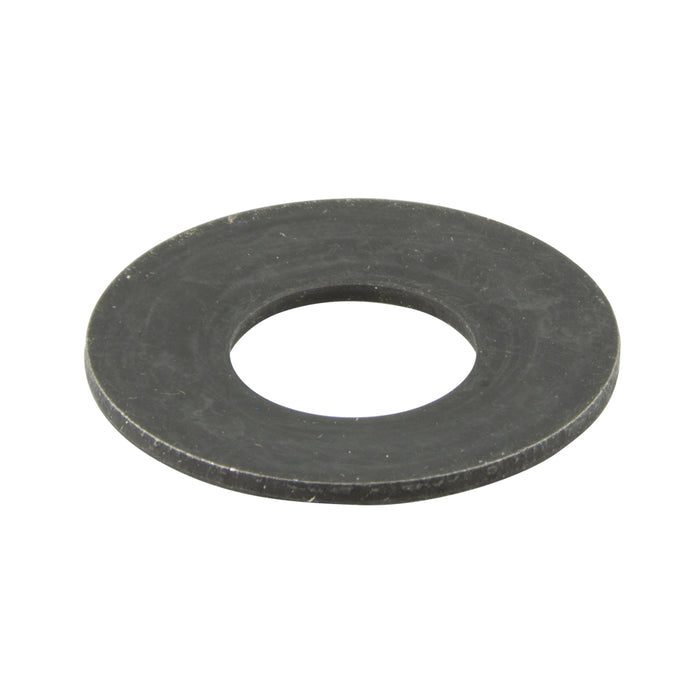

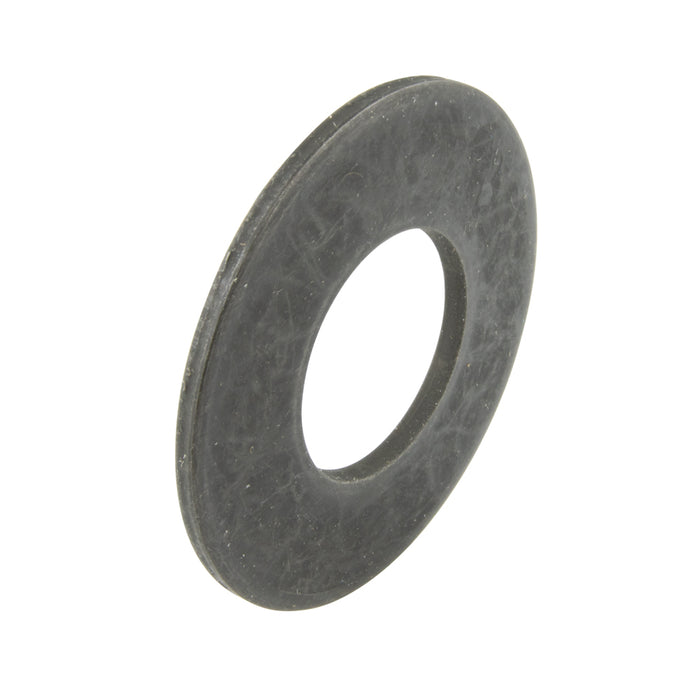

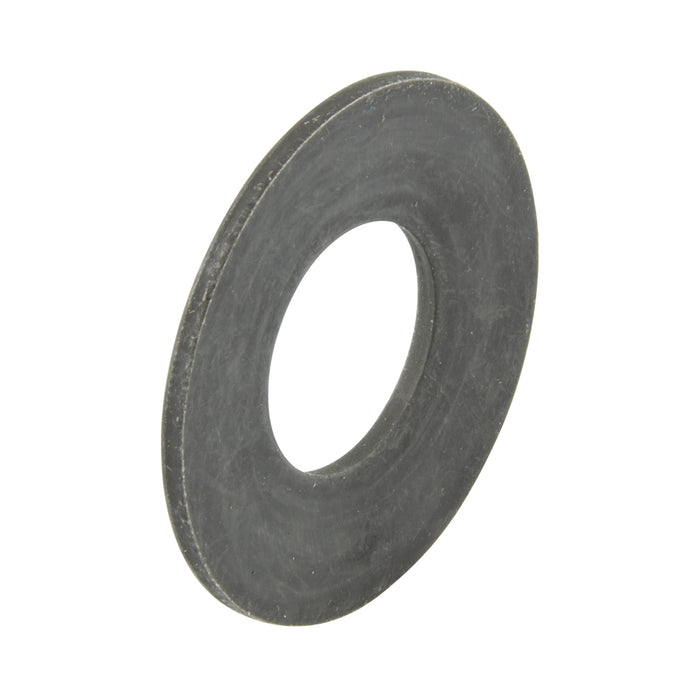

Disc Spring DIN 2093 AM-1005150 100mm OD x 51mm ID x 5.0mm TH Chrome Vanadium Steel Self-Colour DIN 2093 100X51X5.0 by Spaenaur Inc.

Part Number: 681-358

Disc Spring DIN 2093 AM-1005150 100mm OD x 51mm ID x 5.0mm TH Chrome Vanadium Steel Self-Colour DIN 2093 100X51X5.0

Availability:
To view pricing and availability please either log in with a registered email address or register a free account.

Specifications

Part Number 681-358

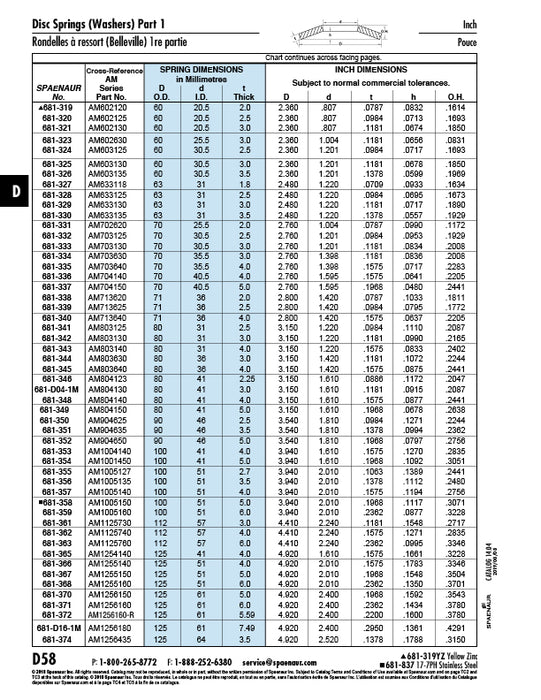

Catalog Page(s) D58,D59
System of Measurement Metric
ROHS Compliant [yes]
Certificate of Conformance Available [yes]
Vendor Series A-M™ Series
Washer Type Curved Non-Serrated
Material Chrome Vanadium Steel
Finish Plain
Compatible Hole Size 50 mm
Inside Diameter 51 mm
Outside Diameter 100 mm
Thickness 5 mm
Overall Height 7.80 mm
Standard SAE 6150
