Disc Spring DIN 2093 AM-803640 80mm OD x 36mm ID x 4.0mm TH Spring Steel Heat Treated Plain DIN 2093 80X36X4.0 by Spaenaur Inc.

Part Number: 681-345

Disc Spring DIN 2093 AM-803640 80mm OD x 36mm ID x 4.0mm TH Spring Steel Heat Treated Plain DIN 2093 80X36X4.0

Availability:
To view pricing and availability please either log in with a registered email address or register a free account.

Specifications

Part Number 681-345

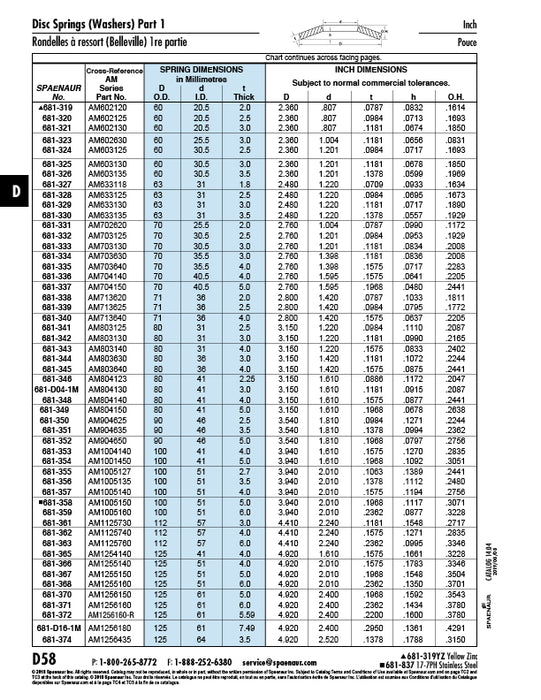

Catalog Page(s) D58,D59
System of Measurement Metric
Vendor Series A-M™ Series
Washer Type Curved Non-Serrated
Material Spring Steel
Finish Plain
Compatible Hole Size 35 mm
Inside Diameter 1.420";+0.010";36.068 mm;+0.254 mm
Outside Diameter 3.150";-0.012";80.010 mm;-0.305 mm
Thickness 0.158";0.005";4.001 mm;0.127 mm
Overall Height 0.244";+0.012";-0.012";6.200 mm;+0.30 mm;-0.15 mm
Standard SAE 6150
