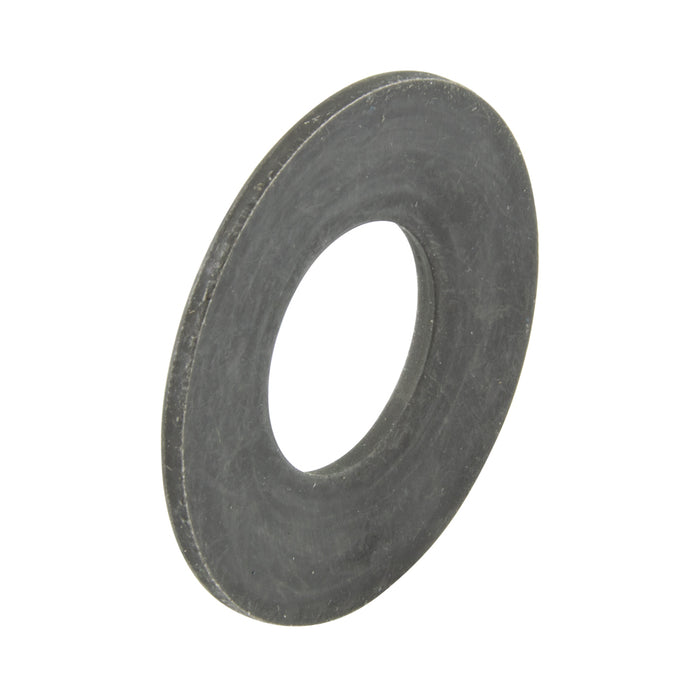

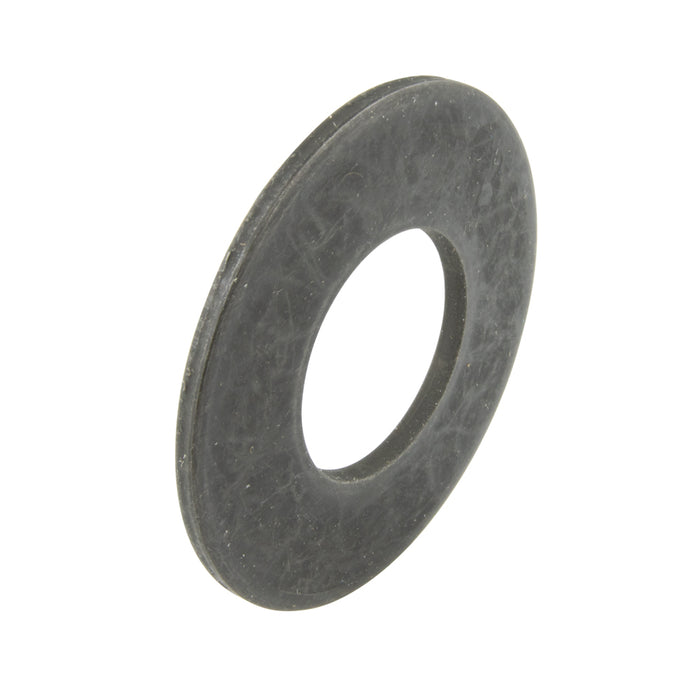

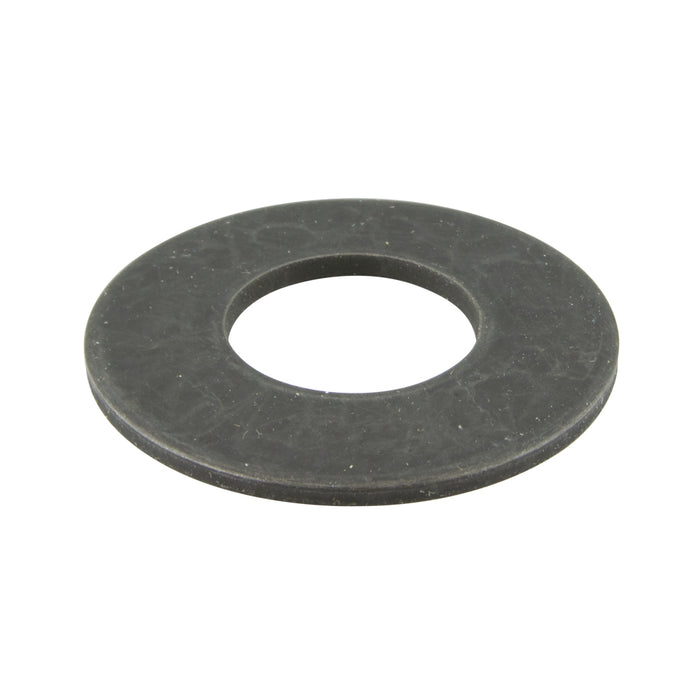

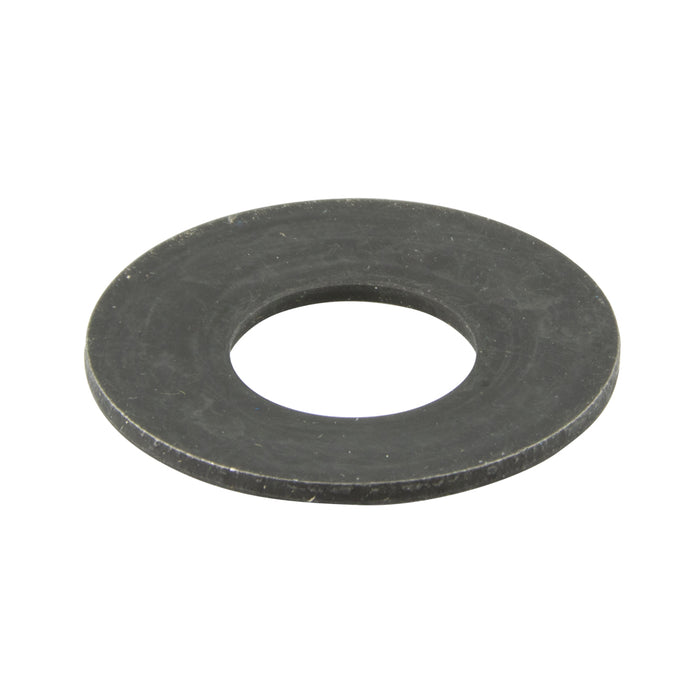

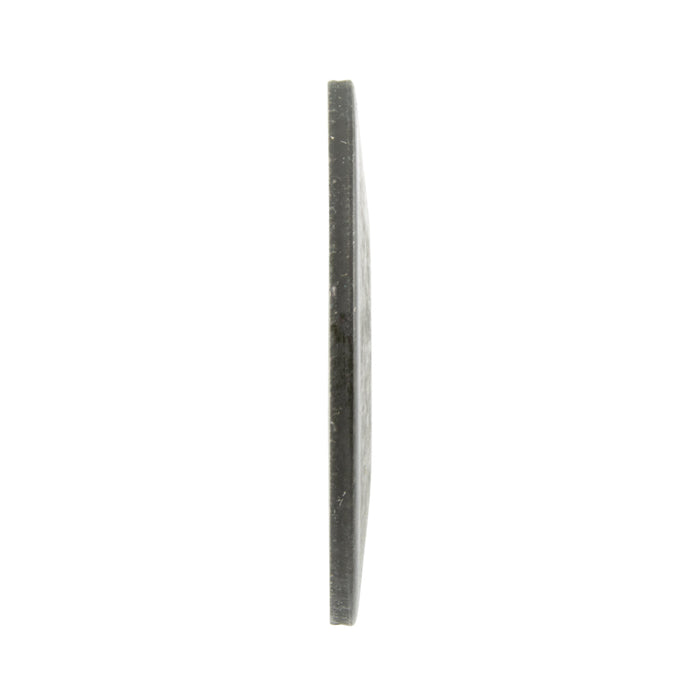

Disc Spring DIN 2093 AM-803130 80mm OD x 31mm ID x 3.0mm TH Chrome Vanadium Steel Self-Colour DIN 2093 80X31X3.0 by Spaenaur Inc.

Part Number: 681-342

Disc Spring DIN 2093 AM-803130 80mm OD x 31mm ID x 3.0mm TH Chrome Vanadium Steel Self-Colour DIN 2093 80X31X3.0

Availability:
To view pricing and availability please either log in with a registered email address or register a free account.

Specifications

Part Number 681-342

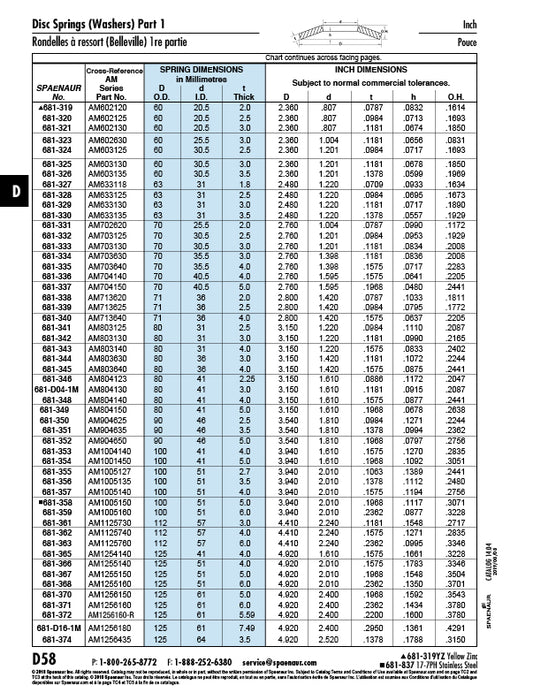

Catalog Page(s) D58,D59
System of Measurement Metric
Vendor Series A-M™ Series
Washer Type Curved Non-Serrated
Material Chrome Vanadium Steel
Finish Plain
Compatible Hole Size 30 mm
Inside Diameter 1.220";+0.010";31 mm;+0.254 mm
Outside Diameter 3.150";-0.014";80 mm;-0.305 mm
Thickness 0.1181";+0.0016";-0.0047";3.0 mm;+0.02 mm;-0.06 mm
Overall Height 0.2165"
Standard SAE 6150
