Disc Spring DIN 2093 AM-502515 50mm OD x 25.4mm ID x 1.5mm TH Spring Steel Heat Treated Plain DIN 2093 50X25.4X1.5 by Spaenaur Inc.

Part Number: 681-311

Disc Spring DIN 2093 AM-502515 50mm OD x 25.4mm ID x 1.5mm TH Spring Steel Heat Treated Plain DIN 2093 50X25.4X1.5

Availability:
To view pricing and availability please either log in with a registered email address or register a free account.

Specifications

Part Number 681-311

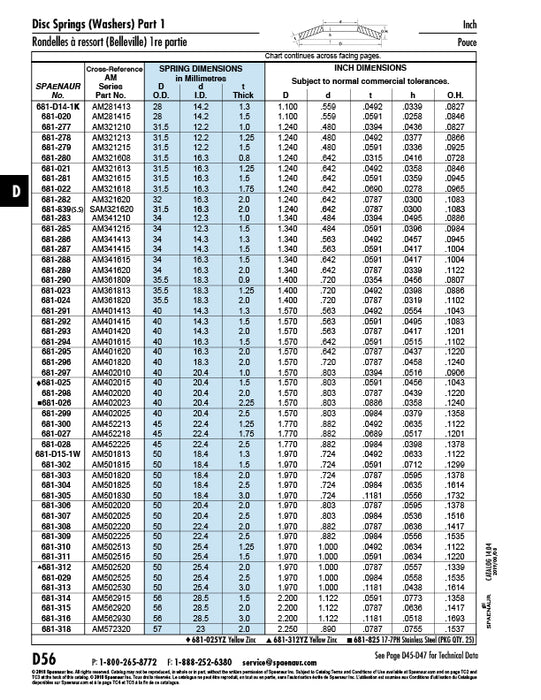

Catalog Page(s) D56,D57
System of Measurement Metric
Vendor Series A-M™ Series
Washer Type Curved Non-Serrated
Material Spring Steel
Finish Plain
Compatible Hole Size 25 mm
Inside Diameter 1.970";+0.012";25.400 mm;+0.203 mm
Outside Diameter 1.970";-0.010";50.038 mm;-0.305 mm
Thickness 0.059";0.002";1.501 mm;0.051 mm
Overall Height 0.122";+0.012";-0.006";3.099 mm;+0.30 mm;-0.15 mm
Standard SAE 6150
