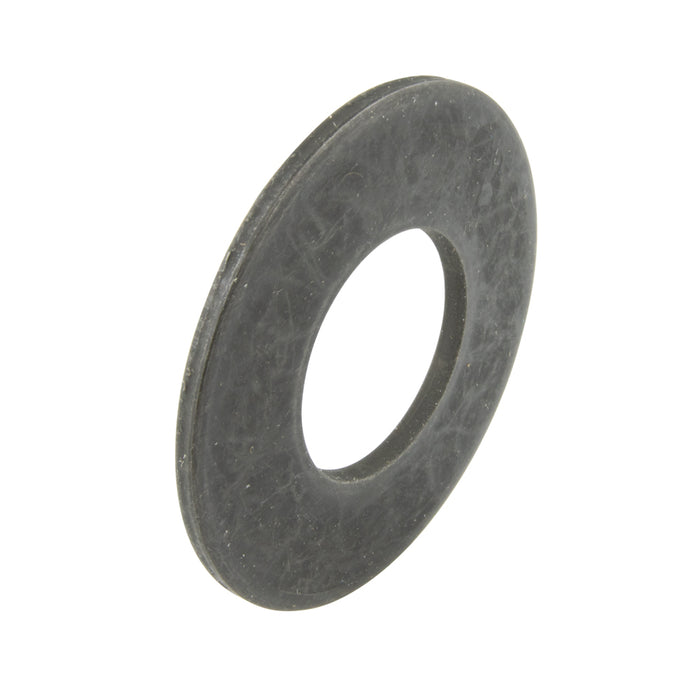

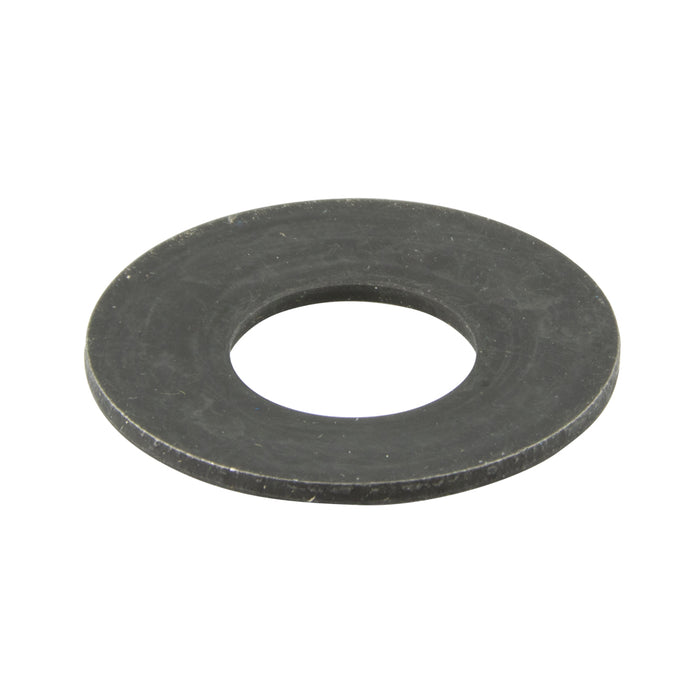

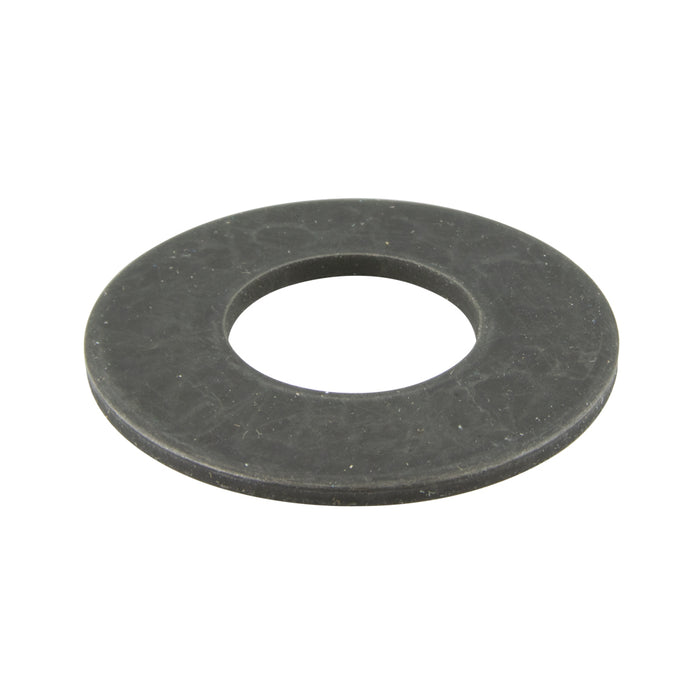

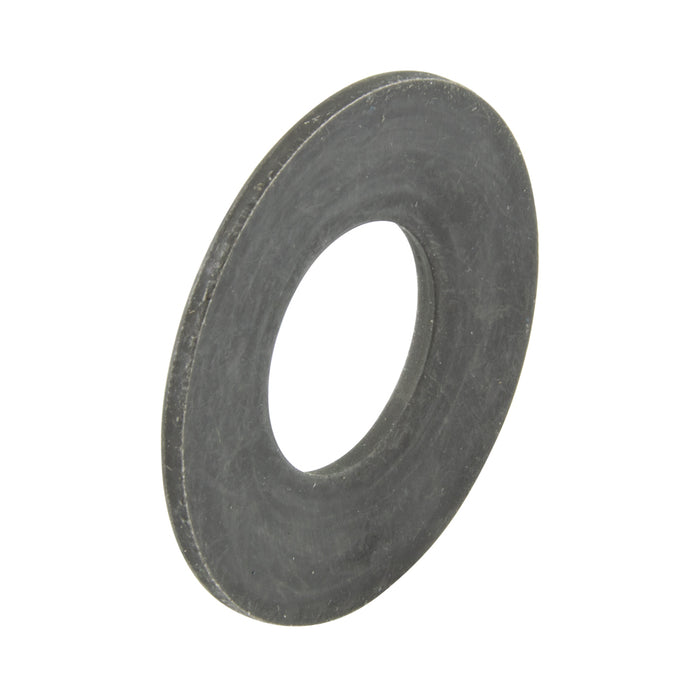

Disc Spring DIN 2093 AM-502225 50mm OD x 22.4mm ID x 2.5mm TH Chrome Vanadium Steel Self-Colour DIN 2093 50X22.4X2.5

Part Number: 681-309

Disc Spring DIN 2093 AM-502225 50mm OD x 22.4mm ID x 2.5mm TH Chrome Vanadium Steel Self-Colour DIN 2093 50X22.4X2.5

Availability:
To view pricing and availability please either log in with a registered email address or register a free account.

Specifications

Part Number 681-309

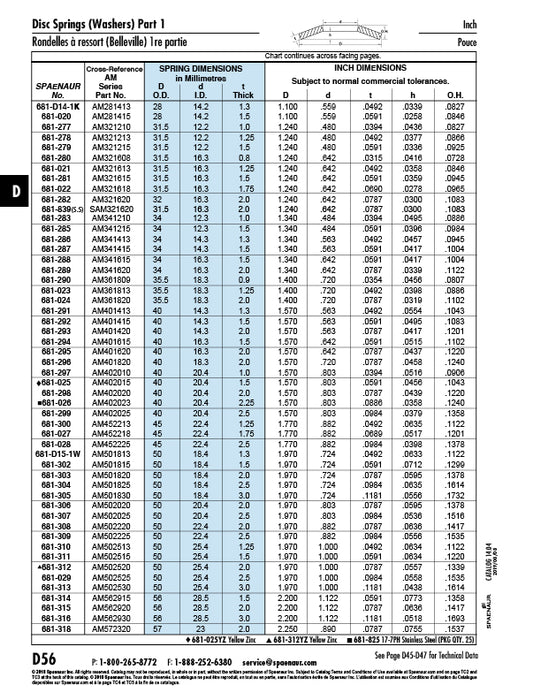

Catalog Page(s) D56,D57
System of Measurement Metric
ROHS Compliant [yes]
Certificate of Conformance Available [yes]
Vendor Series A-M™ Series
Washer Type Curved Non-Serrated
Material Chrome Vanadium Steel
Finish Plain
Compatible Hole Size 22 mm
Inside Diameter 22.4 mm
Outside Diameter 50 mm
Thickness 2.5 mm
Overall Height 3.90 mm
Standard SAE 6150
