Disc Spring DIN 2093 AM-321213 31.5mm OD x 12.2mm ID x 1.25mm TH Spring Steel Heat Treated Plain DIN 2093 32X12.2X1.3 by Spaenaur Inc.

Part Number: 681-278

Disc Spring DIN 2093 AM-321213 31.5mm OD x 12.2mm ID x 1.25mm TH Spring Steel Heat Treated Plain DIN 2093 32X12.2X1.3

Availability:
To view pricing and availability please either log in with a registered email address or register a free account.

Specifications

Part Number 681-278

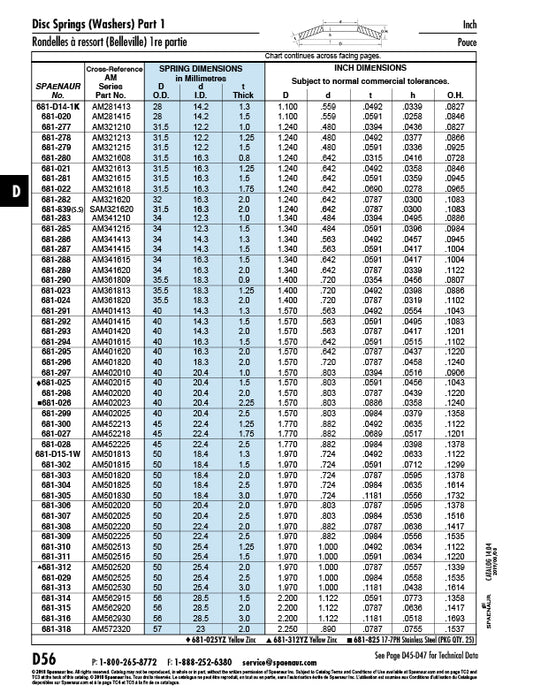

Catalog Page(s) D56,D57
System of Measurement Metric
Vendor Series A-M™ Series
Washer Type Curved Non-Serrated
Material Spring Steel
Finish Plain
Compatible Hole Size 12 mm
Inside Diameter 0.480";+0.007";12.192 mm;+0.178 mm
Outside Diameter 1.240";-0.010";31.496 mm;-0.254 mm
Thickness 0.049";0.002";1.250 mm;0.051 mm
Overall Height 0.087";+0.012";-0.004";2.200 mm;+0.30 mm;-0.10 mm
Standard SAE 6150
