Disc Spring DIN 2093 AM-231210 23mm OD x 12.2mm ID x 1.0mm THK Spring Steel Heat Treated Plain DIN 2093 23X12.2X1.0 by Spaenaur Inc.

Part Number: 681-261

Disc Spring DIN 2093 AM-231210 23mm OD x 12.2mm ID x 1.0mm THK Spring Steel Heat Treated Plain DIN 2093 23X12.2X1.0

Availability:
To view pricing and availability please either log in with a registered email address or register a free account.

Specifications

Part Number 681-261

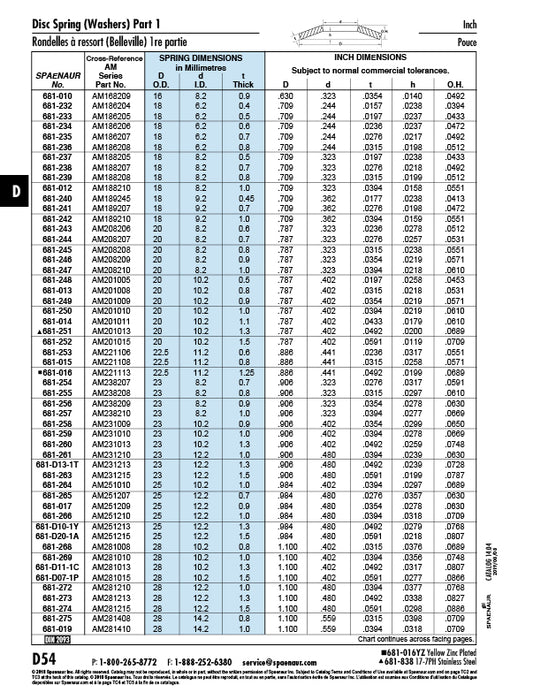

Catalog Page(s) D54,D55
System of Measurement Metric
ROHS Compliant [yes]
Certificate of Conformance Available [yes]
Vendor Series A-M™ Series
Washer Type Curved Non-Serrated
Material Spring Steel
Finish Plain
Compatible Hole Size 12 mm
Inside Diameter 12.2 mm
Outside Diameter 23 mm
Thickness 1.0 mm
Overall Height 1.6 mm
Height 0.099"
Standard SAE 6150
