Disc Spring DIN 2093C AM-221106 22.5 OD x 11.2 ID x .60 TH Spring Steel Heat Treated Plain DIN 2093 22.5X11.2X0.60 by Spaenaur Inc.

*Representative images - please refer to the product specifications for exact product information

Part Number: 681-253

Disc Spring DIN 2093C AM-221106 22.5 OD x 11.2 ID x .60 TH Spring Steel Heat Treated Plain DIN 2093 22.5X11.2X0.60

Availability:
To view pricing and availability please either log in with a registered email address or register a free account.

Specifications

Part Number 681-253

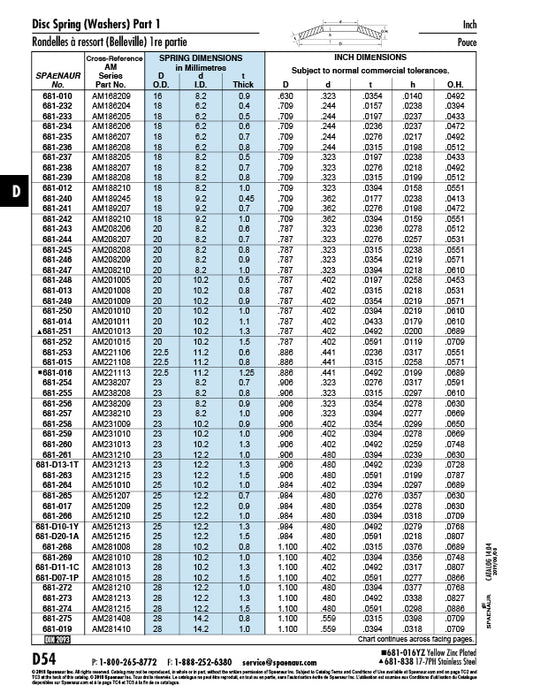

Catalog Page(s) D54,D55
System of Measurement Metric
ROHS Compliant [yes]
Certificate of Conformance Available [yes]
Vendor Series A-M™ Series
Vendor Series A-M™ Series
Washer Type Curved Non-Serrated
Compatible Hole Size 11 mm
Inside Diameter 11.2 mm
Outside Diameter 22.5 mm
Thickness 0.6 mm
Material Spring Steel
Finish Plain
Standard DIN 2093
Height 0.3212"
Overall Height 1.40 mm
