Disc Spring DIN 2093 AM-156207 15mm OD x 6.2mm ID x 0.7mm TH Spring Steel Heat Treated Plain DIN 2093 15X6.2X0.7 by Spaenaur Inc.

Part Number: 681-227

Disc Spring DIN 2093 AM-156207 15mm OD x 6.2mm ID x 0.7mm TH Spring Steel Heat Treated Plain DIN 2093 15X6.2X0.7

Availability:
To view pricing and availability please either log in with a registered email address or register a free account.

Specifications

Part Number 681-227

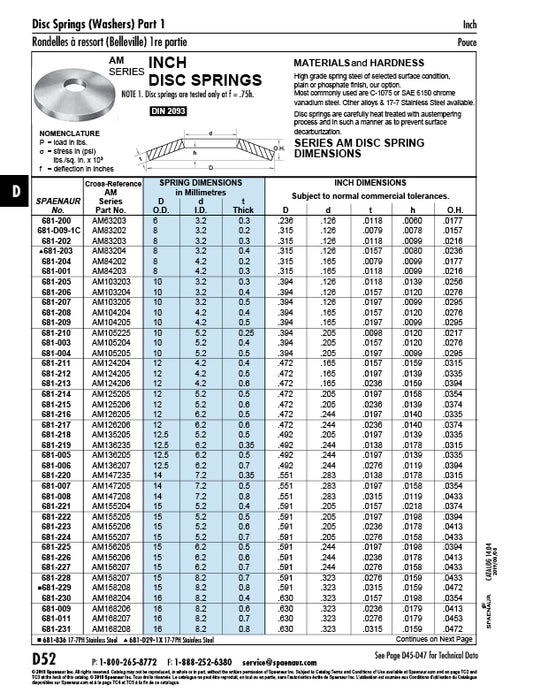

Catalog Page(s) D52,D53
System of Measurement Metric
ROHS Compliant [yes]
Certificate of Conformance Available [yes]
Vendor Series A-M™ Series
Washer Type Curved Non-Serrated
Material Spring Steel
Finish Plain
Compatible Hole Size 6 mm
Inside Diameter 6.2 mm
Outside Diameter 15 mm
Thickness 0.7 mm
Overall Height 1.1 mm
Height 0.0554"
Standard SAE 6150
