Disc Spring DIN 2093C AM-147235 14mm OD x 7.2mm ID x 0.35mm TH Spring Steel Heat Treated Plain DIN 2093 14X7.2X0.35 by Spaenaur Inc.

Part Number: 681-220

Disc Spring DIN 2093C AM-147235 14mm OD x 7.2mm ID x 0.35mm TH Spring Steel Heat Treated Plain DIN 2093 14X7.2X0.35

Availability:
To view pricing and availability please either log in with a registered email address or register a free account.

Specifications

Part Number 681-220

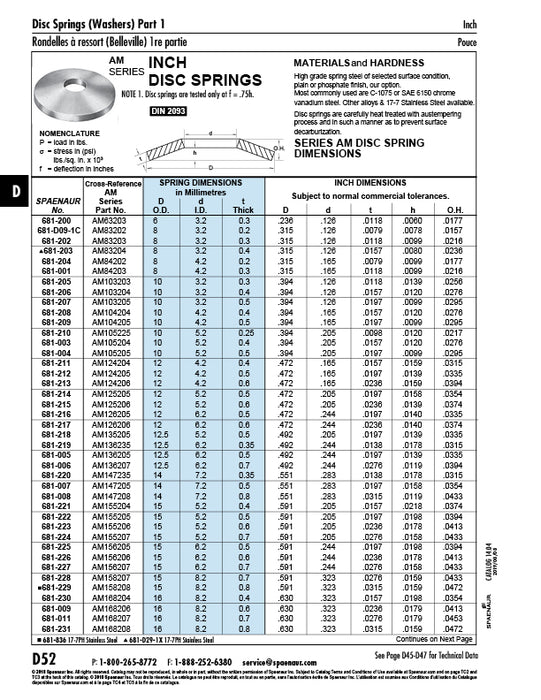

Catalog Page(s) D52,D53
System of Measurement Metric
Vendor Series A-M™ Series
Washer Type Curved Non-Serrated
Material Spring Steel
Finish Plain
Compatible Hole Size 7 mm
Inside Diameter 0.283";+0.007";7.188 mm;+0.152 mm
Outside Diameter 0.551";-0.007";13.995 mm;-0.203 mm
Thickness 0.014";0.002";0.351 mm;-0.025 mm
Overall Height 0.032";+0.004";-0.002";0.800 mm;+0.10 mm;-0.05 mm
Height 0.0398"
Standard DIN 2093
