Specifications

Part Number 681-120
Catalog Page(s) D66
System of Measurement Metric
ROHS Compliant [yes]
Certificate of Conformance Available [yes]

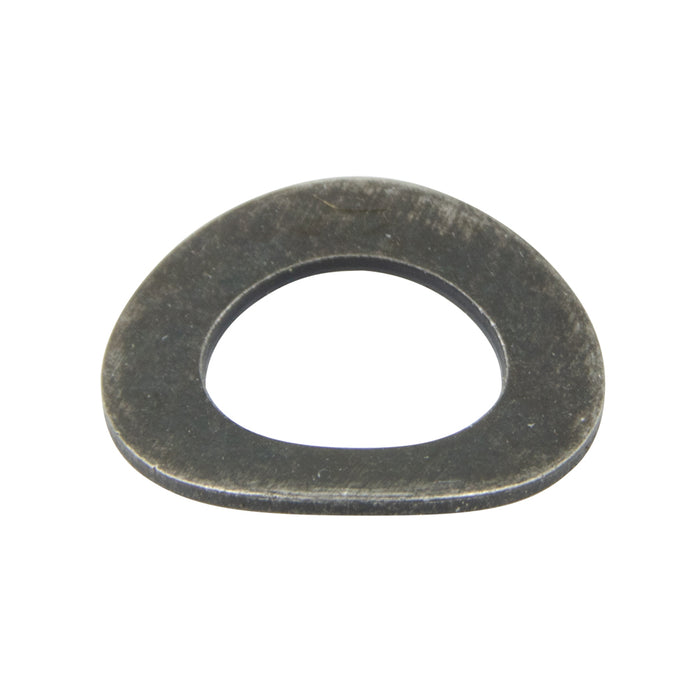

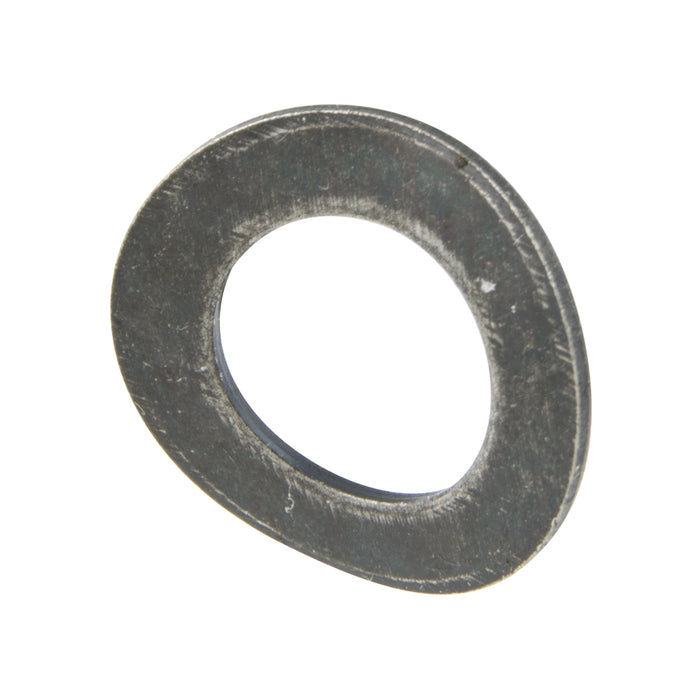

Washer Type Single Wave
Compatible Bolt Size 16 mm
Inside Diameter 17.0 mm Min.; .669" Min. Approximate
Outside Diameter 30 mm Max.; 1.181" Max. Approximate
Overall Height 3.2 mm Min.; .126" Min. Approximate
Thickness 1.6 mm; .063" Approximate
Material Tempered Steel
Finish Plain Oil
Standard DIN 137B
