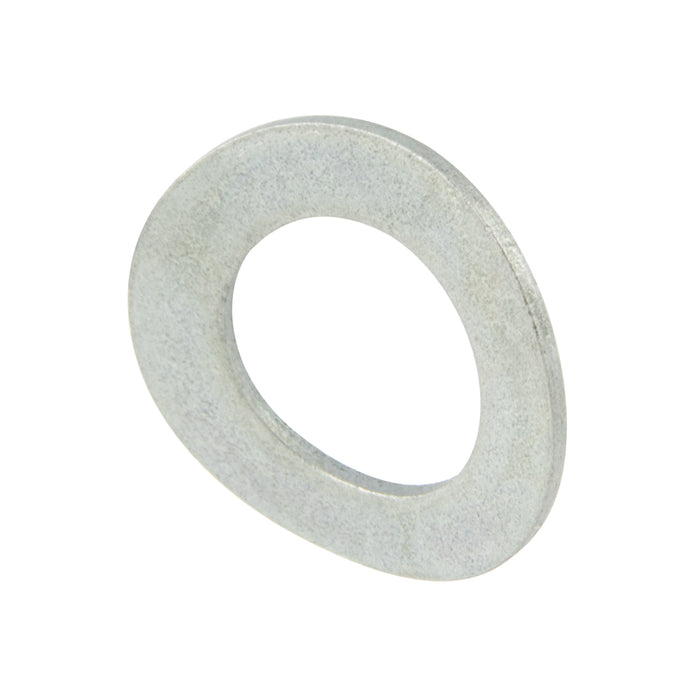

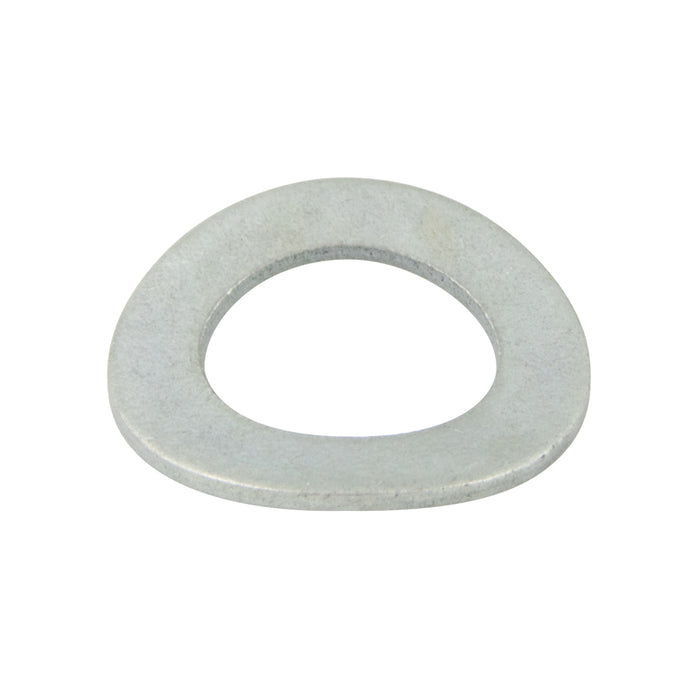

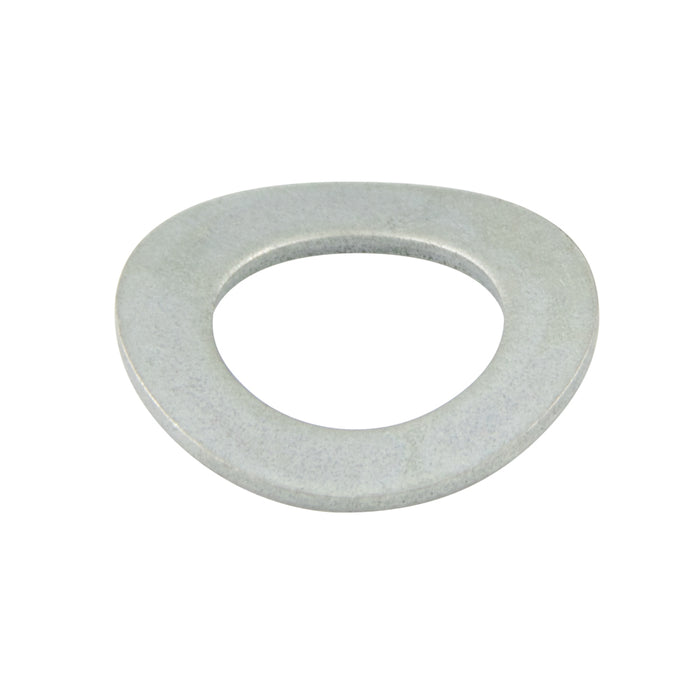

Single Wave Spring Washer ~DIN 137B M10 Spring Steel Mechanical Zinc Plated ~DIN 137B/ST-ZP M10 by Spaenaur Inc.

Part Number: 681-117ZP

Single Wave Spring Washer ~DIN 137B M10 Spring Steel Mechanical Zinc Plated ~DIN 137B/ST-ZP M10

Availability:
To view pricing and availability please either log in with a registered email address or register a free account.

Specifications

Part Number 681-117ZP
Catalog Page(s) D66
System of Measurement Metric
ROHS Compliant [yes]
Certificate of Conformance Available [yes]
Washer Type Single Wave
Compatible Bolt Size 10 mm
Inside Diameter 10.5 mm Min.; .413" Min. Approximate
Outside Diameter 21 mm Max.; .826" Max. Approximate
Overall Height 2.1 mm Min.; .083" Min. Approximate
Thickness 1.0 mm; .039" Approximate
Material Tempered Steel
Finish Zinc Plated
Standard DIN 137B
