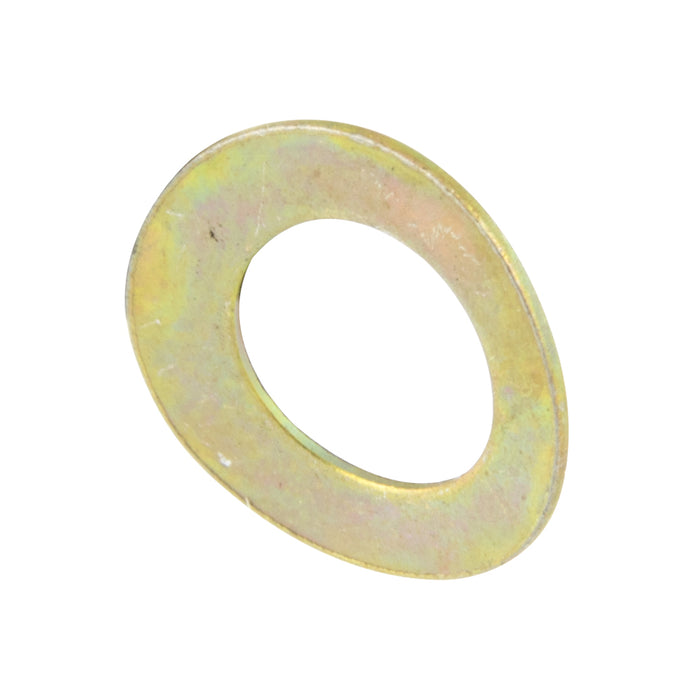

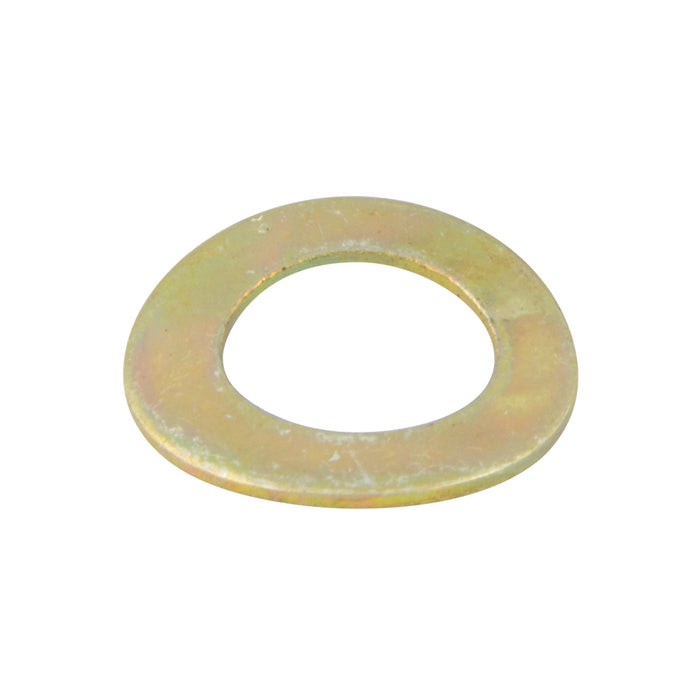

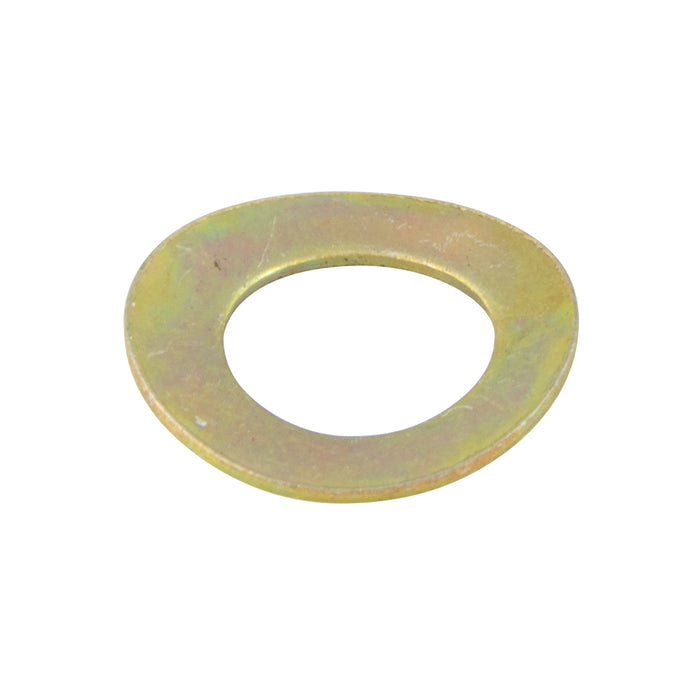

Bowed Spring Washer DIN 137A M10 Spring Steel Yellow Zinc Plated DIN 137A/ST-YZ M10 by Spaenaur Inc.

Part Number: 681-108YZ

Bowed Spring Washer DIN 137A M10 Spring Steel Yellow Zinc Plated DIN 137A/ST-YZ M10

Availability:
To view pricing and availability please either log in with a registered email address or register a free account.

Specifications

Part Number 681-108YZ
Catalog Page(s) D66
System of Measurement Metric
ROHS Compliant [yes]
Certificate of Conformance Available [yes]
Washer Type Bowed
Compatible Bolt Size 24 mm
Inside Diameter 10.5 mm Min.; .413" Min. Approximate
Outside Diameter 18.0 mm Max.; .709" Max. Approximate
Overall Height 2.00 mm Min.; .079" Min. Approximate
Thickness 0.8 mm; .031" Approximate
Material Tempered Steel
Finish Yellow Zinc Plated
Standard DIN 137A
