Disc Spring DIN 2093B AM-251209 25mm OD x 12.2mm ID x .9mm TH Spring Steel Heat Treated Plain DIN 2093 25X12.2X0.9 by Spaenaur Inc.

*Representative images - please refer to the product specifications for exact product information

Part Number: 681-017

Disc Spring DIN 2093B AM-251209 25mm OD x 12.2mm ID x .9mm TH Spring Steel Heat Treated Plain DIN 2093 25X12.2X0.9

Availability:
To view pricing and availability please either log in with a registered email address or register a free account.

Specifications

Part Number 681-017

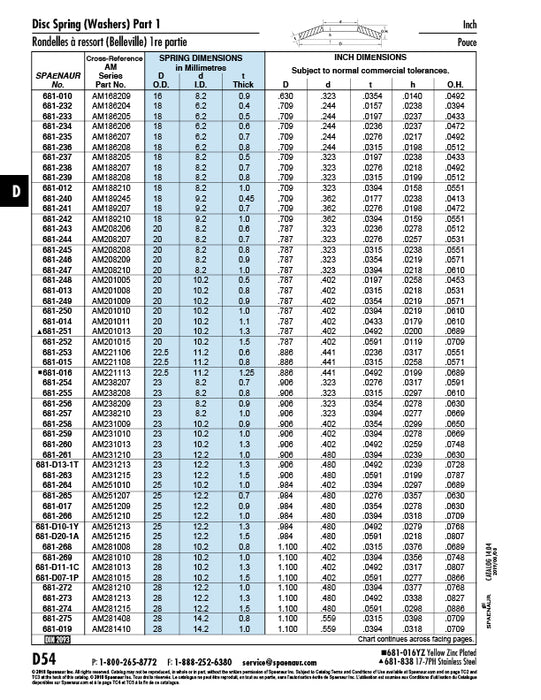

Catalog Page(s) D54,D55
System of Measurement Metric
ROHS Compliant [yes]
Certificate of Conformance Available [yes]
Vendor Series A-M™ Series
Vendor Series A-M™ Series
Washer Type Curved Non-Serrated
Compatible Hole Size 12 mm
Inside Diameter 12.2 mm
Outside Diameter 25 mm
Thickness 0.9 mm
Material Spring Steel
Finish Plain
Standard DIN 2093
Height 0.2102"
Overall Height 1.60 mm
