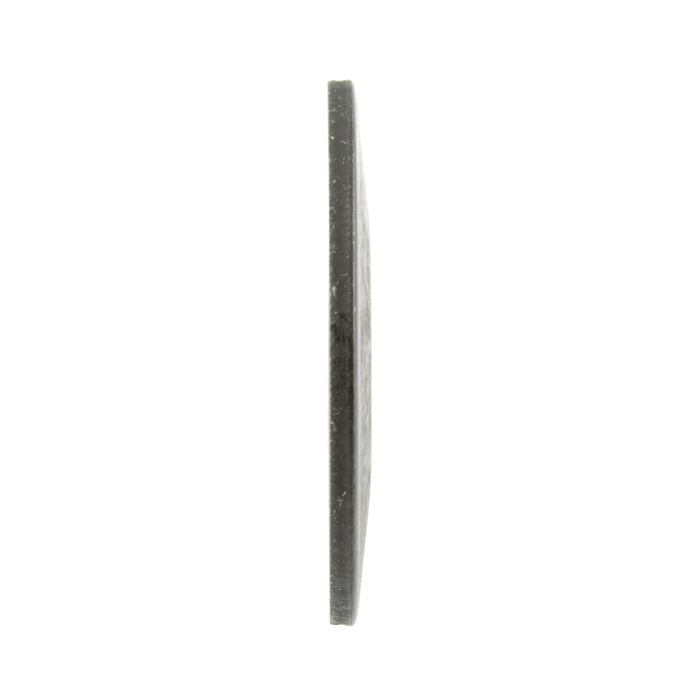

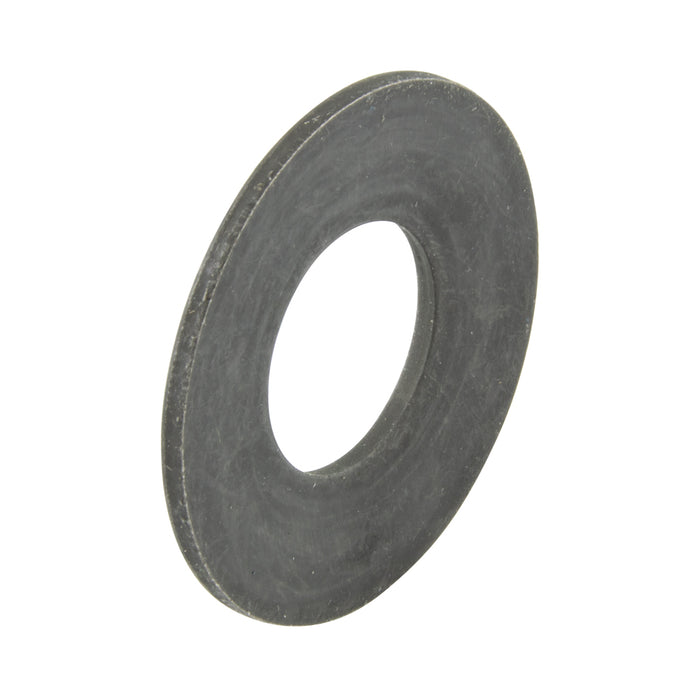

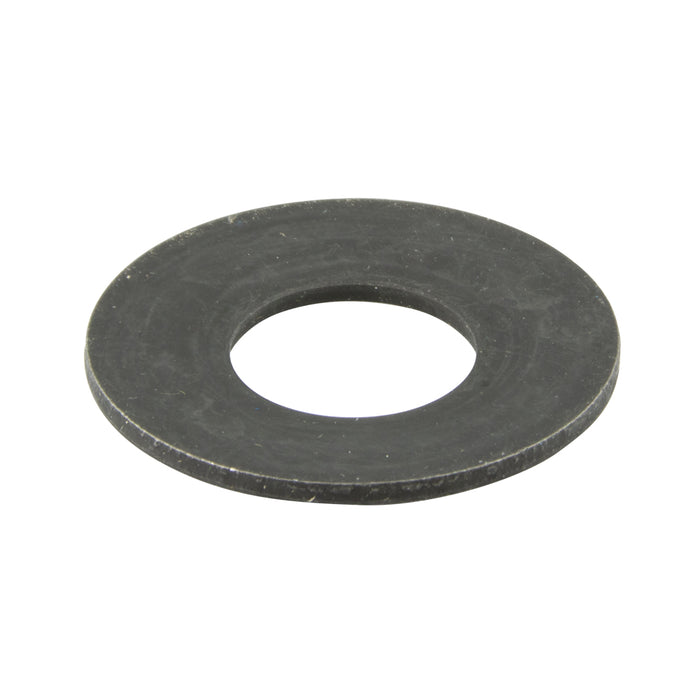

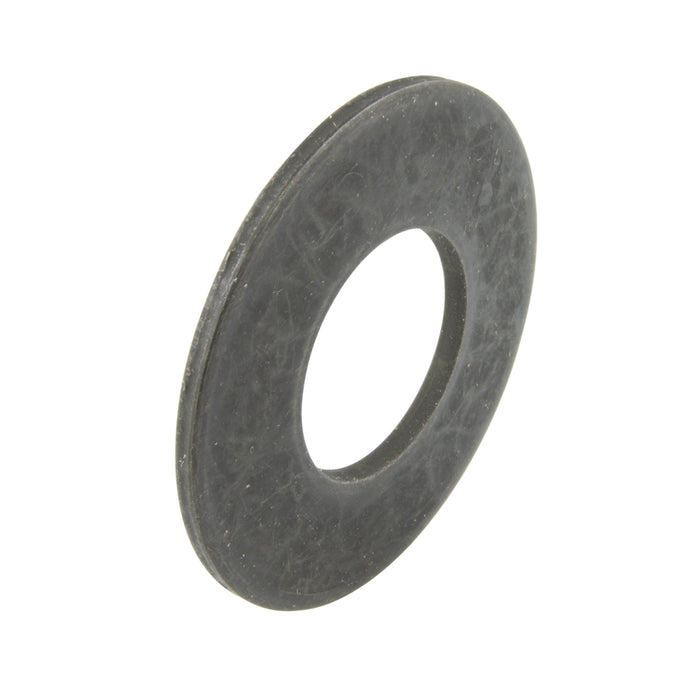

Disc Spring DIN 2093B AM-168206 16.0mm OD x 8.2mm ID x .6mm TH Chrome Vanadium Steel Self-Colour DIN 2093 16X8.2X0.6

Part Number: 681-009

Disc Spring DIN 2093B AM-168206 16.0mm OD x 8.2mm ID x .6mm TH Chrome Vanadium Steel Self-Colour DIN 2093 16X8.2X0.6

Availability:
To view pricing and availability please either log in with a registered email address or register a free account.

Specifications

Part Number 681-009

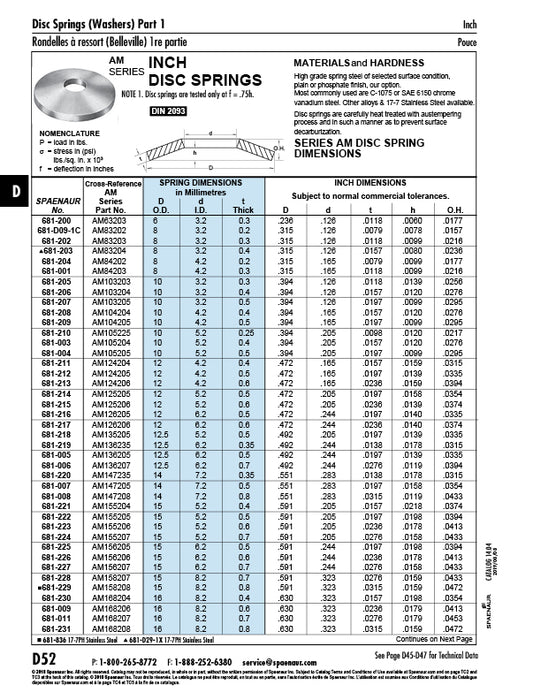

Catalog Page(s) D52,D53
System of Measurement Metric
Vendor Series A-M™ Series
Washer Type Curved Non-Serrated
Material Chrome Vanadium Steel
Finish Plain
Compatible Hole Size 7 mm
Inside Diameter 0.323";+0.006";8.2 mm;+0.152 mm
Outside Diameter 0.630";-0.007";16.0 mm;-0.178 mm
Thickness 0.0236";+0.0008";-0.0024";0.6 mm;+0.02 mm;-0.06 mm
Overall Height 0.0413"
Height 0.0119"
Standard DIN 2093
