Belleville Disc Spring, SP-231120, Bolt Size 3/8" .906" OD x .413" ID x .079" TH Spring Steel Heat Treated Plain

Part Number: 680-B18-1P

Legacy Part Number(s): 680-221

Belleville Disc Spring, SP-231120, Bolt Size 3/8" .906" OD x .413" ID x .079" TH Spring Steel Heat Treated Plain

Availability:
To view pricing and availability please either log in with a registered email address or register a free account.

Specifications

Part Number 680-B18-1P

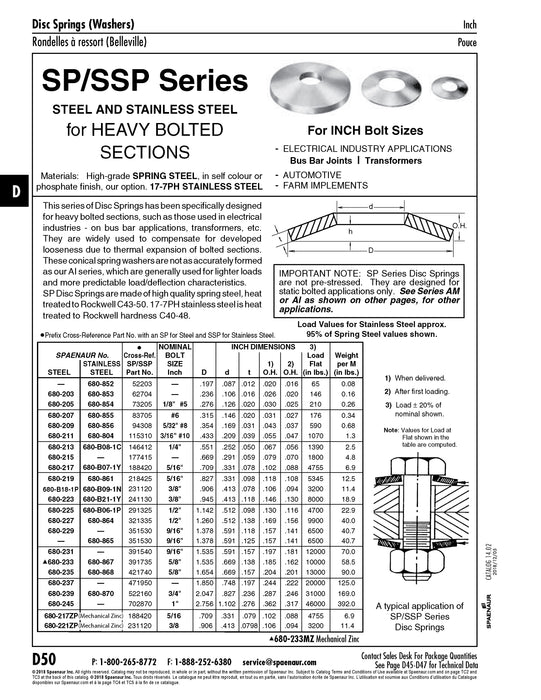

Catalog Page(s) D50
System of Measurement Imperial
ROHS Compliant [yes]
Certificate of Conformance Available [yes]
Legacy Part Number 680-221
Vendor Series SP/SSP Series
Washer Type Curved Non-Serrated
Material Spring Steel
Finish Plain
Compatible Hole Size 3/8"
Inside Diameter 0.413"
Outside Diameter 0.906"
Thickness 0.078"
Overall Height 0.106"
Height 0.1117"
Hardness RC43-RC50
