Disc Spring, SAI Series 1.750" OD x .880" ID x .085" THK 17/7 PH Stainless Steel 7/8" Bolt DIA by Spaenaur Inc.

Part Number: 680-B16-1X

Legacy Part Number(s): 680-847

Disc Spring, SAI Series 1.750" OD x .880" ID x .085" THK 17/7 PH Stainless Steel 7/8" Bolt DIA

Availability:
To view pricing and availability please either log in with a registered email address or register a free account.

Specifications

Part Number 680-B16-1X

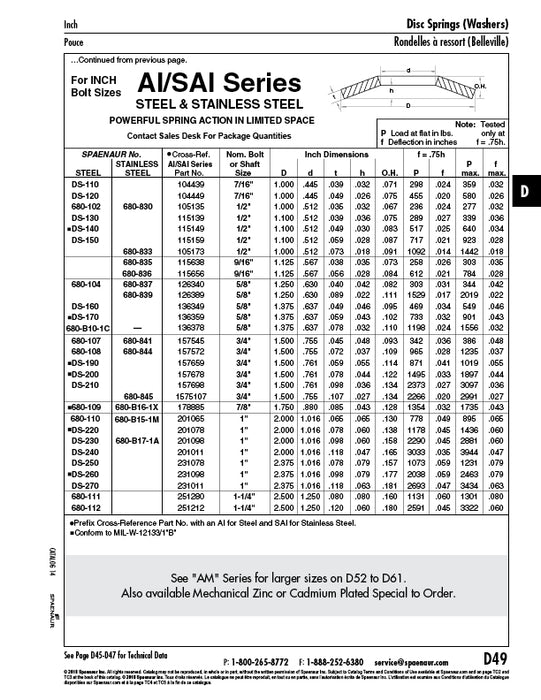

Catalog Page(s) D49
System of Measurement Imperial
ROHS Compliant [yes]
Certificate of Conformance Available [yes]
Legacy Part Number 680-847
Vendor Series AI/SAI Series
Washer Type Curved Non-Serrated
Material Stainless Steel
Compatible Hole Size 7/8"
Inside Diameter 0.880"
Outside Diameter 1.750"
Thickness 0.085"
Overall Height 0.128"
Height 0.0495"
Hardness Min HRC40
