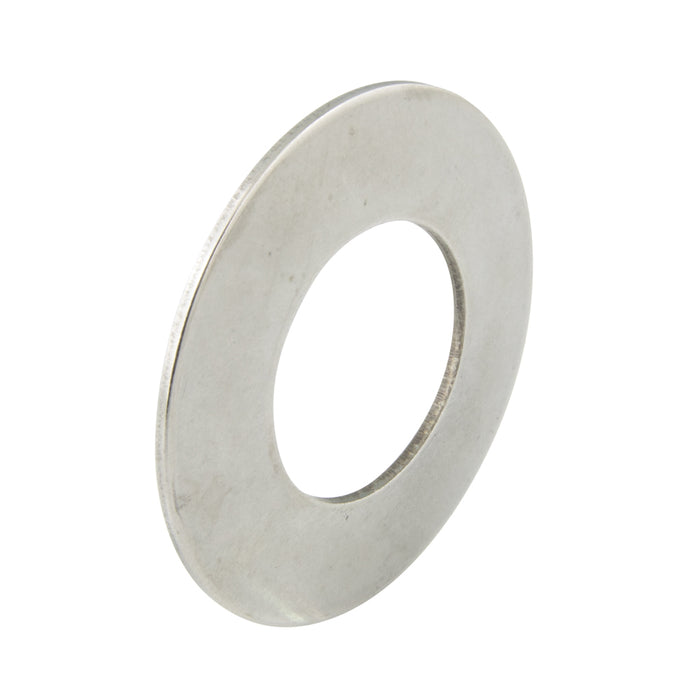

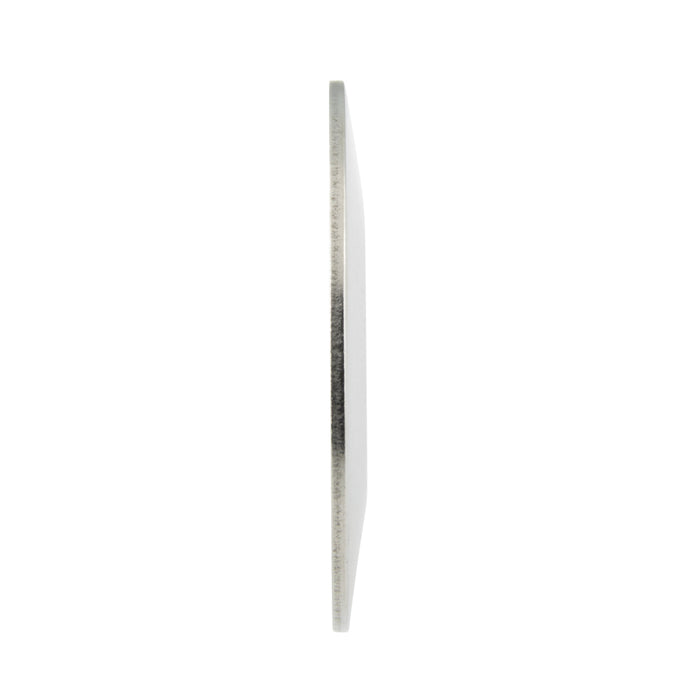

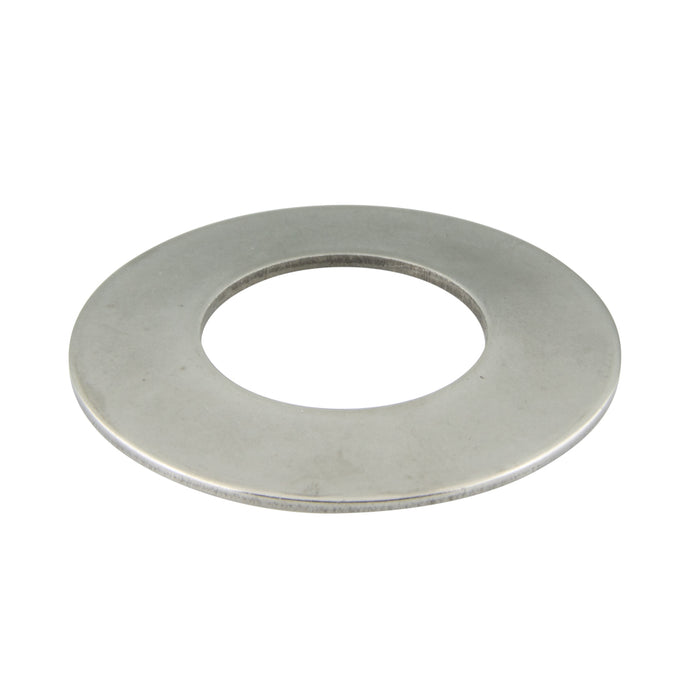

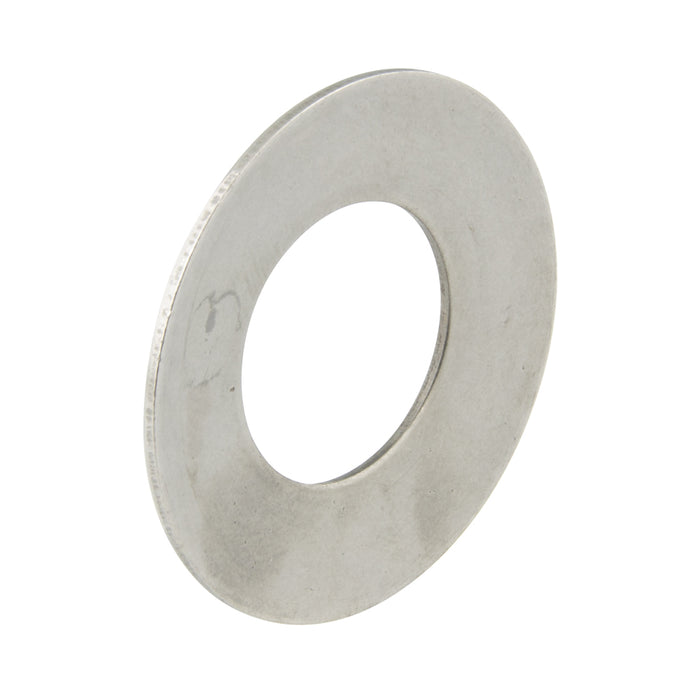

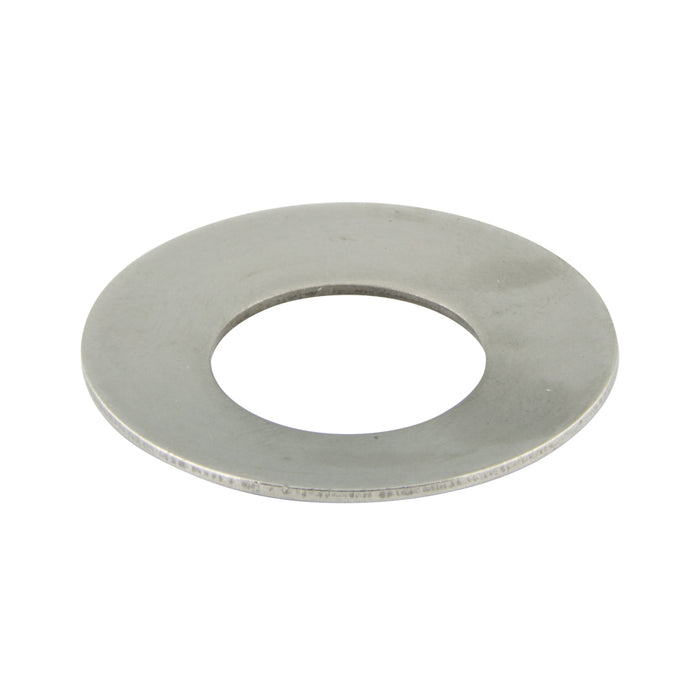

Disc Spring, SAI Series .312" OD x .156" ID x .017" THK 17/7 PH Stainless Steel Plain #6 Bolt by Spaenaur Inc.

Part Number: 680-B13-1K

Legacy Part Number(s): 680-811

Disc Spring, SAI Series .312" OD x .156" ID x .017" THK 17/7 PH Stainless Steel Plain #6 Bolt

Availability:
To view pricing and availability please either log in with a registered email address or register a free account.

Specifications

Part Number 680-B13-1K

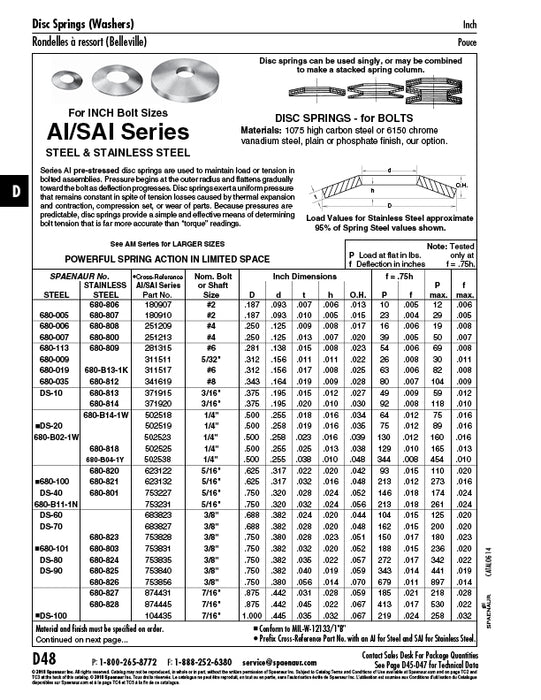

Catalog Page(s) D48
System of Measurement Imperial
ROHS Compliant [yes]
Certificate of Conformance Available [yes]
Legacy Part Number 680-811
Vendor Series AI/SAI Series
Washer Type Curved Non-Serrated
Material Stainless Steel
Compatible Hole Size #6
Inside Diameter 0.156";+0.007"
Outside Diameter 0.312";-0.008"
Thickness 0.017";±0.002"
Overall Height 0.025";+0.0045";-0.0025"
Height 0.0159"
Hardness Min HRC40
