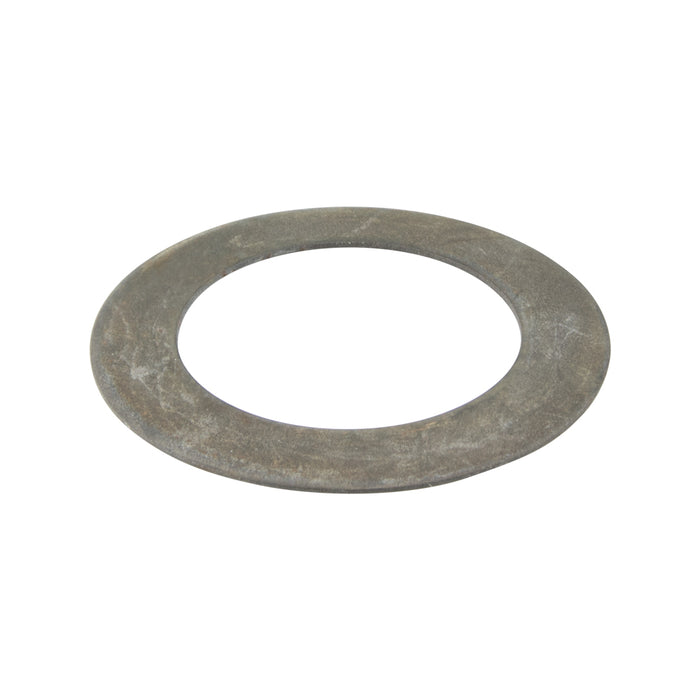

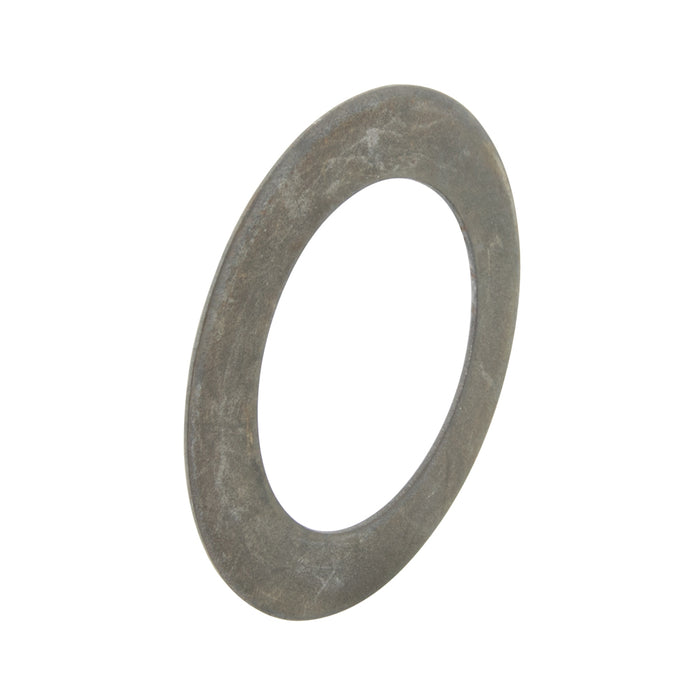

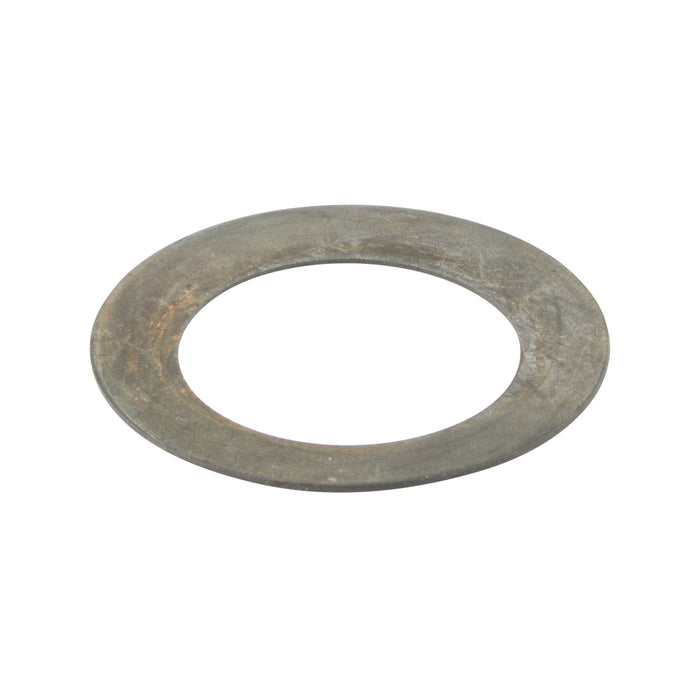

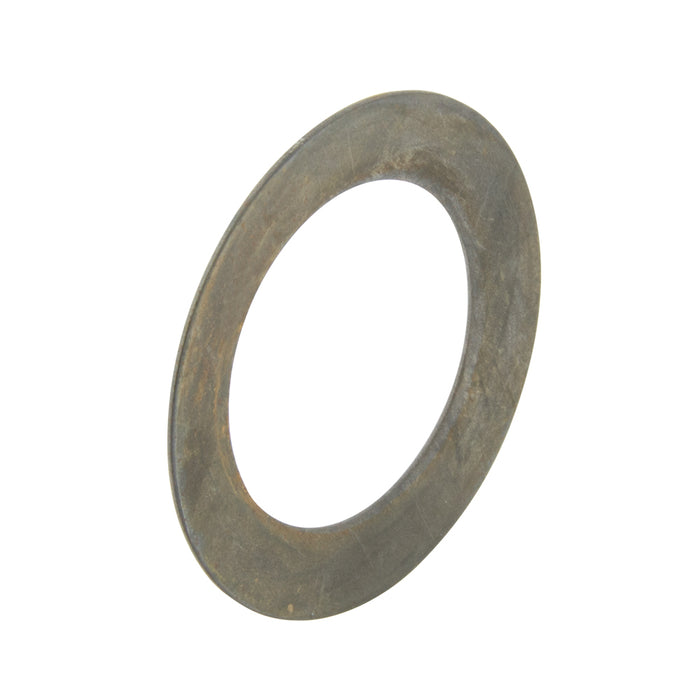

Ak Series Disc Springs for Use with Ball Bearings .858" OD x .484" ID x .0138" THK C1075 Steel Plain

Part Number: 680-B12-1T

Legacy Part Number(s): 680-258

Ak Series Disc Springs for Use with Ball Bearings .858" OD x .484" ID x .0138" THK C1075 Steel Plain

Availability:
To view pricing and availability please either log in with a registered email address or register a free account.

Specifications

Part Number 680-B12-1T

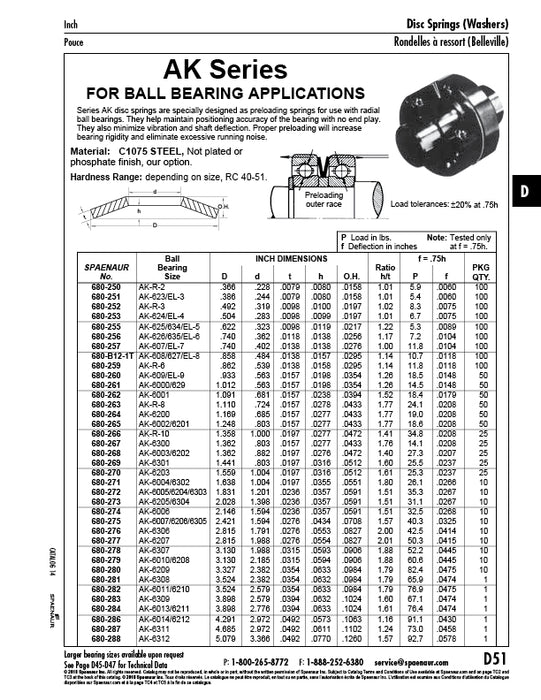

Catalog Page(s) D51
System of Measurement Imperial
ROHS Compliant [yes]
Certificate of Conformance Available [yes]
Legacy Part Number 680-258
Vendor Series A-K™ Series
Washer Type Belleville
Material Steel
Finish Plain
Inside Diameter 0.484";+0.009";12.3 mm;+0.229 mm
Outside Diameter 0.858";-0.010";21.8 mm;-0.254 mm
Thickness 0.014";0.0025";0.35 mm;-0.025 mm
Overall Height 0.030";+0.004";-0.002";0.75 mm;+0.10 mm;-0.05 mm
Height 0.0278"
Hardness RC40-RC51
