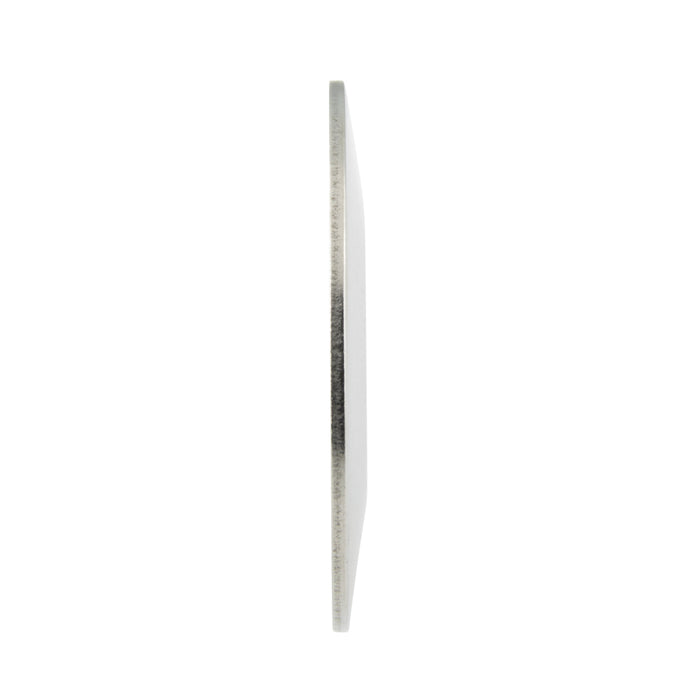

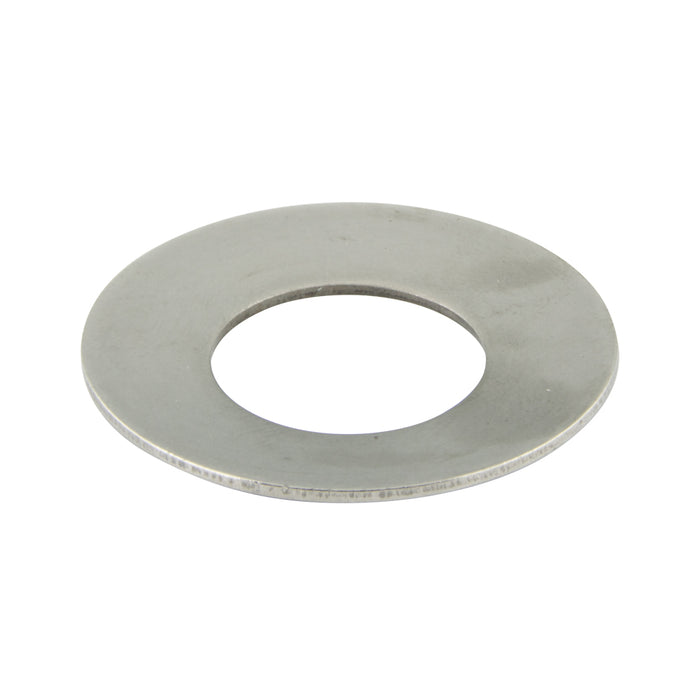

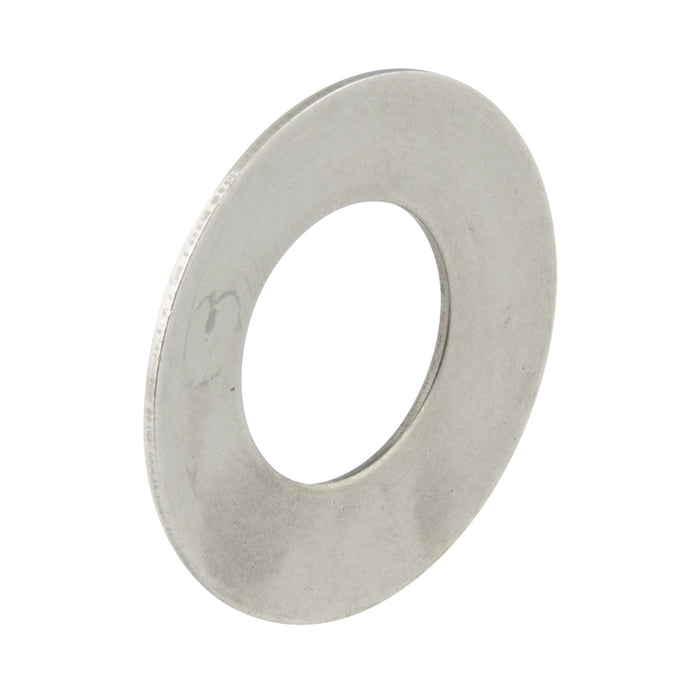

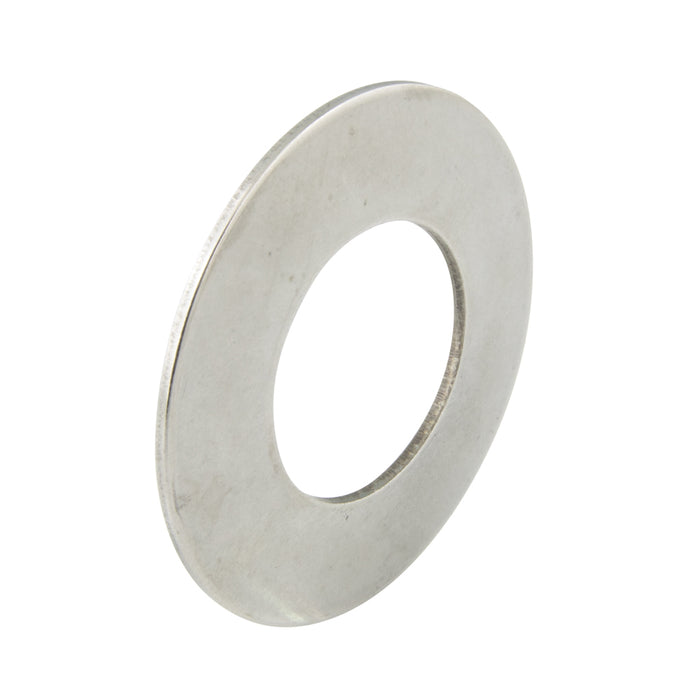

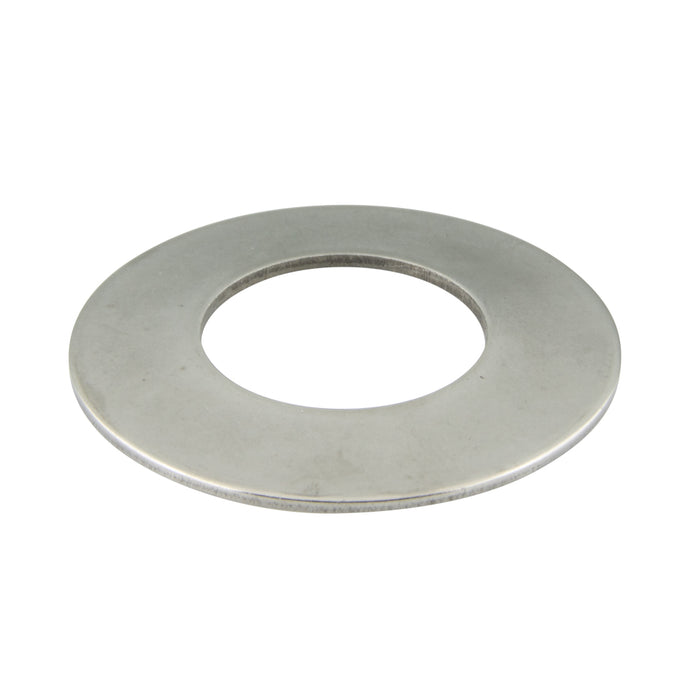

Belleville Disc Spring 1/4" Bolt DIA (.551" OD x .252" ID x .047" THK) 17/7 PH Stainless Steel by Spaenaur Inc.

Part Number: 680-B08-1C

Legacy Part Number(s): 680-805

Belleville Disc Spring 1/4" Bolt DIA (.551" OD x .252" ID x .047" THK) 17/7 PH Stainless Steel

Availability:
To view pricing and availability please either log in with a registered email address or register a free account.

Specifications

Part Number 680-B08-1C

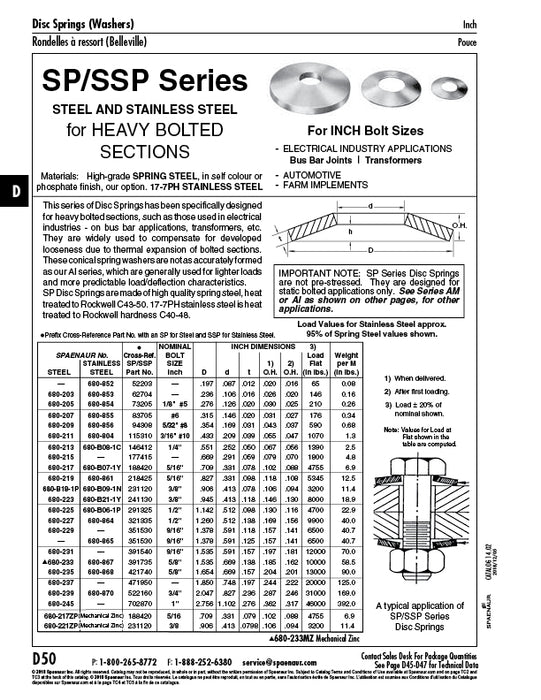

Catalog Page(s) D50
System of Measurement Imperial
ROHS Compliant [yes]
Certificate of Conformance Available [yes]
Legacy Part Number 680-805
Vendor Series SP/SSP Series
Washer Type Curved Non-Serrated
Material Stainless Steel
Compatible Hole Size 1/4"
Inside Diameter 0.252"
Outside Diameter 0.551"
Thickness 0.050"
Overall Height 0.067"
Height 0.1092"
Hardness RC40-RC48
