Part Number: 680-818

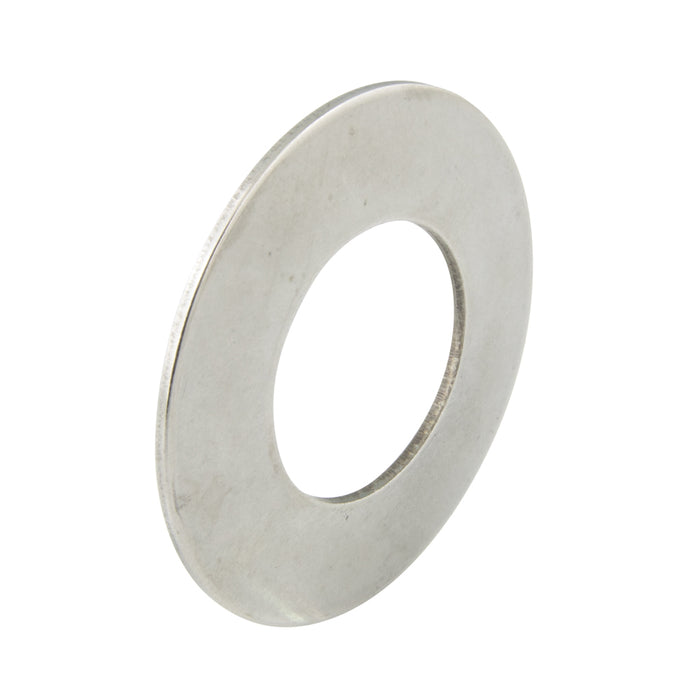

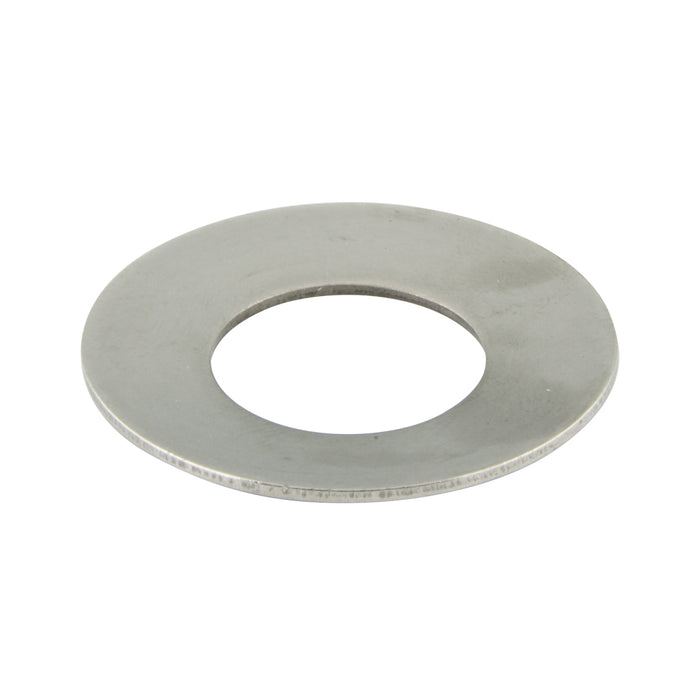

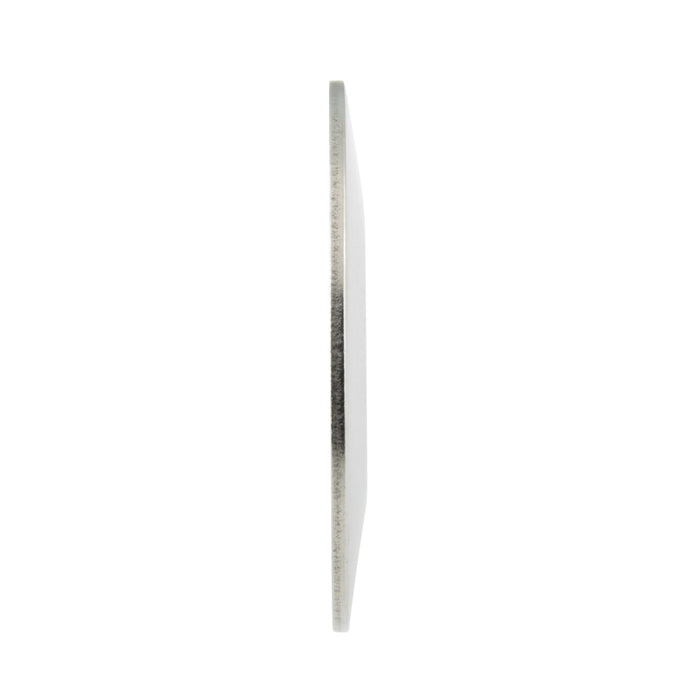

SAI Series Disc Springs .500" OD x .255" ID x .025" THK 17/7 PH Stainless Steel Plain 1/4" Bolt DIA

Availability:
To view pricing and availability please either log in with a registered email address or register a free account.

Specifications

Part Number 680-818

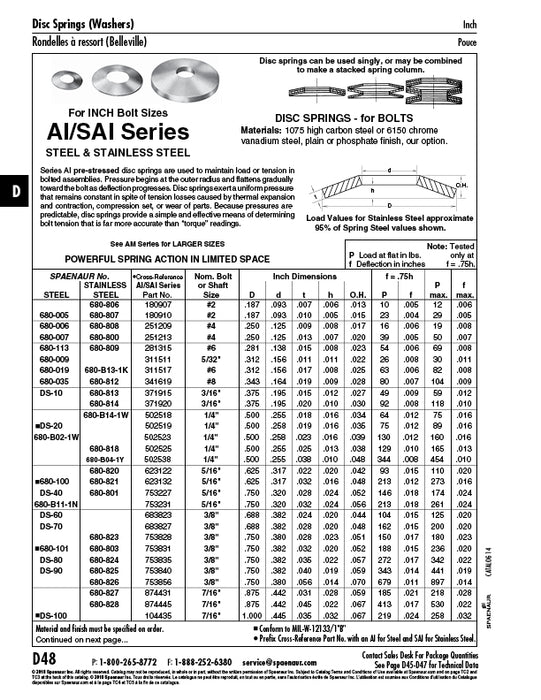

Catalog Page(s) D48
System of Measurement Imperial
Vendor Series AI/SAI Series
Washer Type Curved Non-Serrated
Material Stainless Steel
Compatible Hole Size 1/4"
Inside Diameter 0.255";+0.008"
Outside Diameter 0.500";-0.009"
Thickness 0.025";±0.003"
Overall Height 0.038";+0.0045";-0.0025"
Height 0.0099"
Hardness Min HRC40
