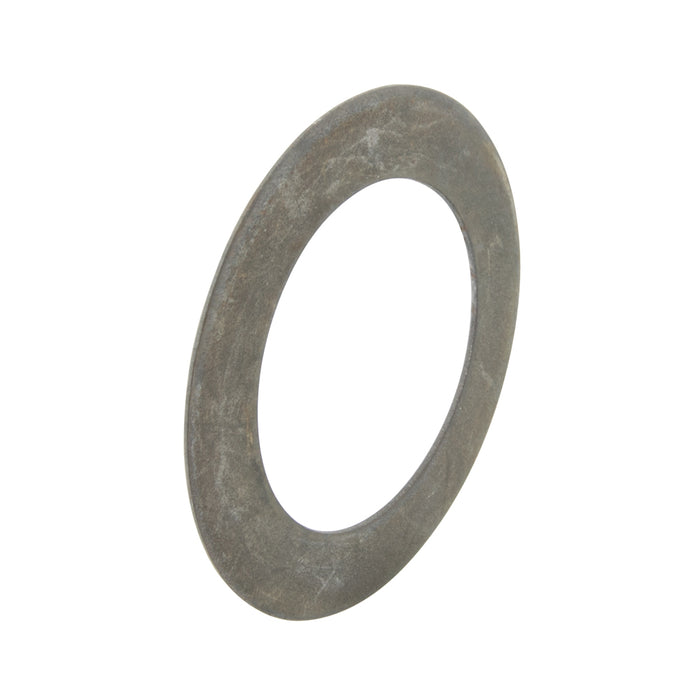

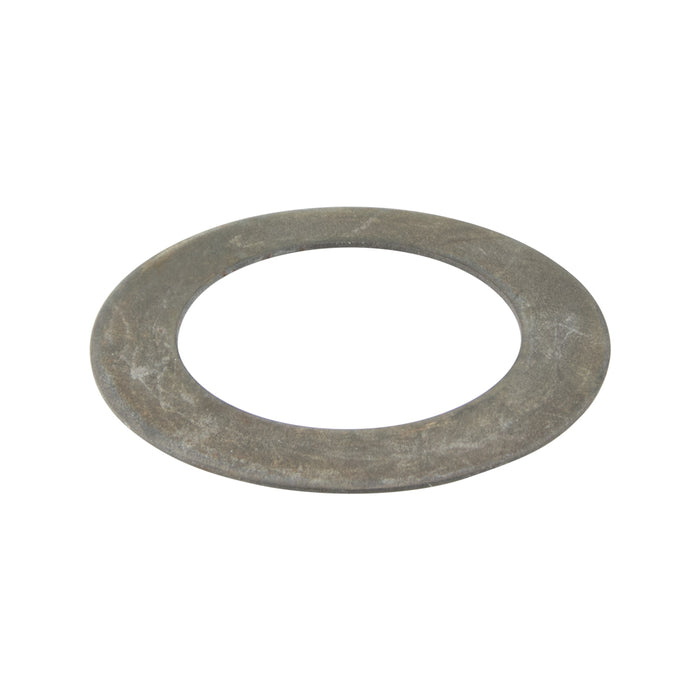

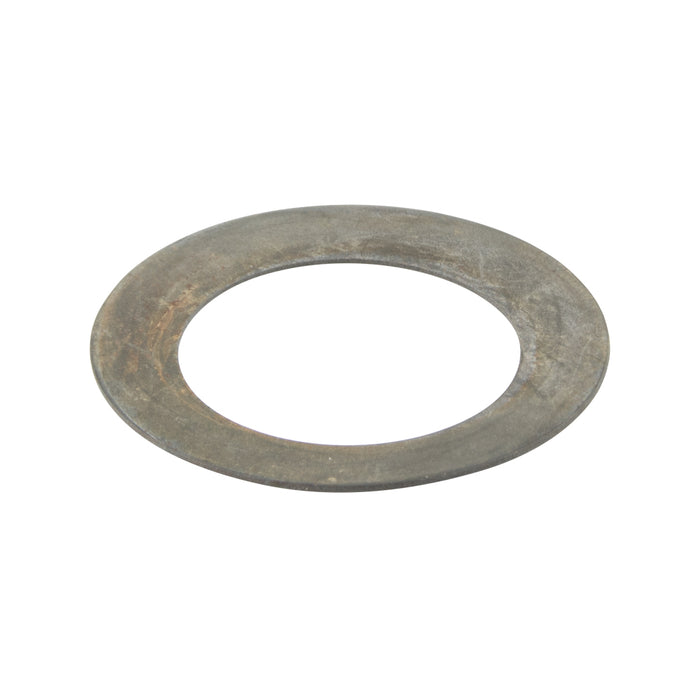

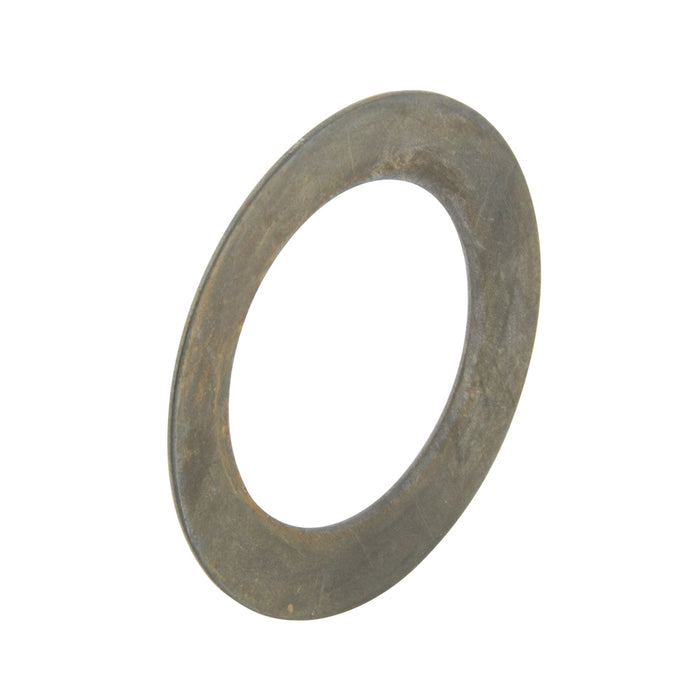

Ak Series Disc Springs for Use with Ball Bearings 3.524" OD x 2.579" ID x .0354" THK C1075 Steel Plain by Spaenaur Inc.

Part Number: 680-282

Ak Series Disc Springs for Use with Ball Bearings 3.524" OD x 2.579" ID x .0354" THK C1075 Steel Plain

Availability:
To view pricing and availability please either log in with a registered email address or register a free account.

Specifications

Part Number 680-282

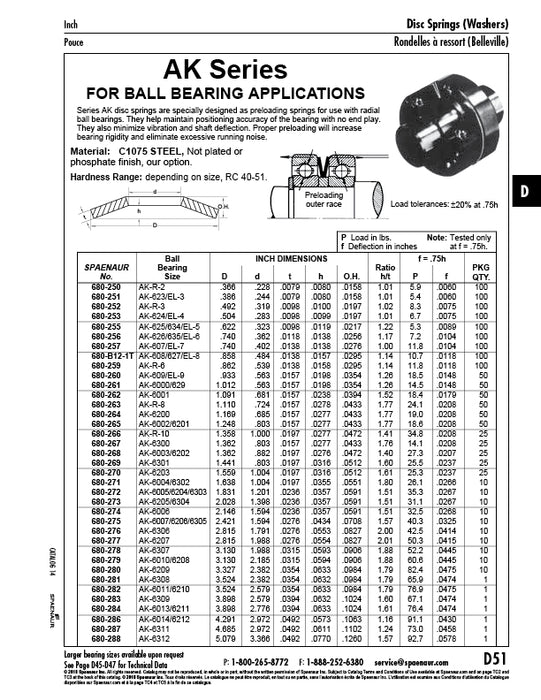

Catalog Page(s) D51
System of Measurement Imperial
Vendor Series A-K™ Series
Washer Type Belleville
Material Steel
Finish Plain
Inside Diameter 2.579";+0.014";65.5 mm;+0.356 mm
Outside Diameter 3.524";-0.016";89.5 mm;-0.406 mm
Thickness 0.035";0.0025";0.90 mm;0.051 mm
Overall Height 0.098";+0.012";-0.004";2.50 mm;+0.30 mm;-0.10 mm
Height 0.0238"
Hardness RC40-RC51
