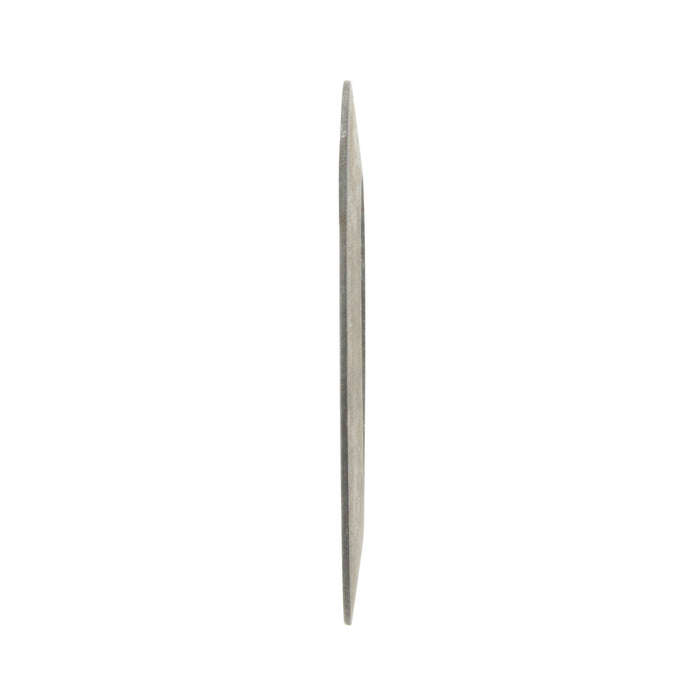

Ak Series Disc Springs for Use with Ball Bearings 2.815 OD x 1.988 ID x .0276 THK C1075 Steel Plain by Spaenaur Inc.

Part Number: 680-277

Ak Series Disc Springs for Use with Ball Bearings 2.815 OD x 1.988 ID x .0276 THK C1075 Steel Plain

Availability:
To view pricing and availability please either log in with a registered email address or register a free account.

Specifications

Part Number 680-277

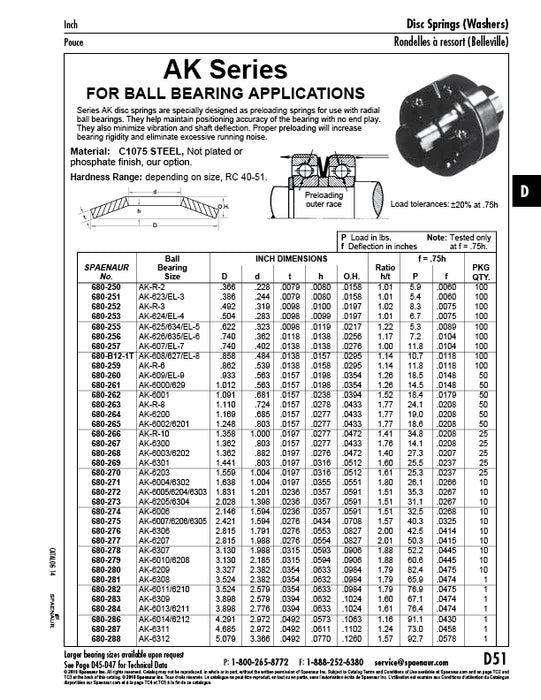

Catalog Page(s) D51
System of Measurement Imperial
Vendor Series A-K™ Series
Washer Type Belleville
Material Steel
Finish Plain
Inside Diameter 1.988";+0.014";50.5 mm;+0.305 mm
Outside Diameter 2.815";-0.014";71.5 mm;-0.356 mm
Thickness 0.028";0.0025";0.70 mm;0.051 mm
Overall Height 0.083";+0.012";-0.004";2.10 mm;+0.30 mm;-0.10 mm
Height 0.0238"
Hardness RC40-RC51
