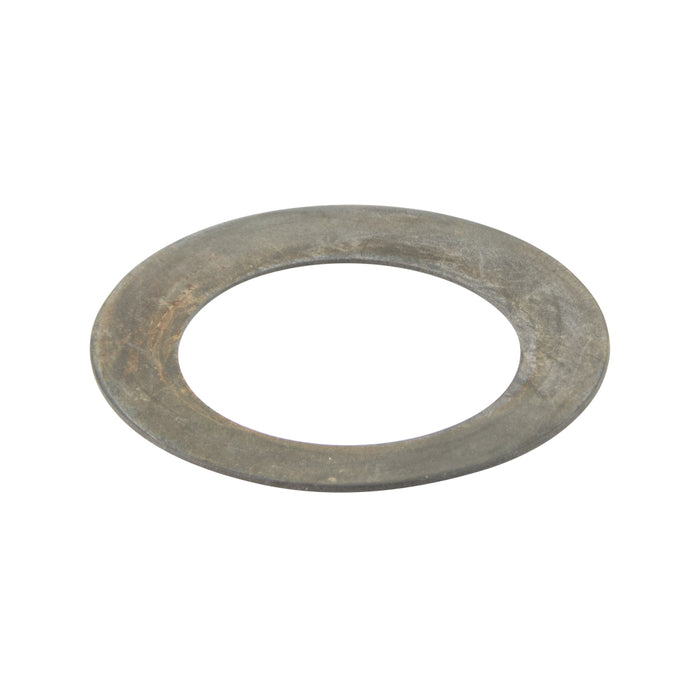

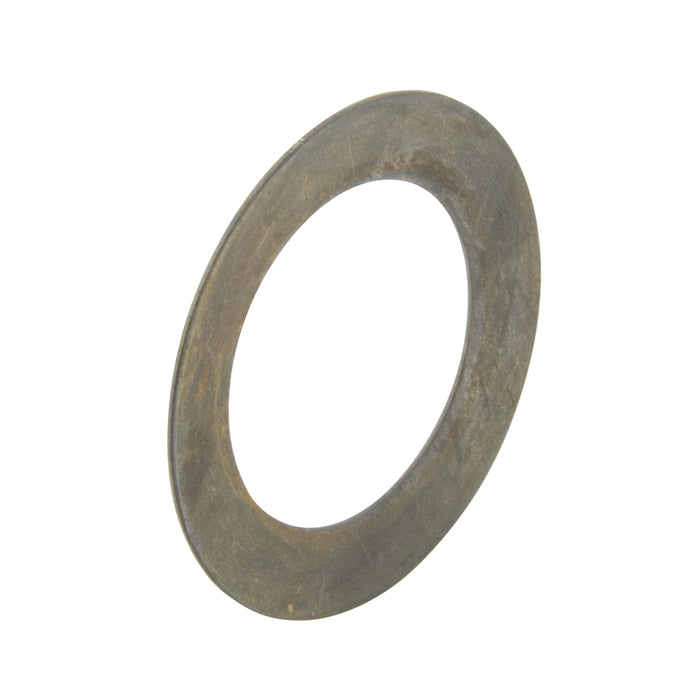

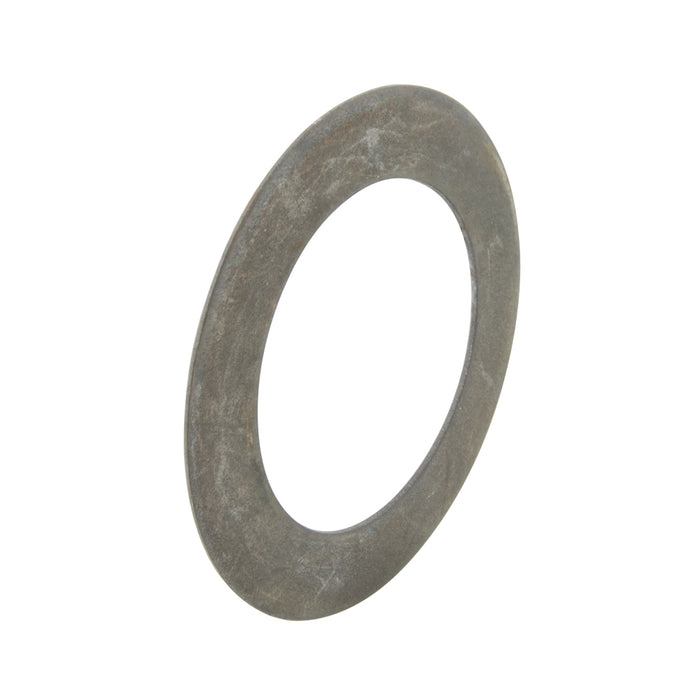

Ak Series Disc Springs for Use with Ball Bearings 2.421 OD x 1.594 x .0276 THK C1075 Steel Plain

Part Number: 680-275

Ak Series Disc Springs for Use with Ball Bearings 2.421 OD x 1.594 x .0276 THK C1075 Steel Plain

Availability:
To view pricing and availability please either log in with a registered email address or register a free account.

Specifications

Part Number 680-275
Catalog Page(s) D51
System of Measurement Imperial
Vendor Series A-K™ Series
Washer Type Belleville
Material Steel
Finish Plain
Inside Diameter 1.594";+0.012";40.5 mm;+0.305 mm
Outside Diameter 2.421";-0.014";61.5 mm;-0.356 mm
Thickness 0.043";0.0025";0.70 mm;0.051 mm
Overall Height 0.071";+0.006";-0.003";1.80 mm;+0.15 mm;-0.08 mm
Height 0.0517"
Hardness RC40-RC51
