Conical Washer, DIN 6319D M12 Case Hardened Steel DIN 6319D/ST M12 by Spaenaur Inc.

Part Number: 657-334

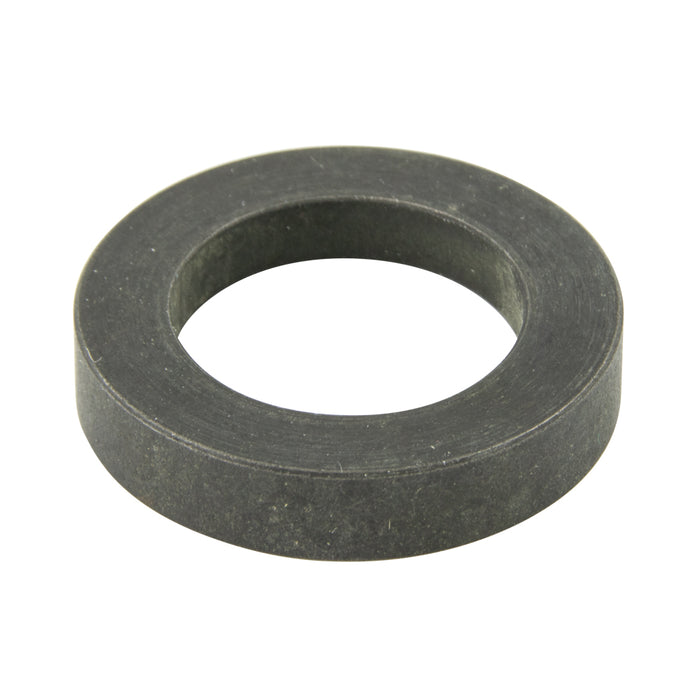

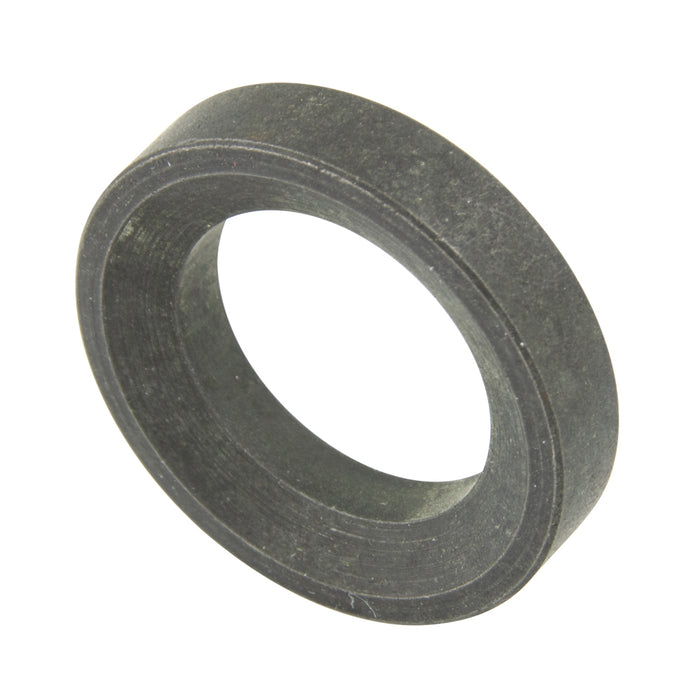

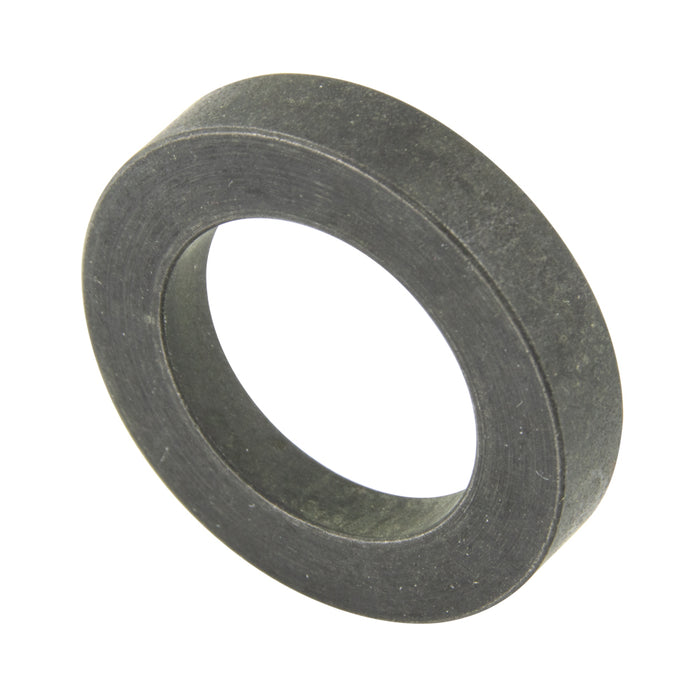

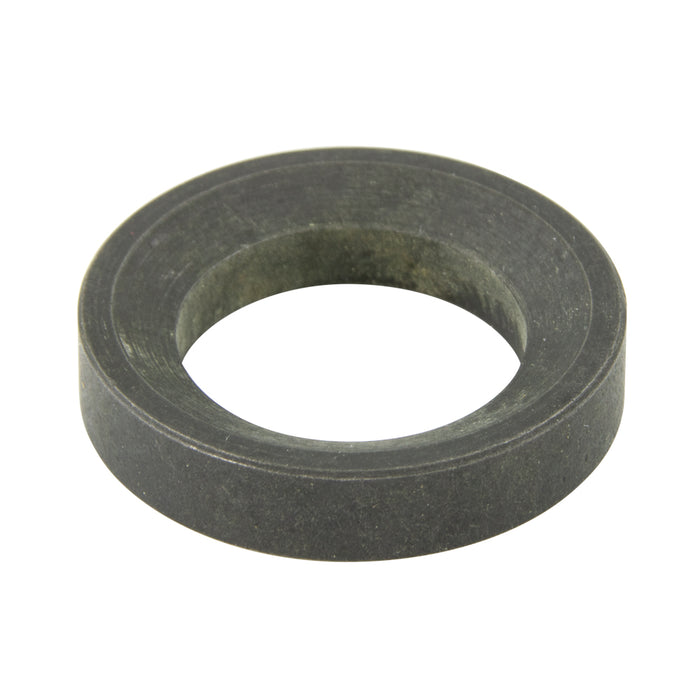

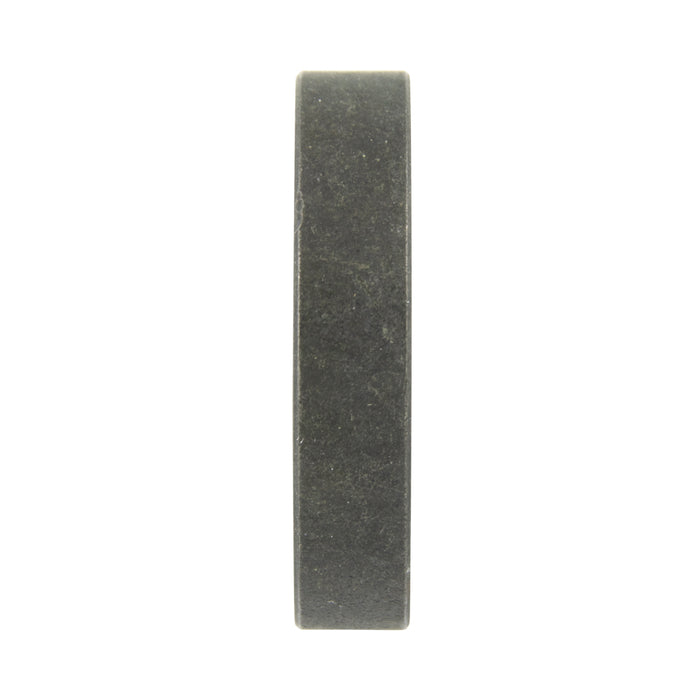

Conical Washer, DIN 6319D M12 Case Hardened Steel DIN 6319D/ST M12

Availability:
To view pricing and availability please either log in with a registered email address or register a free account.

Specifications

Part Number 657-334

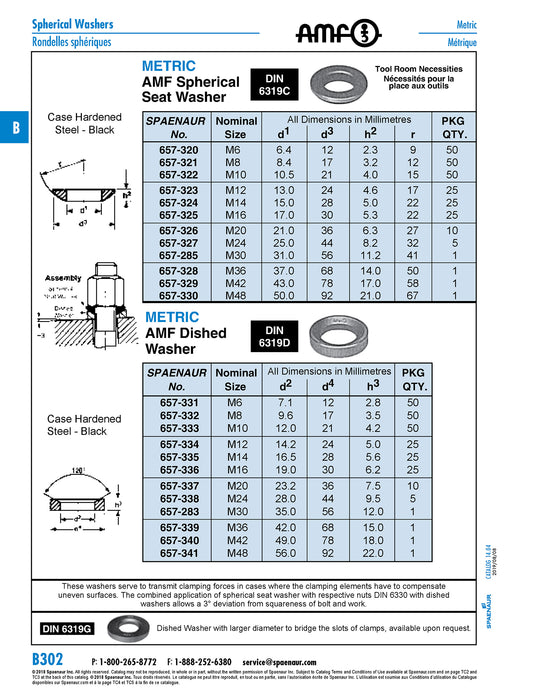

Catalog Page(s) B302
System of Measurement Metric
ROHS Compliant [yes]
Certificate of Conformance Available [yes]
Compatible Bolt Size M12
Inside Diameter 14.2 mm
Outside Diameter 24 mm
Thickness 5.0 mm
Material Steel
Finish Black Oxide
