Flat Washer, for Bolt Size M36, 37.0 mm Min ID x 66.0 mm Max OD x 5.0 mm THK, Steel Plain, DIN 125B by Spaenaur Inc.

*Representative images - please refer to the product specifications for exact product information

Part Number: 657-136

Flat Washer, for Bolt Size M36, 37.0 mm Min ID x 66.0 mm Max OD x 5.0 mm THK, Steel Plain, DIN 125B

Availability:
To view pricing and availability please either log in with a registered email address or register a free account.

Specifications

Part Number 657-136

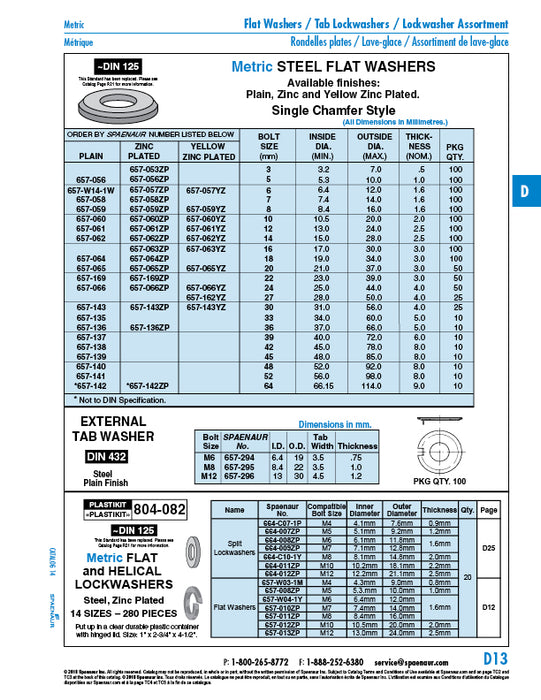

Catalog Page(s) D13
System of Measurement Metric
ROHS Compliant [yes]
Certificate of Conformance Available [yes]
Material Steel
Finish Plain
Compatible Bolt Size M36
Inside Diameter 37.0 mm
Outside Diameter 66.0 mm
Thickness 5.0 mm
Standard DIN 125B
