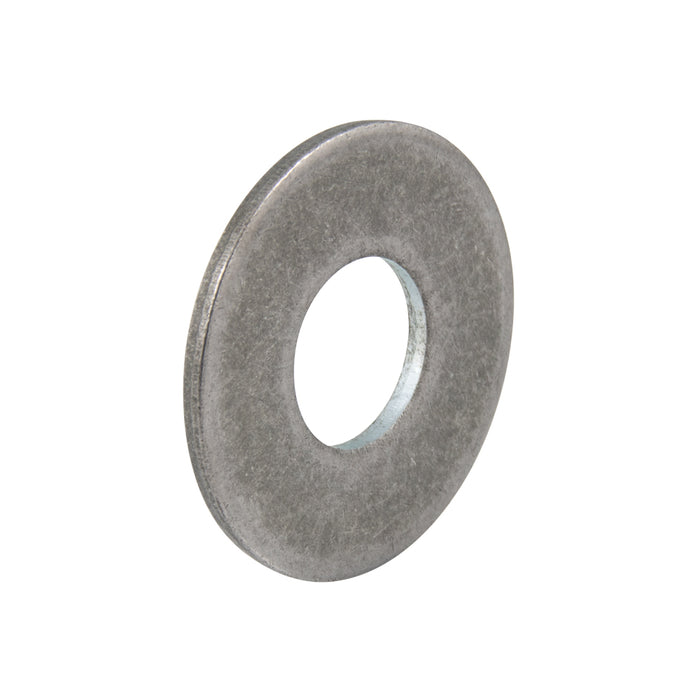

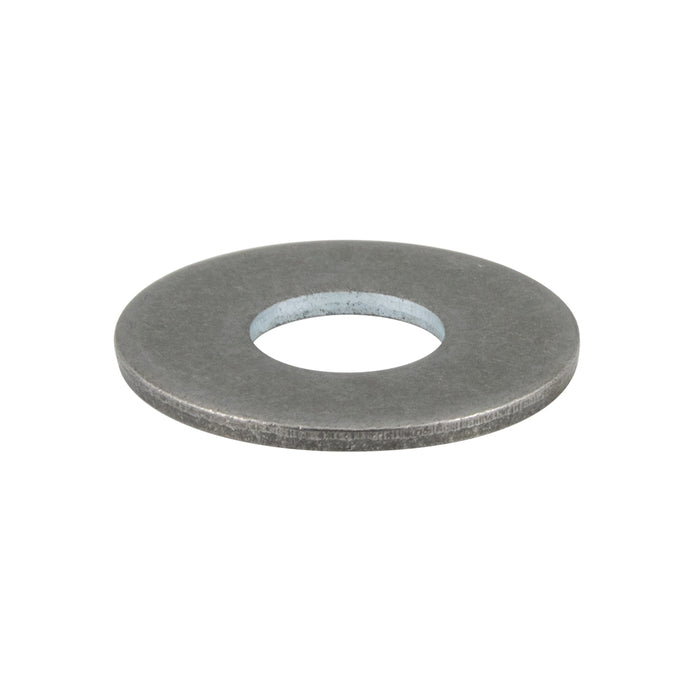

Flat Washer with Reduced OD, for Bolt Size M16, 17 mm Min ID x 28 mm Max OD x 2.5 mm THK, Steel Plain, DIN 433 by Spaenaur Inc.

*Representative images - please refer to the product specifications for exact product information

Part Number: 657-093

Flat Washer with Reduced OD, for Bolt Size M16, 17 mm Min ID x 28 mm Max OD x 2.5 mm THK, Steel Plain, DIN 433

Availability:
To view pricing and availability please either log in with a registered email address or register a free account.

Specifications

Part Number 657-093

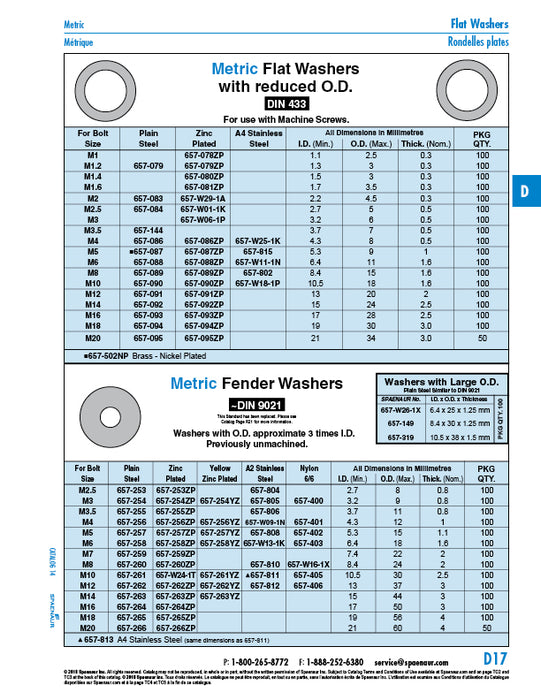

Catalog Page(s) D17
System of Measurement Metric
ROHS Compliant [yes]
Certificate of Conformance Available [yes]
Material Steel
Finish Plain
Compatible Bolt Size M16
Inside Diameter 17 mm
Outside Diameter 28 mm
Thickness 2.5 mm
Standard DIN 433
